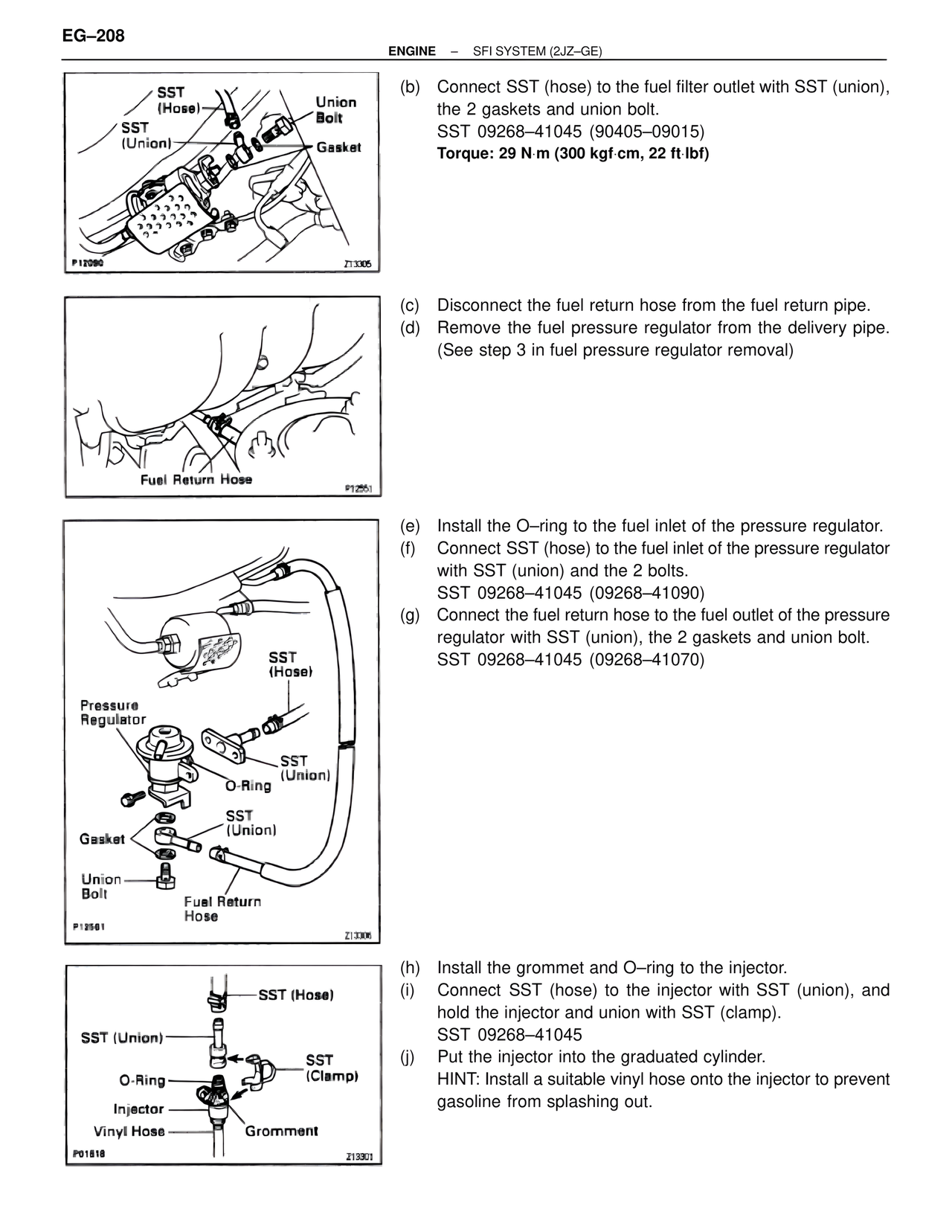

EG–208
ENGINE – SFI SYSTEM (2JZ–GE)
SST (Hose)
Union Bolt
SST (Union)
Gasket
P12090
Z13305
(b) Connect SST (hose) to the fuel filter outlet with SST (union), the 2 gaskets and union bolt.
SST 09268–41045 (90405–09015)
Torque: 29 N·m (300 kgf·cm, 22 ft·lbf)
Fuel Return Hose
P12561
(c) Disconnect the fuel return hose from the fuel return pipe.
(d) Remove the fuel pressure regulator from the delivery pipe.
(See step 3 in fuel pressure regulator removal)
SST (Hose)
Pressure Regulator
SST (Union)
O-Ring
SST (Union)
Gasket
Union Bolt
Fuel Return Hose
P12561
Z13306
(e) Install the O–ring to the fuel inlet of the pressure regulator.
(f) Connect SST (hose) to the fuel inlet of the pressure regulator with SST (union) and the 2 bolts.
SST 09268–41045 (09268–41090)
(g) Connect the fuel return hose to the fuel outlet of the pressure regulator with SST (union), the 2 gaskets and union bolt.
SST 09268–41045 (09268–41070)
SST (Hose)
SST (Union)
SST (Clamp)
O-Ring
Injector
Vinyl Hose
Gromment
P01818
Z13301
(h) Install the grommet and O–ring to the injector.
(i) Connect SST (hose) to the injector with SST (union), and hold the injector and union with SST (clamp).
SST 09268–41045
(j) Put the injector into the graduated cylinder.
HINT: Install a suitable vinyl hose onto the injector to prevent gasoline from splashing out.
