+B
FP
SST
DLC1
P11290

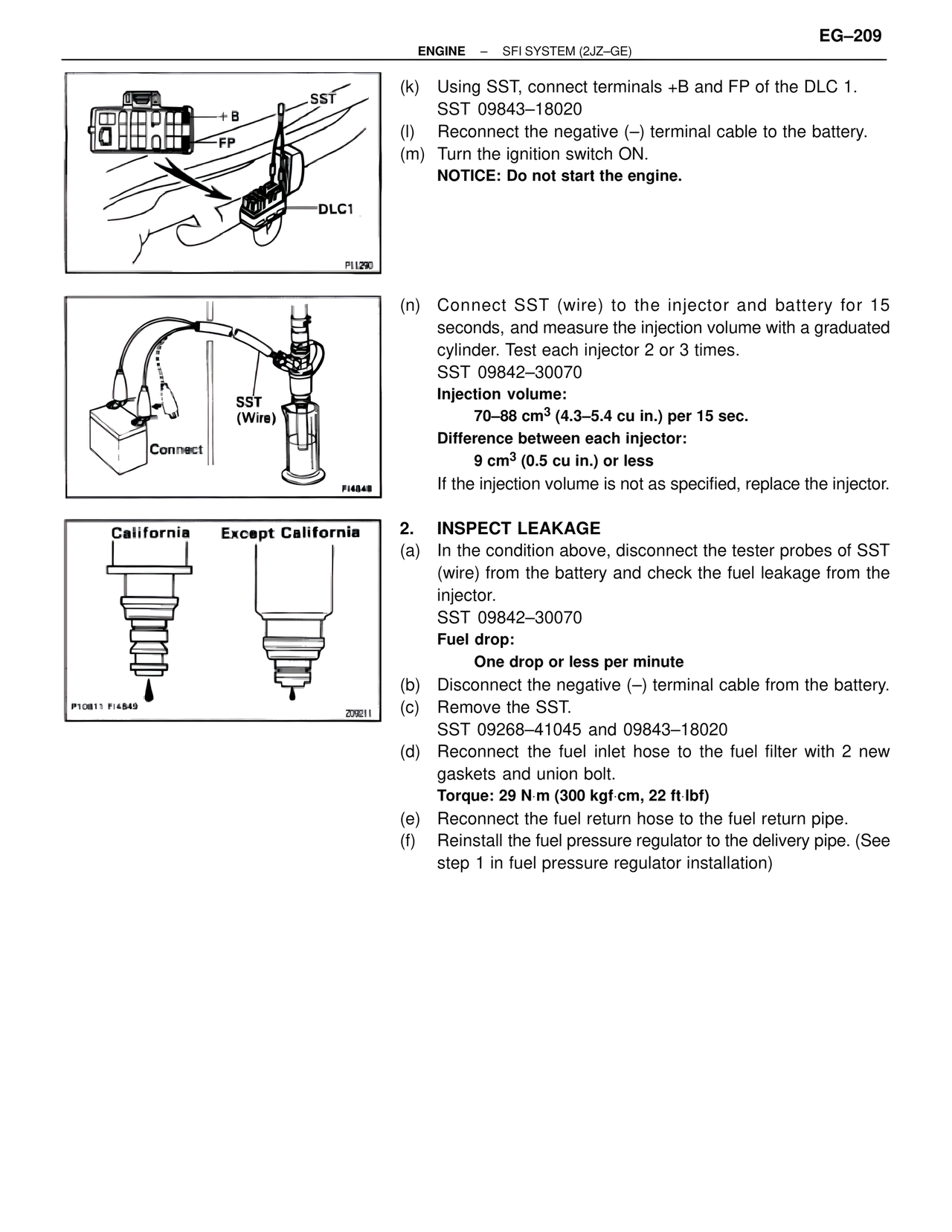

(k) Using SST, connect terminals +B and FP of the DLC 1.
SST 09843–18020
(l) Reconnect the negative (–) terminal cable to the battery.
(m) Turn the ignition switch ON.
NOTICE: Do not start the engine.
SST
(Wire)
Connect
FI4848
(n) Connect SST (wire) to the injector and battery for 15
seconds, and measure the injection volume with a graduated
cylinder. Test each injector 2 or 3 times.
SST 09842–30070
Injection volume:
70–88 cm3 (4.3–5.4 cu in.) per 15 sec.
Difference between each injector:
9 cm3 (0.5 cu in.) or less
If the injection volume is not as specified, replace the injector.
California Except California
P10811 FI4849
209211
2. INSPECT LEAKAGE
(a) In the condition above, disconnect the tester probes of SST
(wire) from the battery and check the fuel leakage from the
injector.
SST 09842–30070
Fuel drop:
One drop or less per minute
(b) Disconnect the negative (–) terminal cable from the battery.
(c) Remove the SST.
SST 09268–41045 and 09843–18020
(d) Reconnect the fuel inlet hose to the fuel filter with 2 new
gaskets and union bolt.
Torque: 29 N·m (300 kgf·cm, 22 ft·lbf)
(e) Reconnect the fuel return hose to the fuel return pipe.
(f) Reinstall the fuel pressure regulator to the delivery pipe. (See
step 1 in fuel pressure regulator installation)
