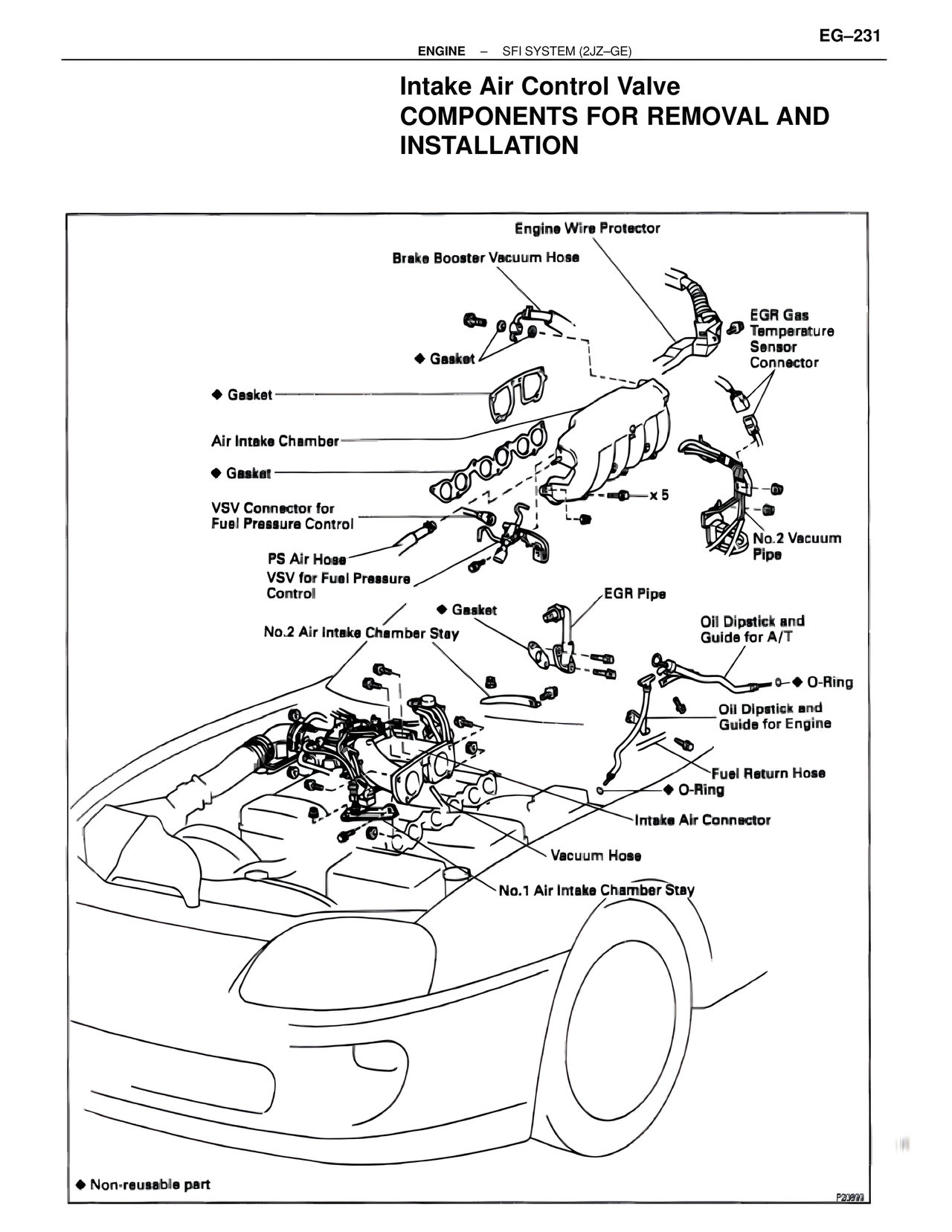

ENGINE – SFI SYSTEM (2JZ-GE)
EG–231
Intake Air Control Valve
COMPONENTS FOR REMOVAL AND
INSTALLATION
Engine Wire Protector
Brake Booster Vacuum Hose
EGR Gas Temperature Sensor Connector
♦ Gasket
♦ Gasket
Air Intake Chamber
♦ Gasket
VSV Connector for Fuel Pressure Control
PS Air Hose
VSV for Fuel Pressure Control
♦ Gasket
No.2 Air Intake Chamber Stay
EGR Pipe
No.2 Vacuum Pipe
x 5
Oil Dipstick and Guide for A/T
O– ♦ O-Ring
Oil Dipstick and Guide for Engine
Fuel Return Hose
♦ O-Ring
Intake Air Connector
Vacuum Hose
No.1 Air Intake Chamber Stay
♦ Non-reusable part
P20899
