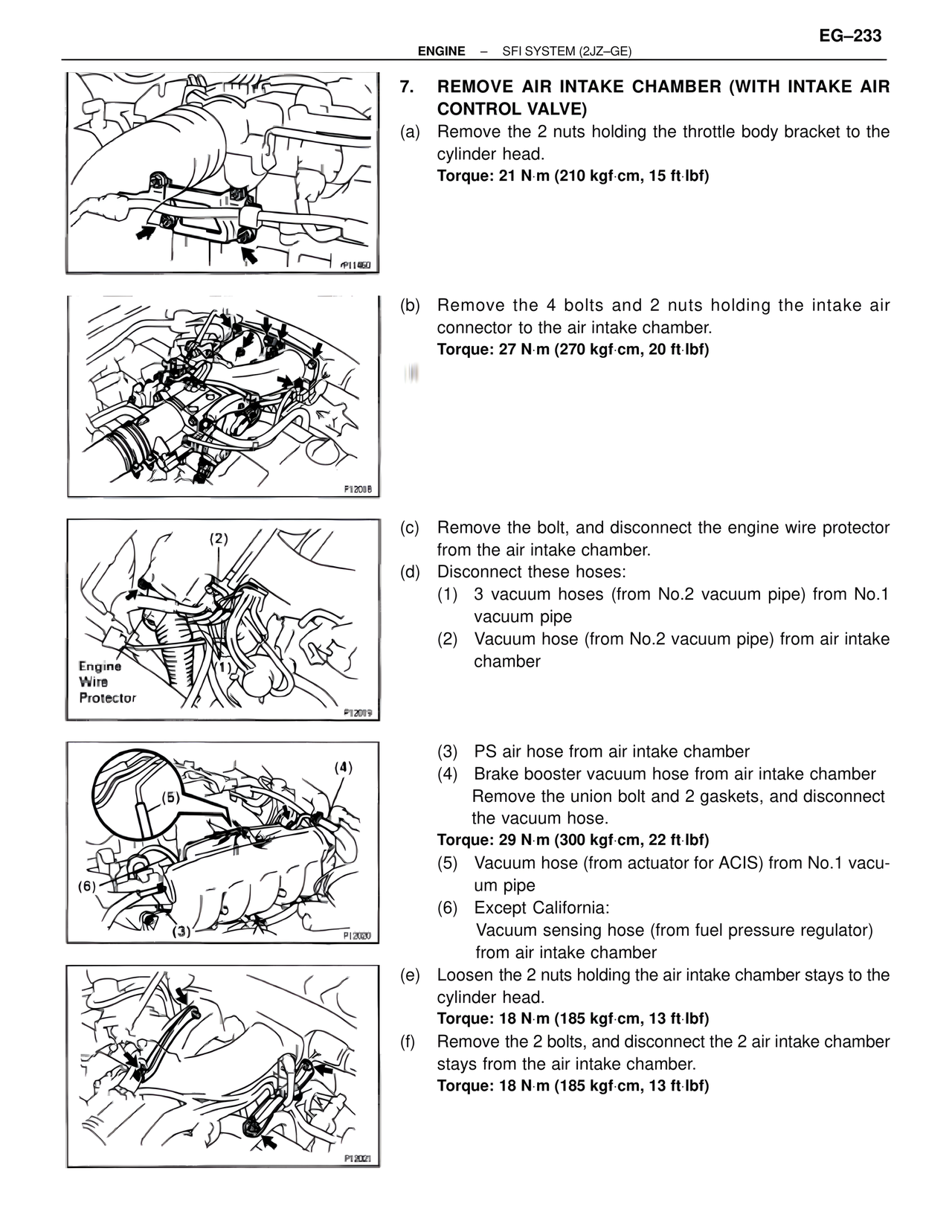

EG–233
ENGINE – SFI SYSTEM (2JZ–GE)
7. REMOVE AIR INTAKE CHAMBER (WITH INTAKE AIR CONTROL VALVE)
(a) Remove the 2 nuts holding the throttle body bracket to the cylinder head.
Torque: 21 N·m (210 kgf·cm, 15 ft·lbf)
(b) Remove the 4 bolts and 2 nuts holding the intake air connector to the air intake chamber.
Torque: 27 N·m (270 kgf·cm, 20 ft·lbf)
(c) Remove the bolt, and disconnect the engine wire protector from the air intake chamber.
(d) Disconnect these hoses:
(1) 3 vacuum hoses (from No.2 vacuum pipe) from No.1 vacuum pipe
(2) Vacuum hose (from No.2 vacuum pipe) from air intake chamber
Engine Wire Protector
(3) PS air hose from air intake chamber
(4) Brake booster vacuum hose from air intake chamber
Remove the union bolt and 2 gaskets, and disconnect the vacuum hose.
Torque: 29 N·m (300 kgf·cm, 22 ft·lbf)
(5) Vacuum hose (from actuator for ACIS) from No.1 vacuum pipe
(6) Except California:
Vacuum sensing hose (from fuel pressure regulator) from air intake chamber
(e) Loosen the 2 nuts holding the air intake chamber stays to the cylinder head.
Torque: 18 N·m (185 kgf·cm, 13 ft·lbf)
(f) Remove the 2 bolts, and disconnect the 2 air intake chamber stays from the air intake chamber.
Torque: 18 N·m (185 kgf·cm, 13 ft·lbf)
rP11460
P12088
P13019
P12020
P12021
