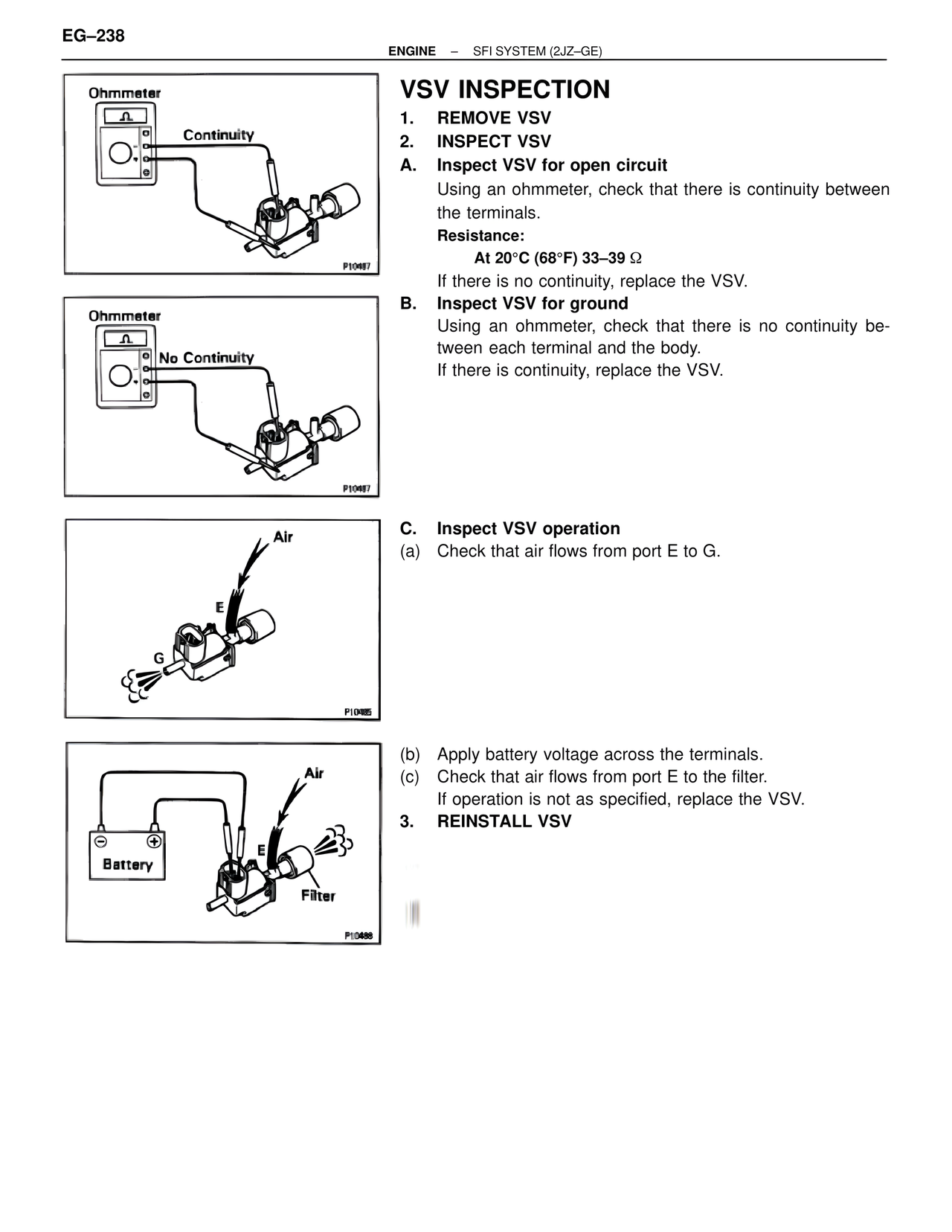

EG–238 ENGINE – SFI SYSTEM (2JZ–GE) VSV INSPECTION 1. REMOVE VSV 2. INSPECT VSV A. Inspect VSV for open circuit Using an ohmmeter, check that there is continuity between the terminals. Resistance: At 20°C (68°F) 33–39 Ω If there is no continuity, replace the VSV. B. Inspect VSV for ground Using an ohmmeter, check that there is no continuity between each terminal and the body. If there is continuity, replace the VSV. Ohmmeter Continuity P10487 Ohmmeter No Continuity P10487 C. Inspect VSV operation (a) Check that air flows from port E to G. Air E G P10485 (b) Apply battery voltage across the terminals. (c) Check that air flows from port E to the filter. If operation is not as specified, replace the VSV. 3. REINSTALL VSV Air Battery E Filter P10486
