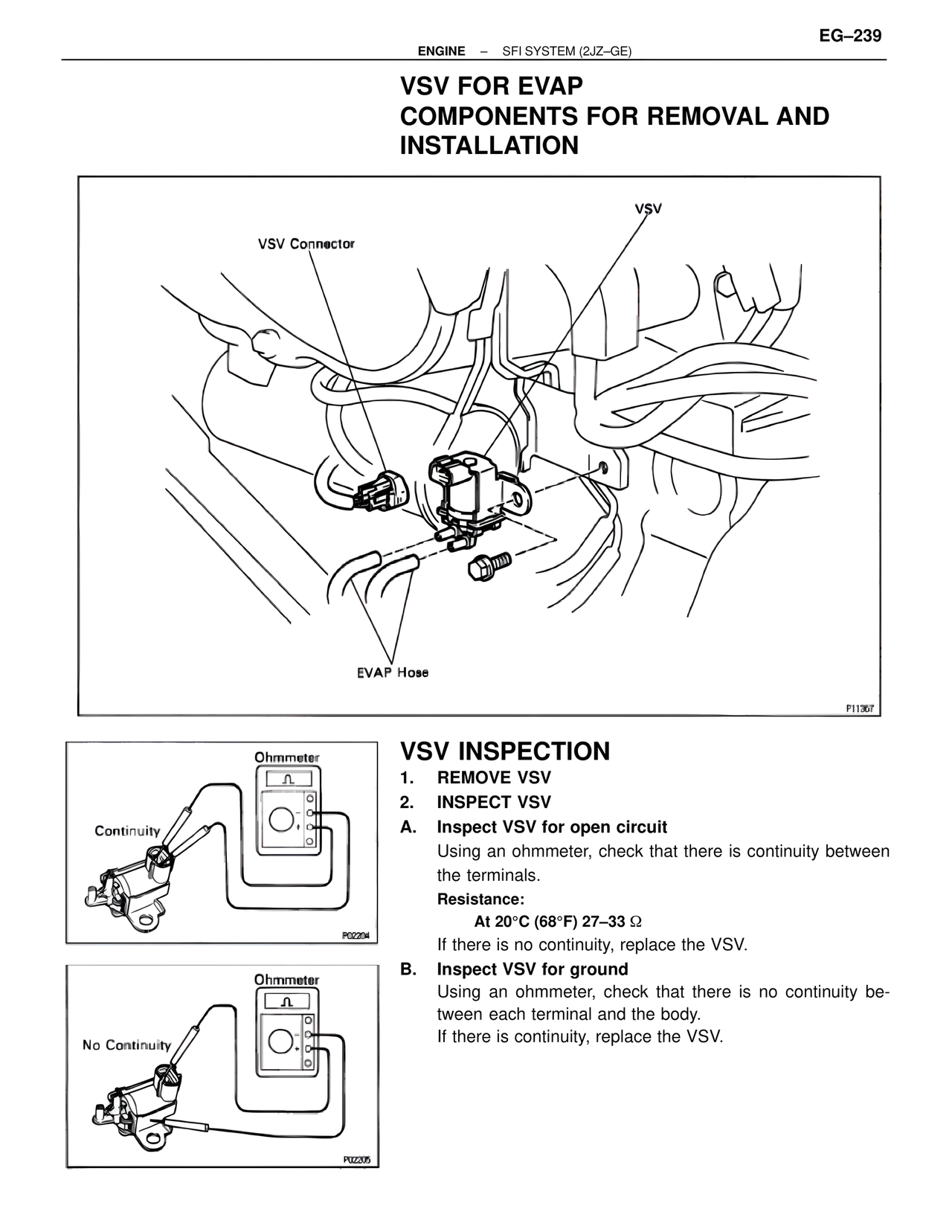

EG-239
ENGINE – SFI SYSTEM (2JZ-GE)
VSV FOR EVAP
COMPONENTS FOR REMOVAL AND
INSTALLATION
VSV Connector
VSV
EVAP Hose
P11367
Ohmmeter
Continuity
P02204
Ohmmeter
No Continuity
P02205
VSV INSPECTION
1. REMOVE VSV
2. INSPECT VSV
A. Inspect VSV for open circuit
Using an ohmmeter, check that there is continuity between
the terminals.
Resistance:
At 20°C (68°F) 27–33 Ω
If there is no continuity, replace the VSV.
B. Inspect VSV for ground
Using an ohmmeter, check that there is no continuity be-
tween each terminal and the body.
If there is continuity, replace the VSV.
