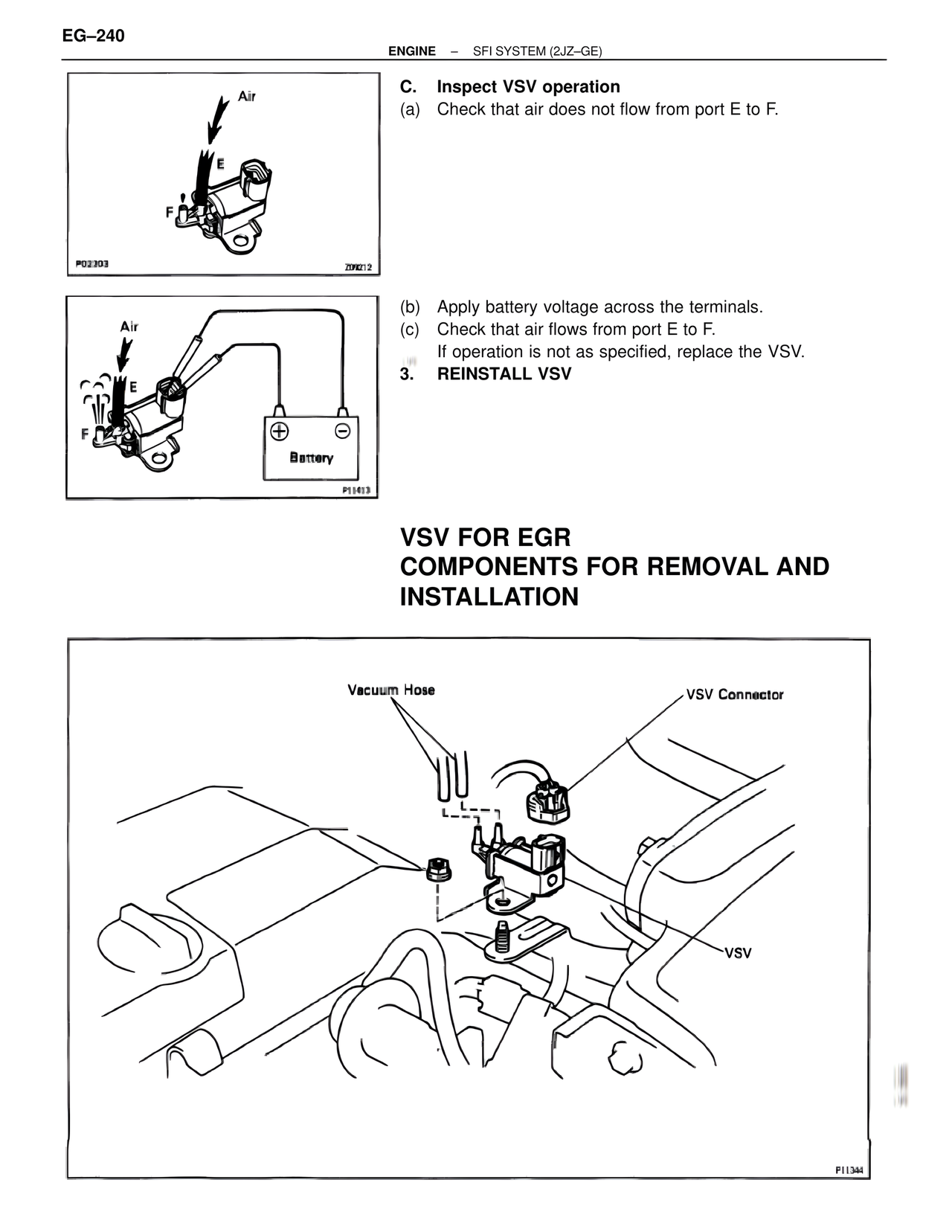

EG–240 ENGINE – SFI SYSTEM (2JZ–GE) Air E F P02303 Z09212 C. Inspect VSV operation (a) Check that air does not flow from port E to F. Air E F P11413 Battery (b) Apply battery voltage across the terminals. (c) Check that air flows from port E to F. If operation is not as specified, replace the VSV. 3. REINSTALL VSV VSV FOR EGR COMPONENTS FOR REMOVAL AND INSTALLATION Vacuum Hose VSV Connector L VSV P11344
