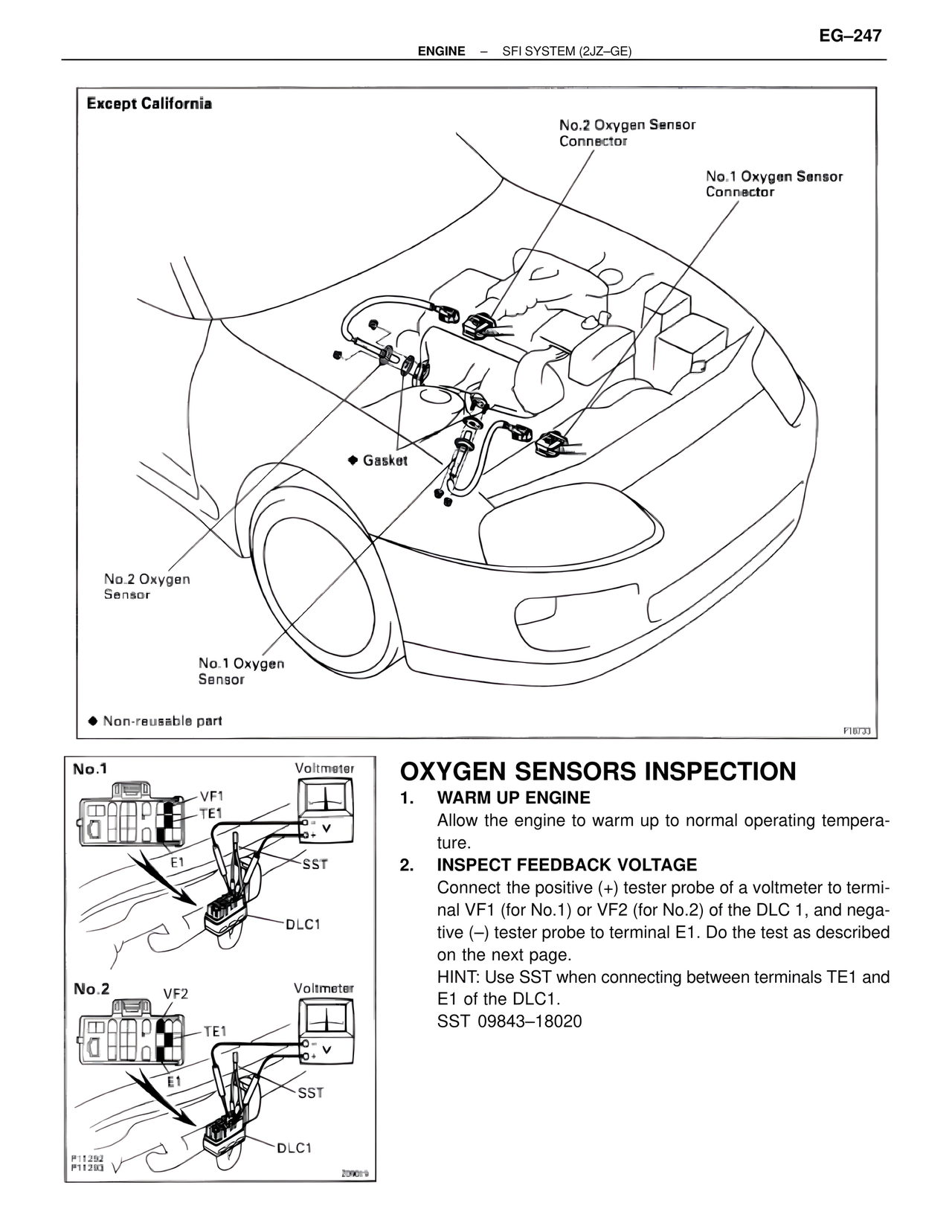

EG–247
ENGINE – SFI SYSTEM (2JZ–GE)
Except California
No.2 Oxygen Sensor
Connector
No.1 Oxygen Sensor
Connector
♦ Gasket
No.2 Oxygen
Sensor
No.1 Oxygen
Sensor
♦ Non-reusable part
P18733
No.1
Voltmeter
VF1
TE1
E1
SST
DLC1
No.2
VF2
Voltmeter
TE1
E1
SST
DLC1
P11292
P11293
Z09059
OXYGEN SENSORS INSPECTION
1. WARM UP ENGINE
Allow the engine to warm up to normal operating temperature.
2. INSPECT FEEDBACK VOLTAGE
Connect the positive (+) tester probe of a voltmeter to terminal VF1 (for No.1) or VF2 (for No.2) of the DLC 1, and negative (–) tester probe to terminal E1. Do the test as described on the next page.
HINT: Use SST when connecting between terminals TE1 and E1 of the DLC1.
SST 09843–18020
