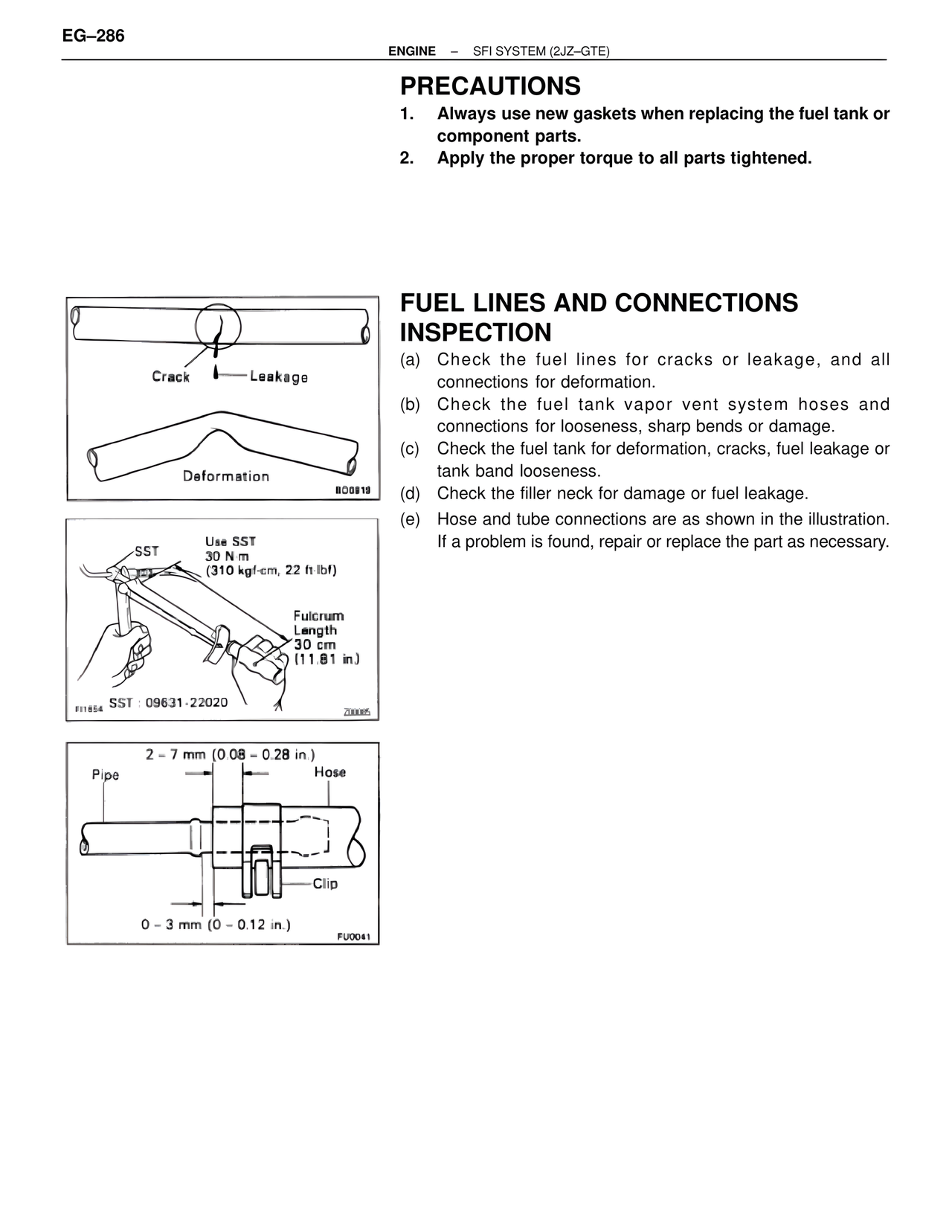

EG–286 ENGINE – SFI SYSTEM (2JZ–GTE) PRECAUTIONS 1. Always use new gaskets when replacing the fuel tank or component parts. 2. Apply the proper torque to all parts tightened. Crack Leakage Deformation BO0#19 Use SST SST 30 N·m (310 kgf·cm, 22 ft·lbf) Fulcrum Length 30 cm (11.81 in.) FI1854 SST : 09631-22020 200005 2 – 7 mm (0.08 – 0.28 in.) Pipe Hose Clip 0 – 3 mm (0 – 0.12 in.) FU0041 FUEL LINES AND CONNECTIONS INSPECTION (a) Check the fuel lines for cracks or leakage, and all connections for deformation. (b) Check the fuel tank vapor vent system hoses and connections for looseness, sharp bends or damage. (c) Check the fuel tank for deformation, cracks, fuel leakage or tank band looseness. (d) Check the filler neck for damage or fuel leakage. (e) Hose and tube connections are as shown in the illustration. If a problem is found, repair or replace the part as necessary.
