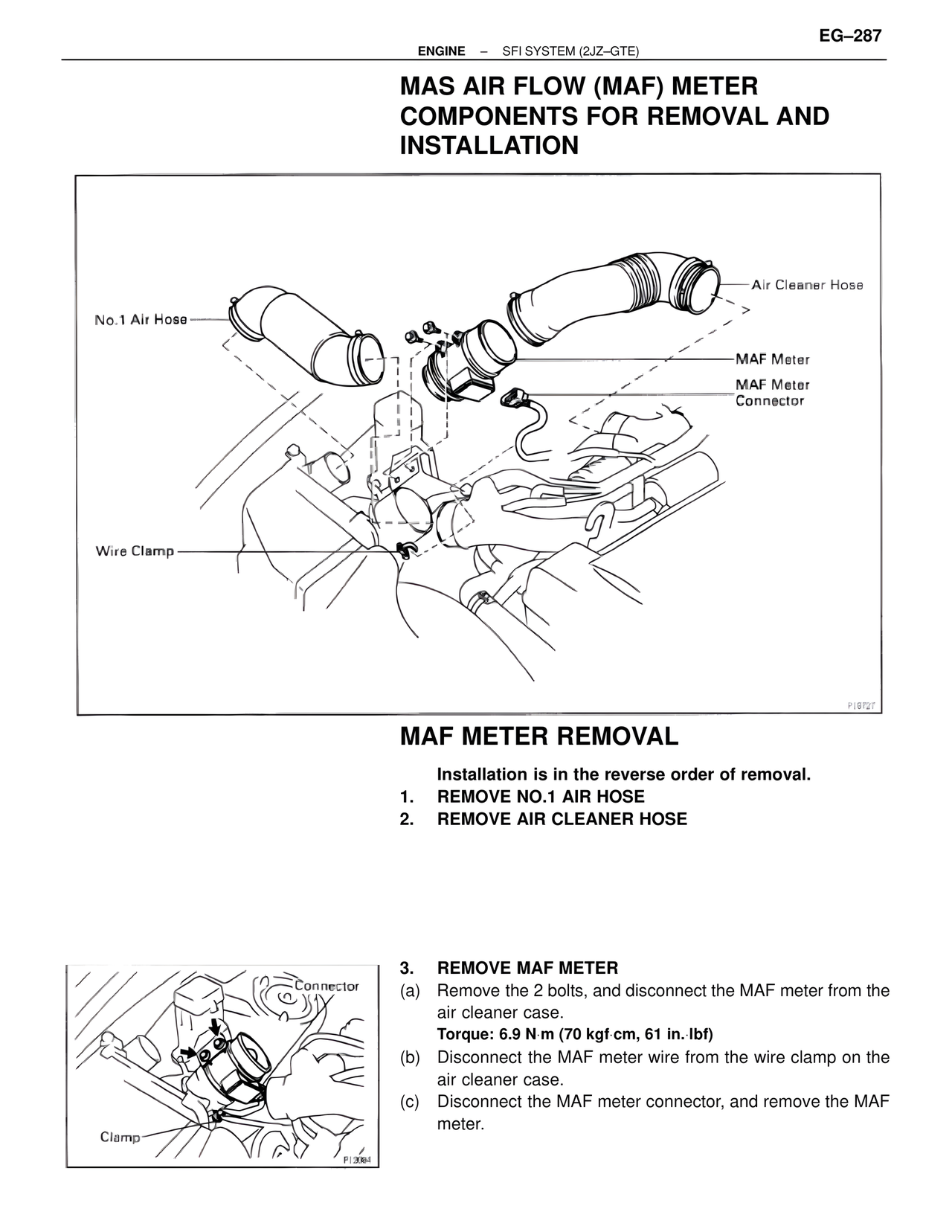

EG-287 ENGINE – SFI SYSTEM (2JZ-GTE) MAS AIR FLOW (MAF) METER COMPONENTS FOR REMOVAL AND INSTALLATION No.1 Air Hose Air Cleaner Hose MAF Meter MAF Meter Connector Wire Clamp P19T27 MAF METER REMOVAL Installation is in the reverse order of removal. 1. REMOVE NO.1 AIR HOSE 2. REMOVE AIR CLEANER HOSE 3. REMOVE MAF METER (a) Remove the 2 bolts, and disconnect the MAF meter from the air cleaner case. Torque: 6.9 N·m (70 kgf·cm, 61 in.·lbf) (b) Disconnect the MAF meter wire from the wire clamp on the air cleaner case. (c) Disconnect the MAF meter connector, and remove the MAF meter. Connector Clamp P13094
