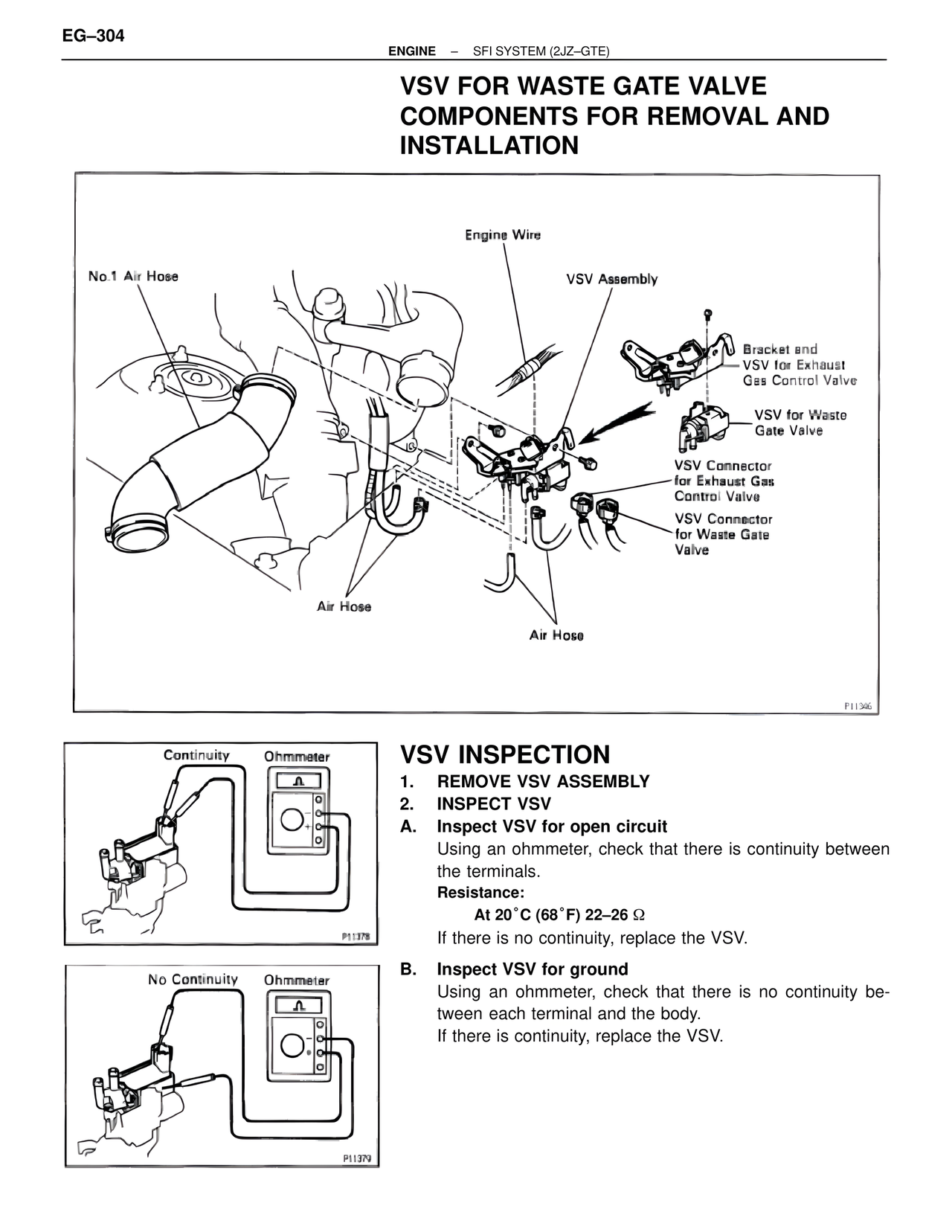

EG–304 ENGINE – SFI SYSTEM (2JZ–GTE) VSV FOR WASTE GATE VALVE COMPONENTS FOR REMOVAL AND INSTALLATION Engine Wire No.1 Air Hose VSV Assembly Bracket and VSV for Exhaust Gas Control Valve VSV for Waste Gate Valve VSV Connector for Exhaust Gas Control Valve VSV Connector for Waste Gate Valve Air Hose Air Hose P11346 Continuity Ohmmeter P11378 No Continuity Ohmmeter P11379 VSV INSPECTION 1. REMOVE VSV ASSEMBLY 2. INSPECT VSV A. Inspect VSV for open circuit Using an ohmmeter, check that there is continuity between the terminals. Resistance: At 20˚C (68˚F) 22–26 Ω If there is no continuity, replace the VSV. B. Inspect VSV for ground Using an ohmmeter, check that there is no continuity be- tween each terminal and the body. If there is continuity, replace the VSV.
