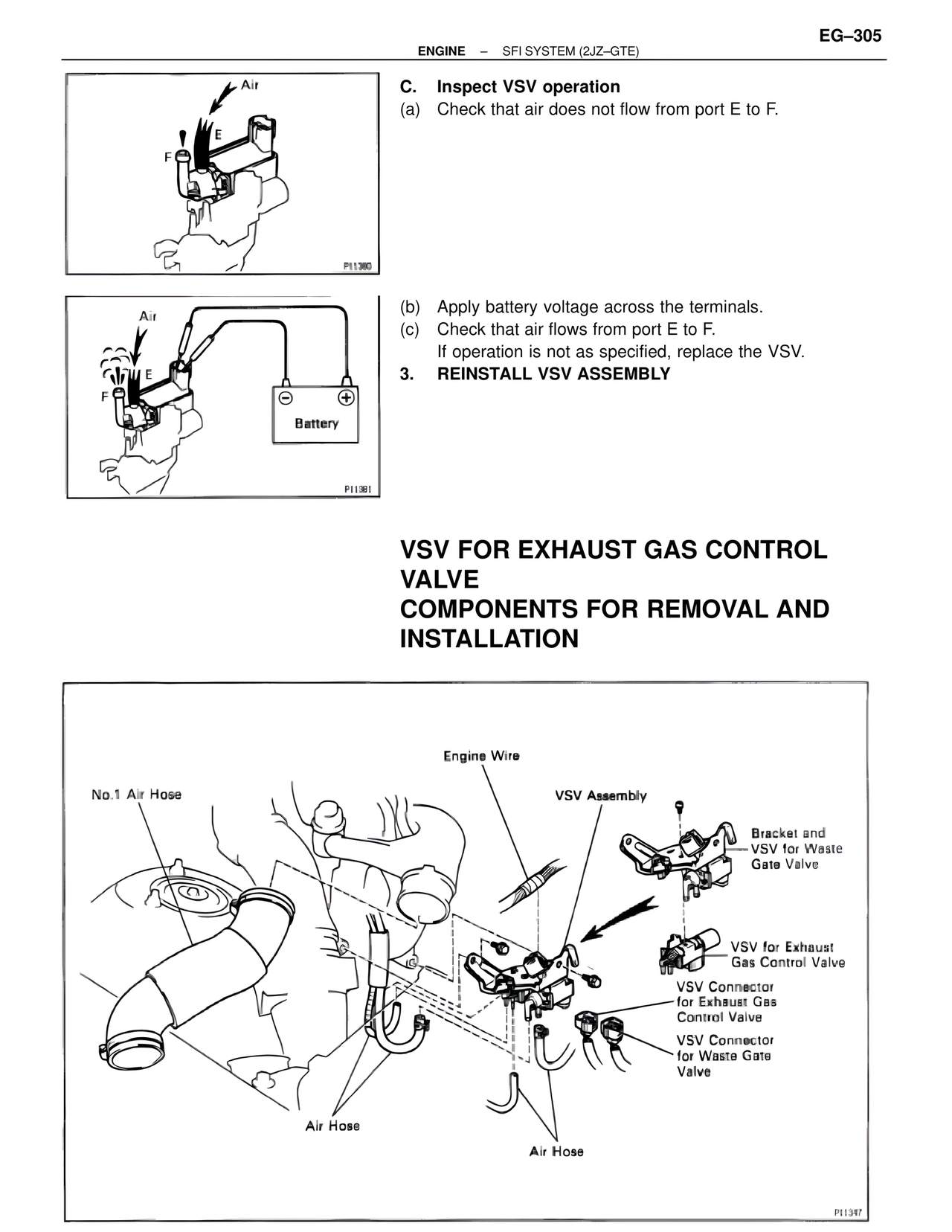

EG–305 ENGINE – SFI SYSTEM (2JZ–GTE) Air E F P11380 C. Inspect VSV operation (a) Check that air does not flow from port E to F. Air E F Battery P11381 (b) Apply battery voltage across the terminals. (c) Check that air flows from port E to F. If operation is not as specified, replace the VSV. 3. REINSTALL VSV ASSEMBLY VSV FOR EXHAUST GAS CONTROL VALVE COMPONENTS FOR REMOVAL AND INSTALLATION Engine Wire No.1 Air Hose VSV Assembly Bracket and VSV for Waste Gate Valve VSV for Exhaust Gas Control Valve VSV Connector for Exhaust Gas Control Valve VSV Connector for Waste Gate Valve Air Hose Air Hose P11347
