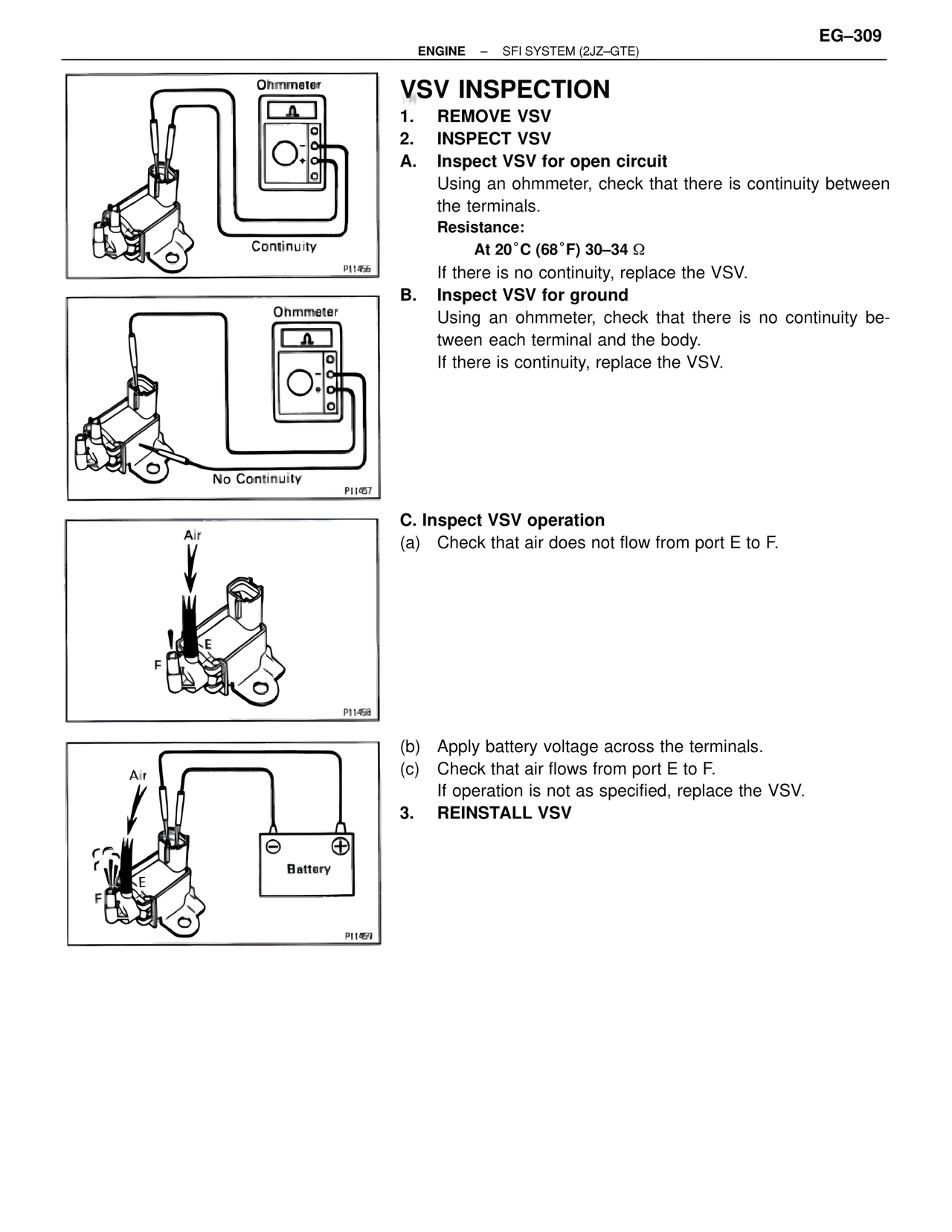

EG–309 ENGINE – SFI SYSTEM (2JZ-GTE) VSV INSPECTION 1. REMOVE VSV 2. INSPECT VSV A. Inspect VSV for open circuit Using an ohmmeter, check that there is continuity between the terminals. Resistance: At 20°C (68°F) 30–34 Ω If there is no continuity, replace the VSV. B. Inspect VSV for ground Using an ohmmeter, check that there is no continuity be- tween each terminal and the body. If there is continuity, replace the VSV. C. Inspect VSV operation (a) Check that air does not flow from port E to F. (b) Apply battery voltage across the terminals. (c) Check that air flows from port E to F. If operation is not as specified, replace the VSV. 3. REINSTALL VSV Ohmmeter Continuity P11456 Ohmmeter No Continuity P11457 Air F E P11458 Air F E Battery P11459
