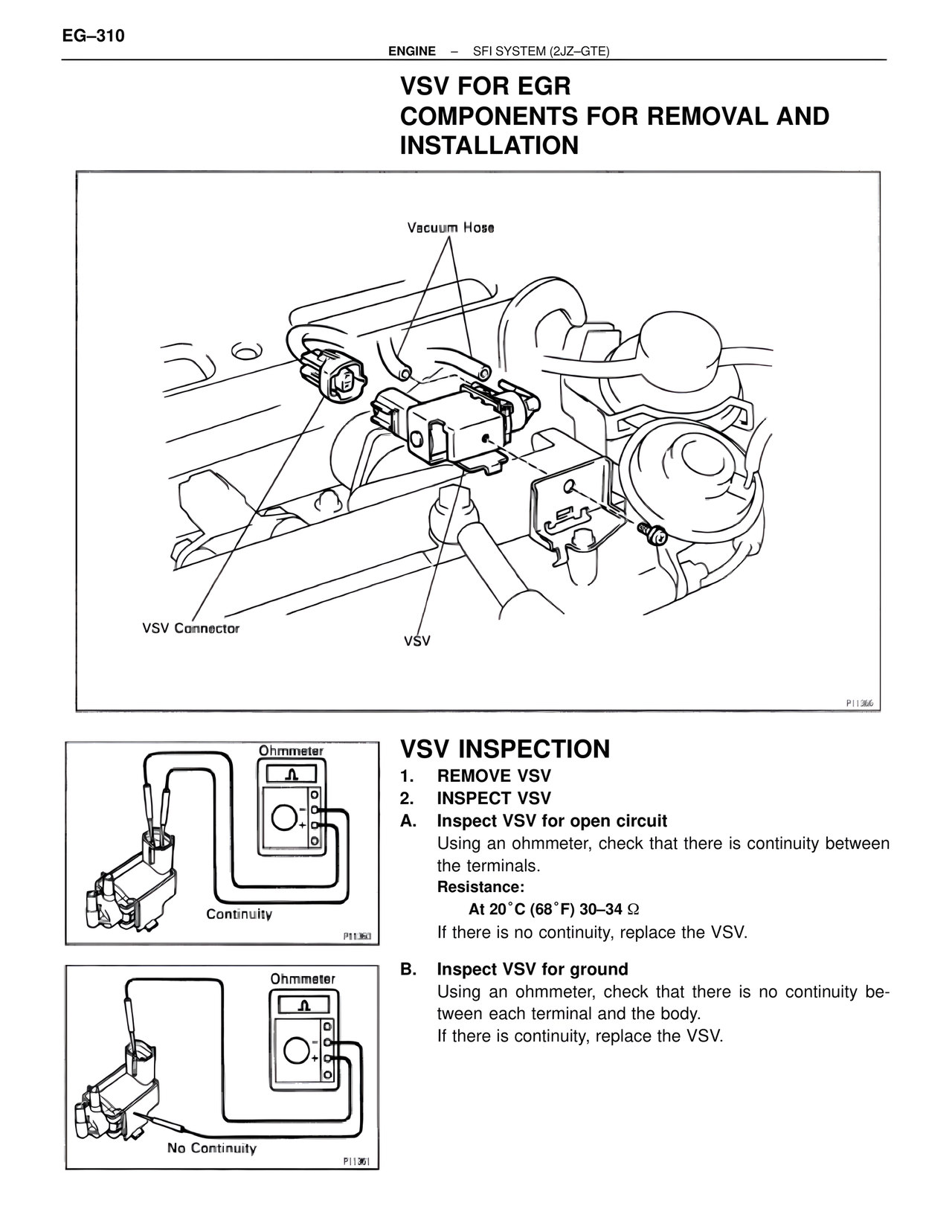

EG–310
ENGINE – SFI SYSTEM (2JZ–GTE)
VSV FOR EGR
COMPONENTS FOR REMOVAL AND
INSTALLATION
Vacuum Hose
VSV Connector
VSV
P11366
Ohmmeter
Continuity
P11360
VSV INSPECTION
1. REMOVE VSV
2. INSPECT VSV
A. Inspect VSV for open circuit
Using an ohmmeter, check that there is continuity between
the terminals.
Resistance:
At 20°C (68°F) 30–34 Ω
If there is no continuity, replace the VSV.
Ohmmeter
No Continuity
P11361
B. Inspect VSV for ground
Using an ohmmeter, check that there is no continuity be-
tween each terminal and the body.
If there is continuity, replace the VSV.
