EG–316
ENGINE – SFI SYSTEM (2JZ–GTE)

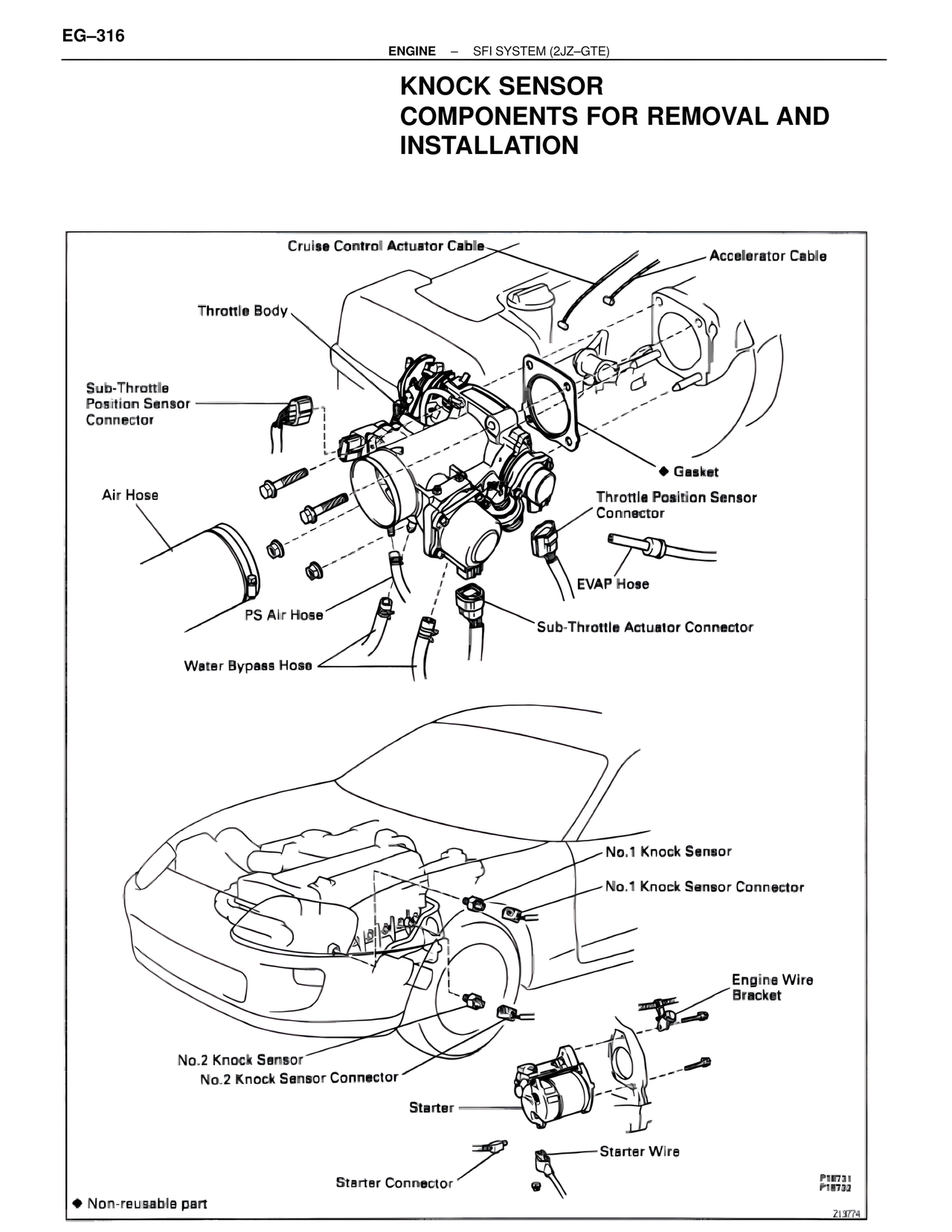

KNOCK SENSOR
COMPONENTS FOR REMOVAL AND
INSTALLATION
Cruise Control Actuator Cable
Accelerator Cable
Throttle Body
Sub-Throttle
Position Sensor
Connector
♦ Gasket
Air Hose
Throttle Position Sensor
Connector
EVAP Hose
PS Air Hose
Sub-Throttle Actuator Connector
Water Bypass Hose
No.1 Knock Sensor
No.1 Knock Sensor Connector
Engine Wire
Bracket
No.2 Knock Sensor
No.2 Knock Sensor Connector
Starter
Starter Wire
Starter Connector
P18731
P18732
213774
♦ Non-reusable part
