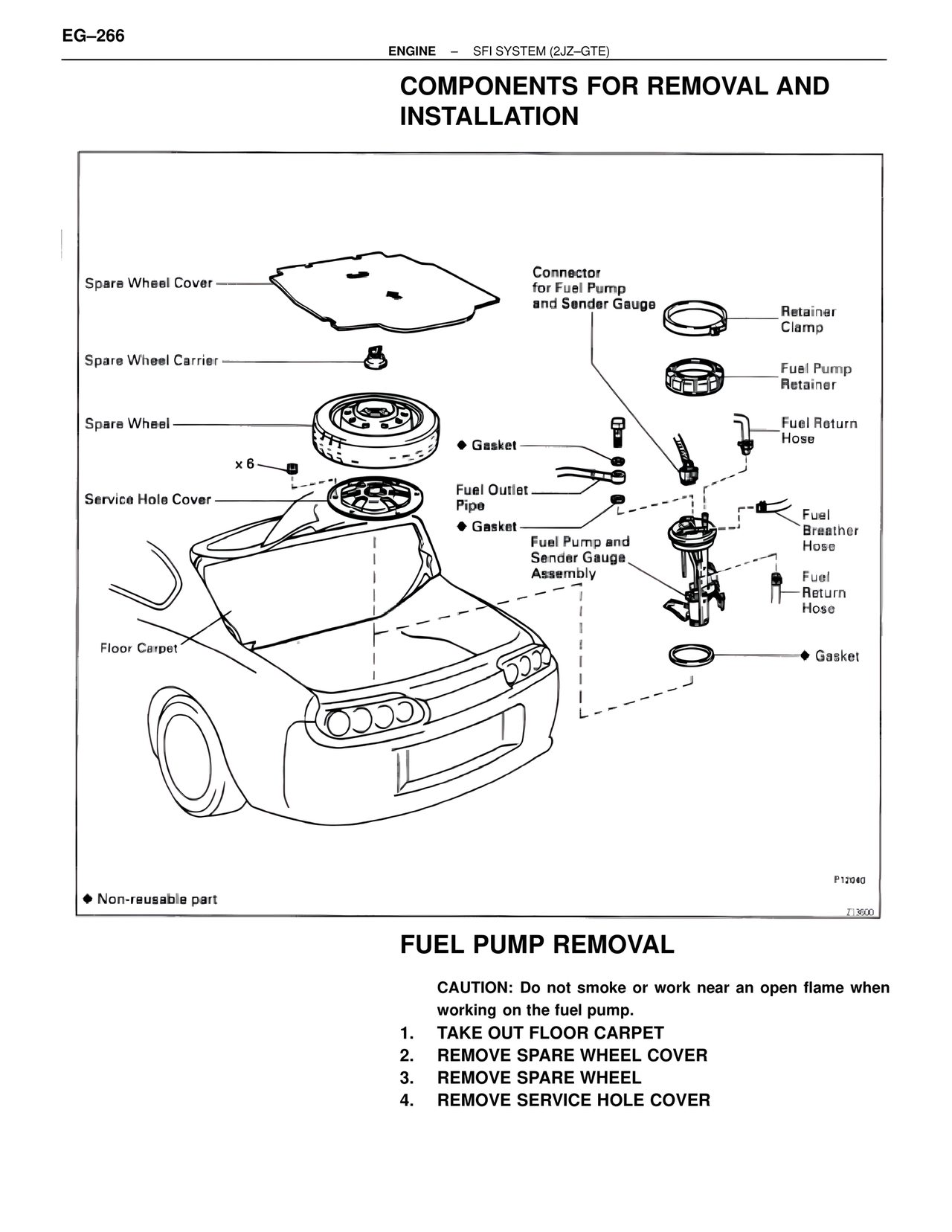

EG–266 ENGINE – SFI SYSTEM (2JZ–GTE) COMPONENTS FOR REMOVAL AND INSTALLATION Spare Wheel Cover Spare Wheel Carrier Spare Wheel x 6 Service Hole Cover Floor Carpet Connector for Fuel Pump and Sender Gauge Retainer Clamp Fuel Pump Retainer Fuel Return Hose ♦ Gasket Fuel Outlet Pipe Fuel Breather Hose ♦ Gasket Fuel Pump and Sender Gauge Assembly Fuel Return Hose ♦ Gasket P12040 Z13600 ♦ Non-reusable part FUEL PUMP REMOVAL CAUTION: Do not smoke or work near an open flame when working on the fuel pump. 1. TAKE OUT FLOOR CARPET 2. REMOVE SPARE WHEEL COVER 3. REMOVE SPARE WHEEL 4. REMOVE SERVICE HOLE COVER
