SUPPLEMENTAL RESTRAINT SYSTEM – TROUBLESHOOTING

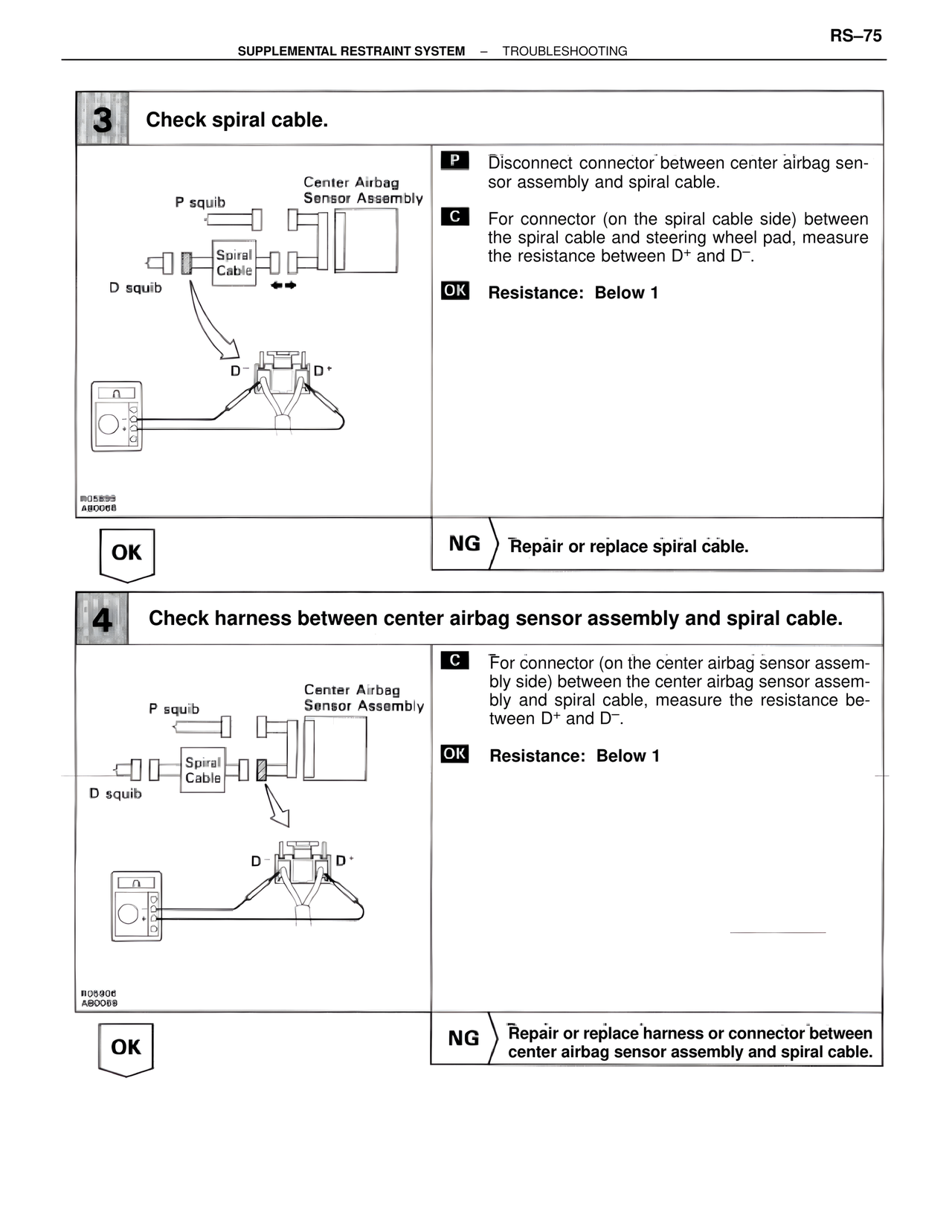

3 Check spiral cable.
Center Airbag
Sensor Assembly
P squib
Spiral
Cable
D squib
D– D+
R05899
AB0068
P Disconnect connector between center airbag sensor assembly and spiral cable.
C For connector (on the spiral cable side) between the spiral cable and steering wheel pad, measure the resistance between D+ and D–.
OK Resistance: Below 1
OK NG Repair or replace spiral cable.
4 Check harness between center airbag sensor assembly and spiral cable.
Center Airbag
Sensor Assembly
P squib
Spiral
Cable
D squib
D– D+
R05906
AB0068
C For connector (on the center airbag sensor assembly side) between the center airbag sensor assembly and spiral cable, measure the resistance between D+ and D–.
OK Resistance: Below 1
OK NG Repair or replace harness or connector between center airbag sensor assembly and spiral cable.
