RS–76
SUPPLEMENTAL RESTRAINT SYSTEM – TROUBLESHOOTING

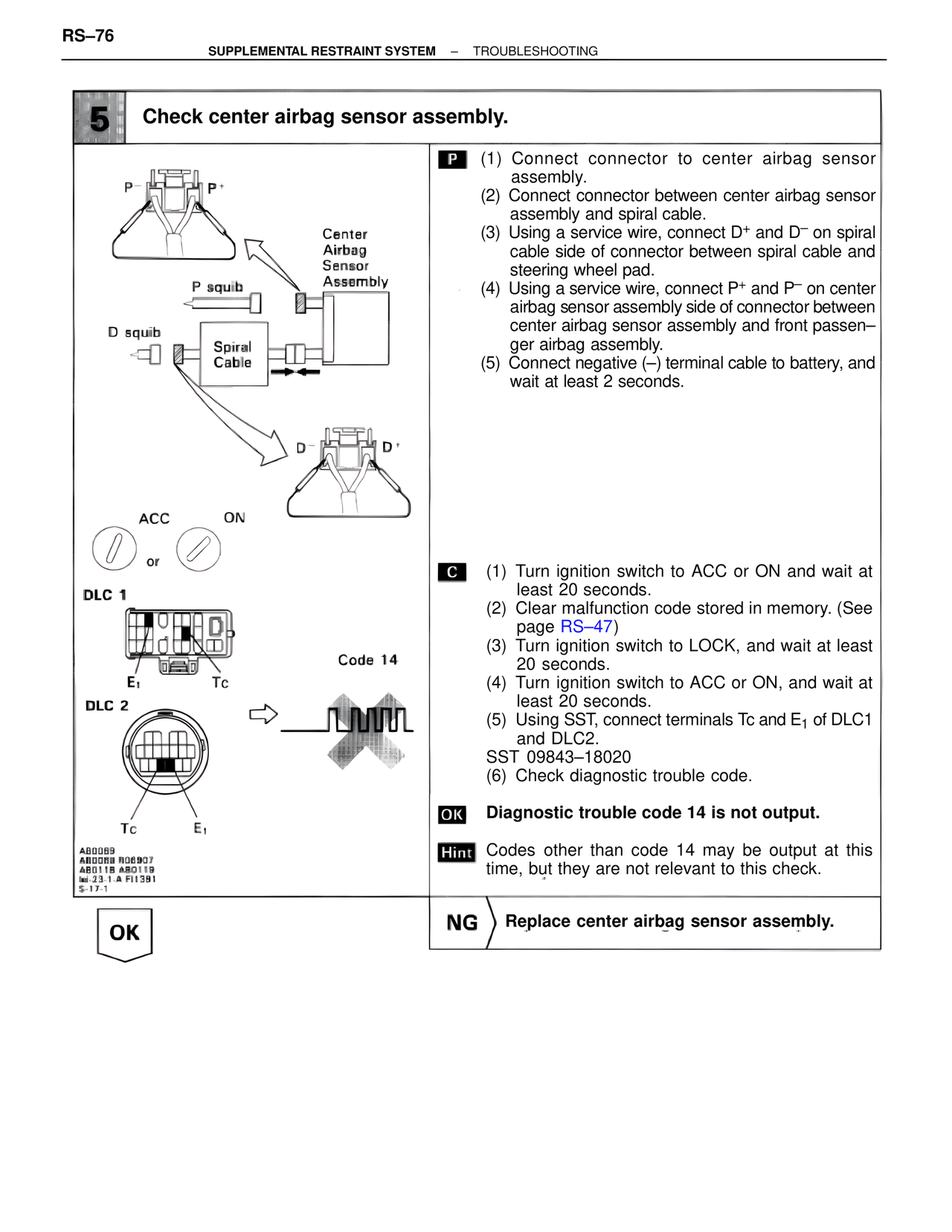

5 Check center airbag sensor assembly.
P– P+
Center
Airbag
Sensor
Assembly
P squib
D squib
Spiral
Cable
D– D+
ACC ON
or
DLC 1
E₁ Tc
Code 14
DLC 2
Tc E₁
AB0069
AB0069 R06907
AB0118 AB0119
tel-23-1-A FI1391
S-17-1
OK
P (1) Connect connector to center airbag sensor assembly.
(2) Connect connector between center airbag sensor assembly and spiral cable.
(3) Using a service wire, connect D+ and D– on spiral cable side of connector between spiral cable and steering wheel pad.
(4) Using a service wire, connect P+ and P– on center airbag sensor assembly side of connector between center airbag sensor assembly and front passenger airbag assembly.
(5) Connect negative (–) terminal cable to battery, and wait at least 2 seconds.
C (1) Turn ignition switch to ACC or ON and wait at least 20 seconds.
(2) Clear malfunction code stored in memory. (See page RS–47)
(3) Turn ignition switch to LOCK, and wait at least 20 seconds.
(4) Turn ignition switch to ACC or ON, and wait at least 20 seconds.
(5) Using SST, connect terminals Tc and E₁ of DLC1 and DLC2.
SST 09843–18020
(6) Check diagnostic trouble code.
OK Diagnostic trouble code 14 is not output.
Hint Codes other than code 14 may be output at this time, but they are not relevant to this check.
NG Replace center airbag sensor assembly.
