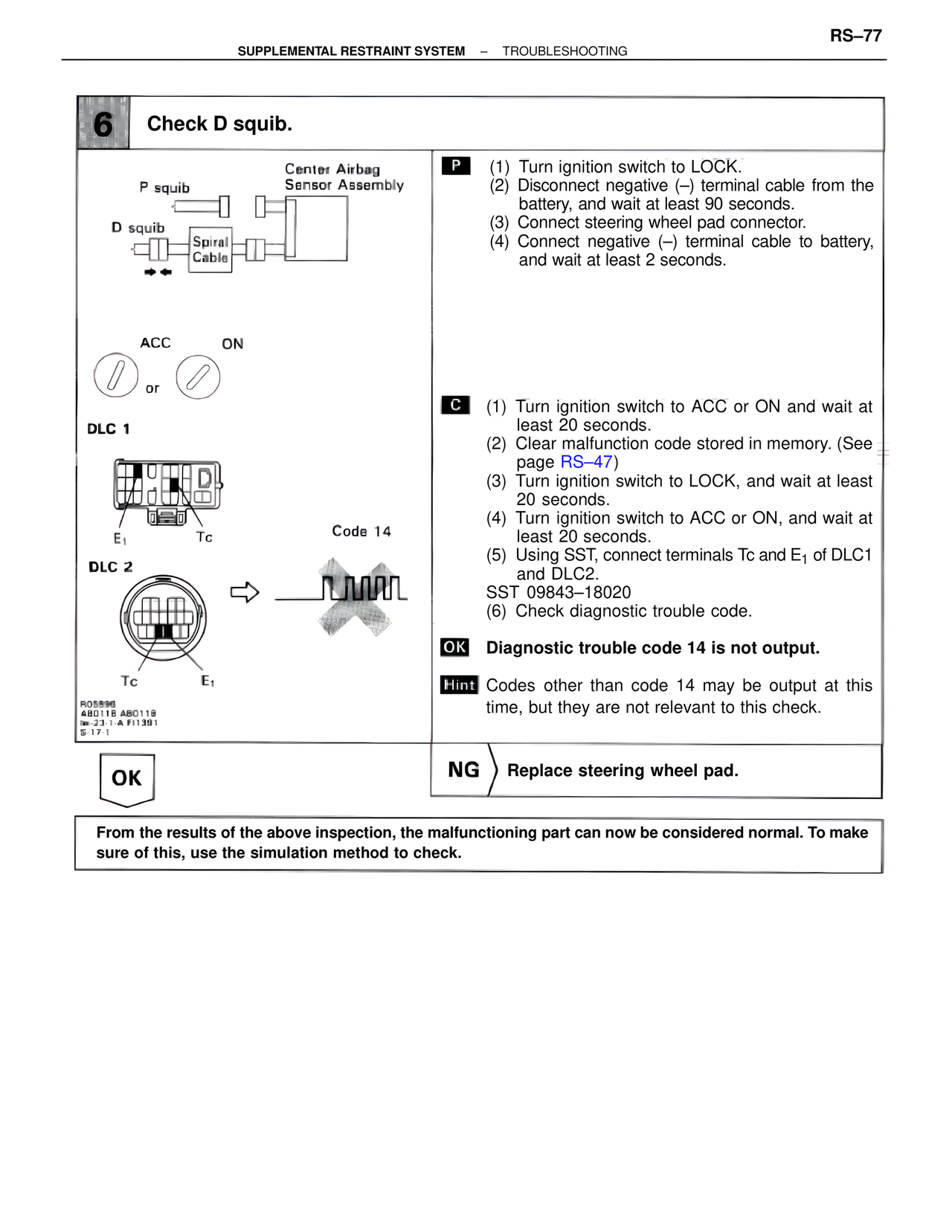

RS–77
SUPPLEMENTAL RESTRAINT SYSTEM – TROUBLESHOOTING
6 Check D squib.
Center Airbag
P squib Sensor Assembly
D squib
Spiral
Cable
ACC ON
or
DLC 1
Code 14
E₁ Tc
DLC 2
Tc E₁
R05896
AB0118 AB0119
lel-23-1-A FI1391
S-17-1
P (1) Turn ignition switch to LOCK.
(2) Disconnect negative (–) terminal cable from the
battery, and wait at least 90 seconds.
(3) Connect steering wheel pad connector.
(4) Connect negative (–) terminal cable to battery,
and wait at least 2 seconds.
C (1) Turn ignition switch to ACC or ON and wait at
least 20 seconds.
(2) Clear malfunction code stored in memory. (See
page RS–47)
(3) Turn ignition switch to LOCK, and wait at least
20 seconds.
(4) Turn ignition switch to ACC or ON, and wait at
least 20 seconds.
(5) Using SST, connect terminals Tc and E₁ of DLC1
and DLC2.
SST 09843–18020
(6) Check diagnostic trouble code.
OK Diagnostic trouble code 14 is not output.
Hint Codes other than code 14 may be output at this
time, but they are not relevant to this check.
OK
NG Replace steering wheel pad.
From the results of the above inspection, the malfunctioning part can now be considered normal. To make
sure of this, use the simulation method to check.
