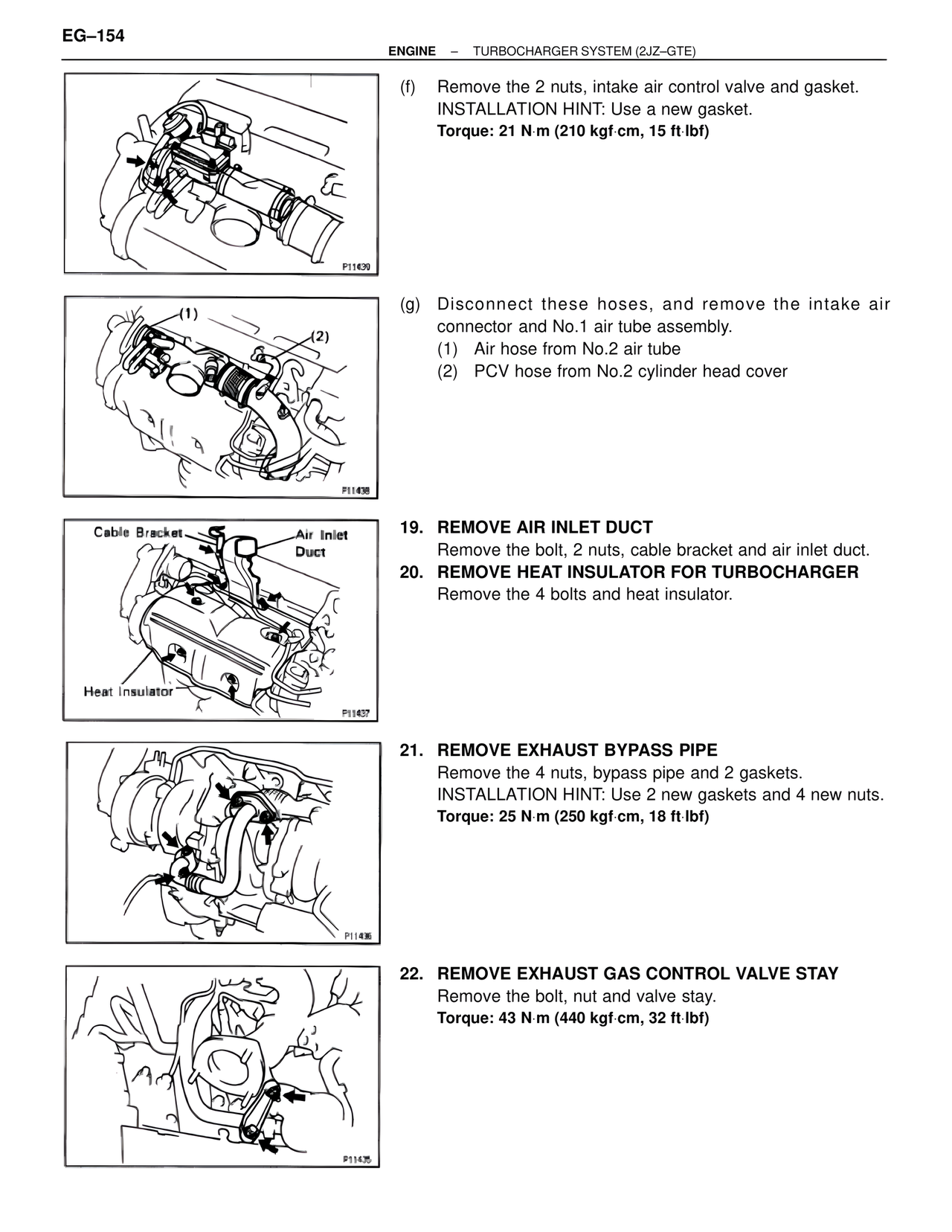

EG–154
ENGINE – TURBOCHARGER SYSTEM (2JZ-GTE)
(f) Remove the 2 nuts, intake air control valve and gasket.
INSTALLATION HINT: Use a new gasket.
Torque: 21 N·m (210 kgf·cm, 15 ft·lbf)
P11439
(1)
(2)
(g) Disconnect these hoses, and remove the intake air
connector and No.1 air tube assembly.
(1) Air hose from No.2 air tube
(2) PCV hose from No.2 cylinder head cover
P11438
Cable Bracket Air Inlet
Duct
19. REMOVE AIR INLET DUCT
Remove the bolt, 2 nuts, cable bracket and air inlet duct.
20. REMOVE HEAT INSULATOR FOR TURBOCHARGER
Remove the 4 bolts and heat insulator.
Heat Insulator
P11437
21. REMOVE EXHAUST BYPASS PIPE
Remove the 4 nuts, bypass pipe and 2 gaskets.
INSTALLATION HINT: Use 2 new gaskets and 4 new nuts.
Torque: 25 N·m (250 kgf·cm, 18 ft·lbf)
P11436
22. REMOVE EXHAUST GAS CONTROL VALVE STAY
Remove the bolt, nut and valve stay.
Torque: 43 N·m (440 kgf·cm, 32 ft·lbf)
P11435
