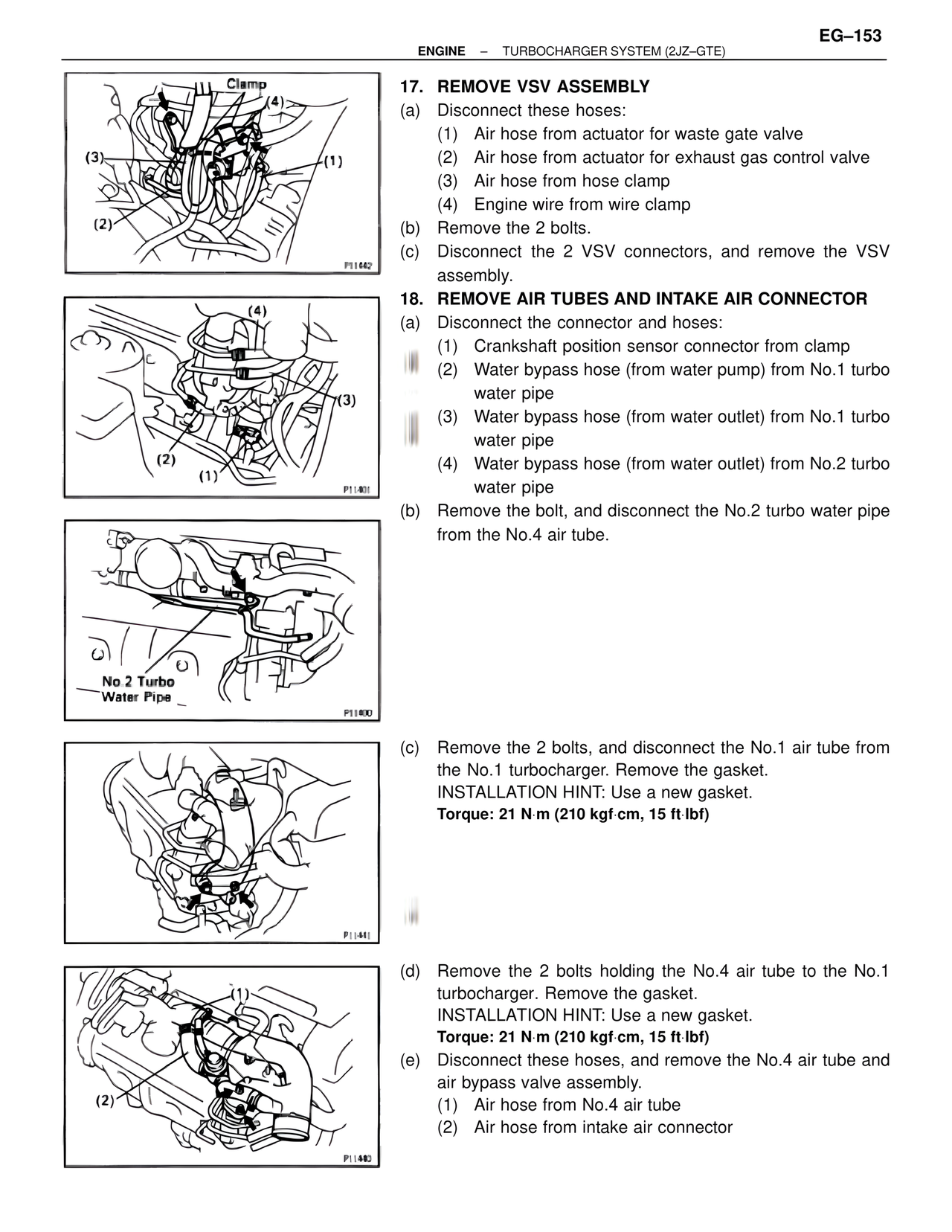

EG–153 ENGINE – TURBOCHARGER SYSTEM (2JZ–GTE) Clamp (4) (3) (1) (2) P11442 17. REMOVE VSV ASSEMBLY (a) Disconnect these hoses: (1) Air hose from actuator for waste gate valve (2) Air hose from actuator for exhaust gas control valve (3) Air hose from hose clamp (4) Engine wire from wire clamp (b) Remove the 2 bolts. (c) Disconnect the 2 VSV connectors, and remove the VSV assembly. (4) (3) (2) (1) P11401 18. REMOVE AIR TUBES AND INTAKE AIR CONNECTOR (a) Disconnect the connector and hoses: (1) Crankshaft position sensor connector from clamp (2) Water bypass hose (from water pump) from No.1 turbo water pipe (3) Water bypass hose (from water outlet) from No.1 turbo water pipe (4) Water bypass hose (from water outlet) from No.2 turbo water pipe (b) Remove the bolt, and disconnect the No.2 turbo water pipe from the No.4 air tube. No.2 Turbo Water Pipe P11400 (c) Remove the 2 bolts, and disconnect the No.1 air tube from the No.1 turbocharger. Remove the gasket. INSTALLATION HINT: Use a new gasket. Torque: 21 N·m (210 kgf·cm, 15 ft·lbf) P11441 (1) (2) P11440 (d) Remove the 2 bolts holding the No.4 air tube to the No.1 turbocharger. Remove the gasket. INSTALLATION HINT: Use a new gasket. Torque: 21 N·m (210 kgf·cm, 15 ft·lbf) (e) Disconnect these hoses, and remove the No.4 air tube and air bypass valve assembly. (1) Air hose from No.4 air tube (2) Air hose from intake air connector
