EG–160
ENGINE – TURBOCHARGER SYSTEM (2JZ–GTE)

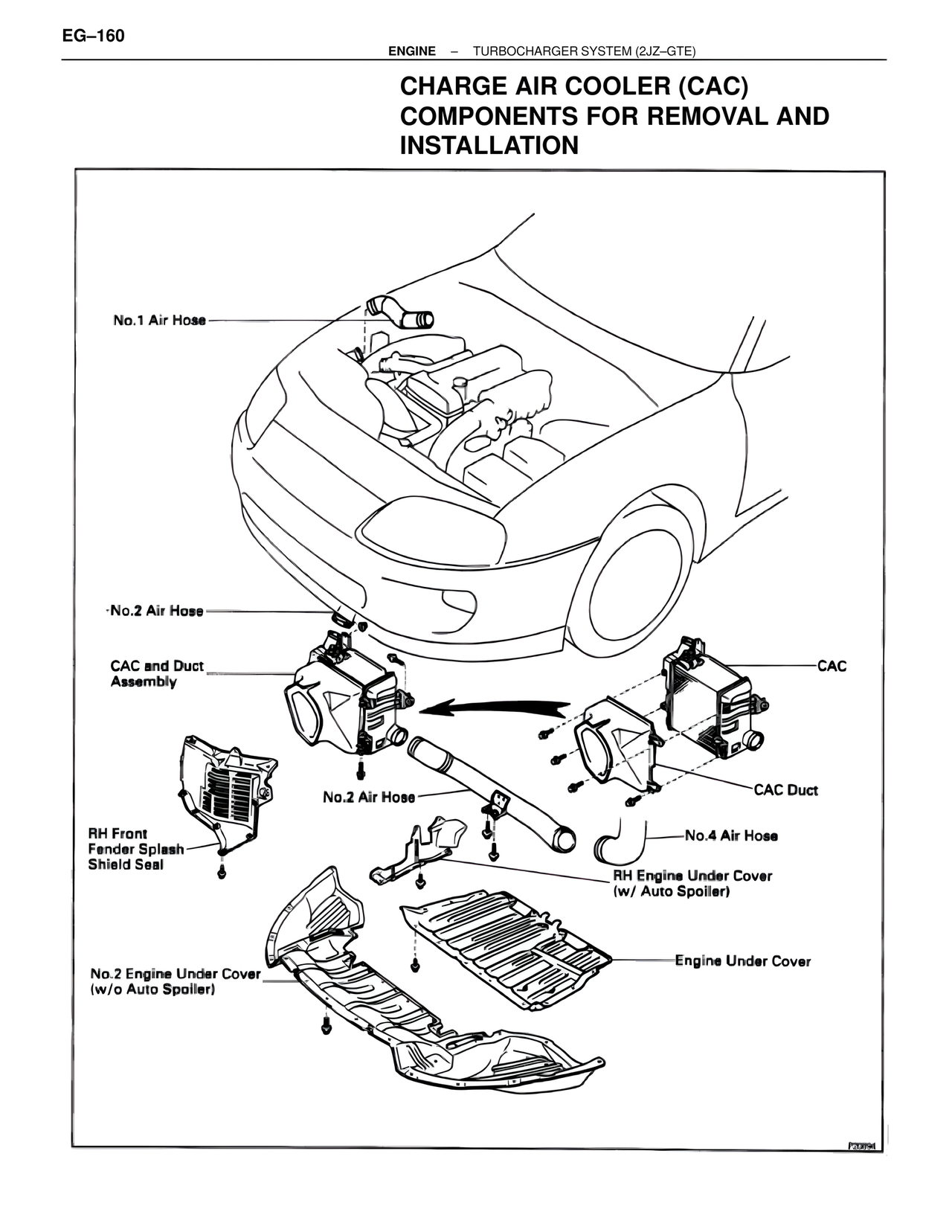

CHARGE AIR COOLER (CAC)
COMPONENTS FOR REMOVAL AND
INSTALLATION
No.1 Air Hose
No.2 Air Hose
CAC and Duct
Assembly
CAC
No.2 Air Hose
CAC Duct
RH Front
Fender Splash
Shield Seal
No.4 Air Hose
RH Engine Under Cover
(w/ Auto Spoiler)
Engine Under Cover
No.2 Engine Under Cover
(w/o Auto Spoiler)
P20094
