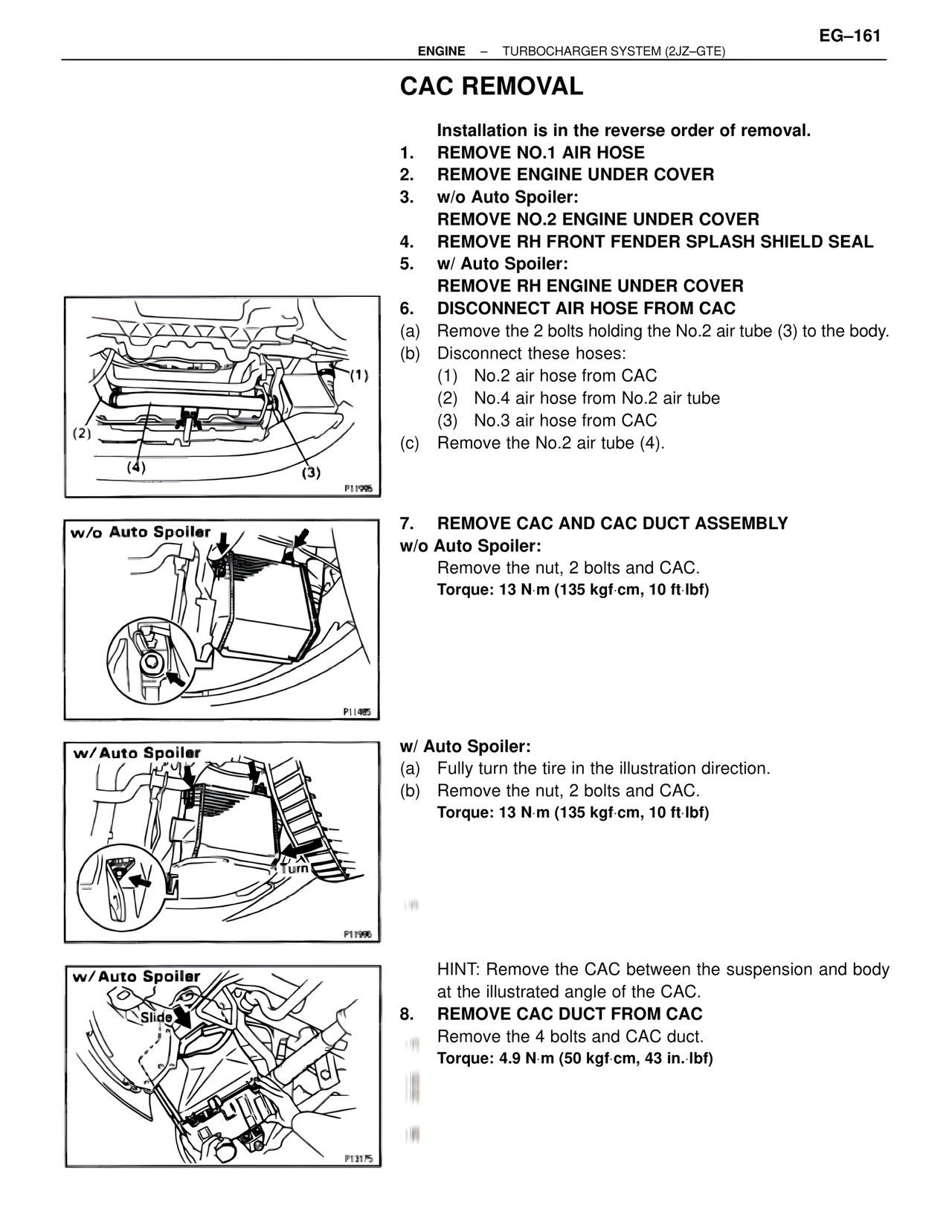

CAC REMOVAL Installation is in the reverse order of removal. 1. REMOVE NO.1 AIR HOSE 2. REMOVE ENGINE UNDER COVER 3. w/o Auto Spoiler: REMOVE NO.2 ENGINE UNDER COVER 4. REMOVE RH FRONT FENDER SPLASH SHIELD SEAL 5. w/ Auto Spoiler: REMOVE RH ENGINE UNDER COVER 6. DISCONNECT AIR HOSE FROM CAC (a) Remove the 2 bolts holding the No.2 air tube (3) to the body. (b) Disconnect these hoses: (1) No.2 air hose from CAC (2) No.4 air hose from No.2 air tube (3) No.3 air hose from CAC (c) Remove the No.2 air tube (4). (1) (2) (4) (3) P11995 w/o Auto Spoiler P11495 7. REMOVE CAC AND CAC DUCT ASSEMBLY w/o Auto Spoiler: Remove the nut, 2 bolts and CAC. Torque: 13 N·m (135 kgf·cm, 10 ft·lbf) w/ Auto Spoiler Turn P11996 w/ Auto Spoiler: (a) Fully turn the tire in the illustration direction. (b) Remove the nut, 2 bolts and CAC. Torque: 13 N·m (135 kgf·cm, 10 ft·lbf) w/ Auto Spoiler Slide P13175 HINT: Remove the CAC between the suspension and body at the illustrated angle of the CAC. 8. REMOVE CAC DUCT FROM CAC Remove the 4 bolts and CAC duct. Torque: 4.9 N·m (50 kgf·cm, 43 in.·lbf)
