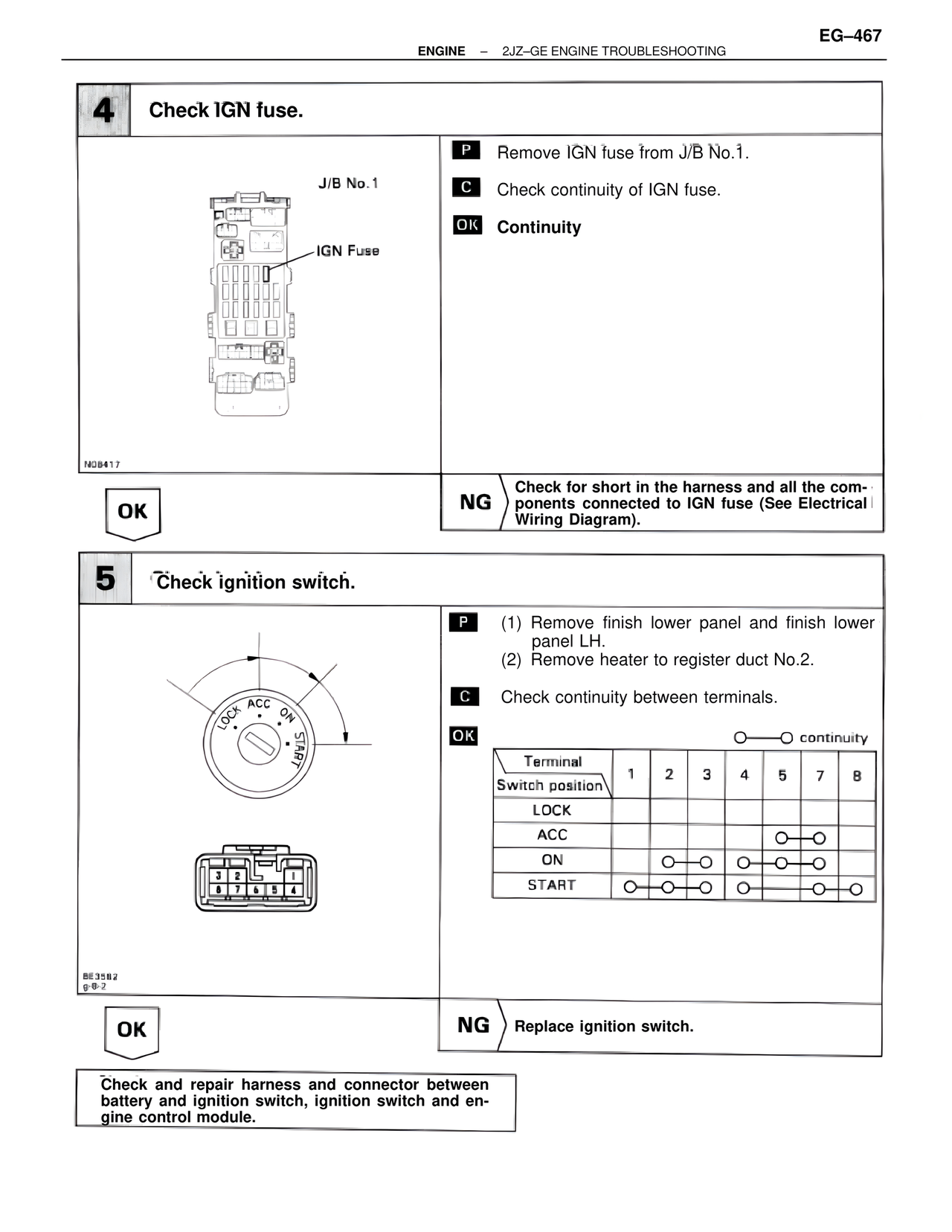

EG-467
ENGINE — 2JZ-GE ENGINE TROUBLESHOOTING
4 Check IGN fuse.
J/B No.1
IGN Fuse
N08417
P Remove IGN fuse from J/B No.1.
C Check continuity of IGN fuse.
OK Continuity
OK
NG Check for short in the harness and all the components connected to IGN fuse (See Electrical Wiring Diagram).
5 Check ignition switch.
LOCK ACC ON START
3 2 1
8 7 6 5
BE35B2
g-B-2
P (1) Remove finish lower panel and finish lower panel LH.
(2) Remove heater to register duct No.2.
C Check continuity between terminals.
OK O——O continuity
Terminal 1 2 3 4 5 7 8
Switch position
LOCK
ACC O——O
ON O——O O——O——O
START O——O——O O O——O
OK
NG Replace ignition switch.
Check and repair harness and connector between battery and ignition switch, ignition switch and engine control module.
