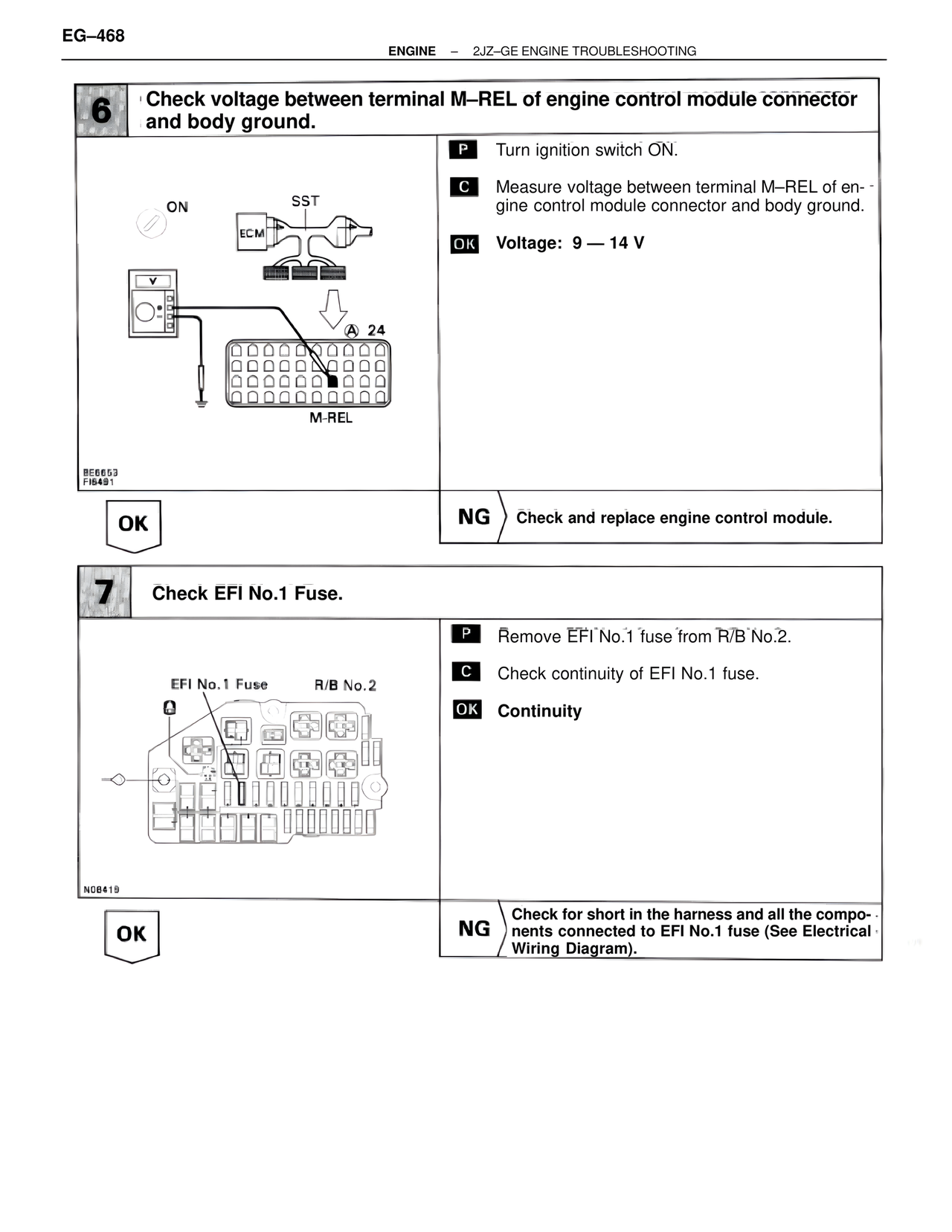

EG–468
ENGINE – 2JZ–GE ENGINE TROUBLESHOOTING
6 Check voltage between terminal M–REL of engine control module connector and body ground.
ON SST
ECM
V
A 24
M-REL
BE6653
FI6491
P Turn ignition switch ON.
C Measure voltage between terminal M–REL of engine control module connector and body ground.
OK Voltage: 9 — 14 V
OK
NG Check and replace engine control module.
7 Check EFI No.1 Fuse.
EFI No.1 Fuse R/B No.2
N08419
P Remove EFI No.1 fuse from R/B No.2.
C Check continuity of EFI No.1 fuse.
OK Continuity
OK
NG Check for short in the harness and all the components connected to EFI No.1 fuse (See Electrical Wiring Diagram).
