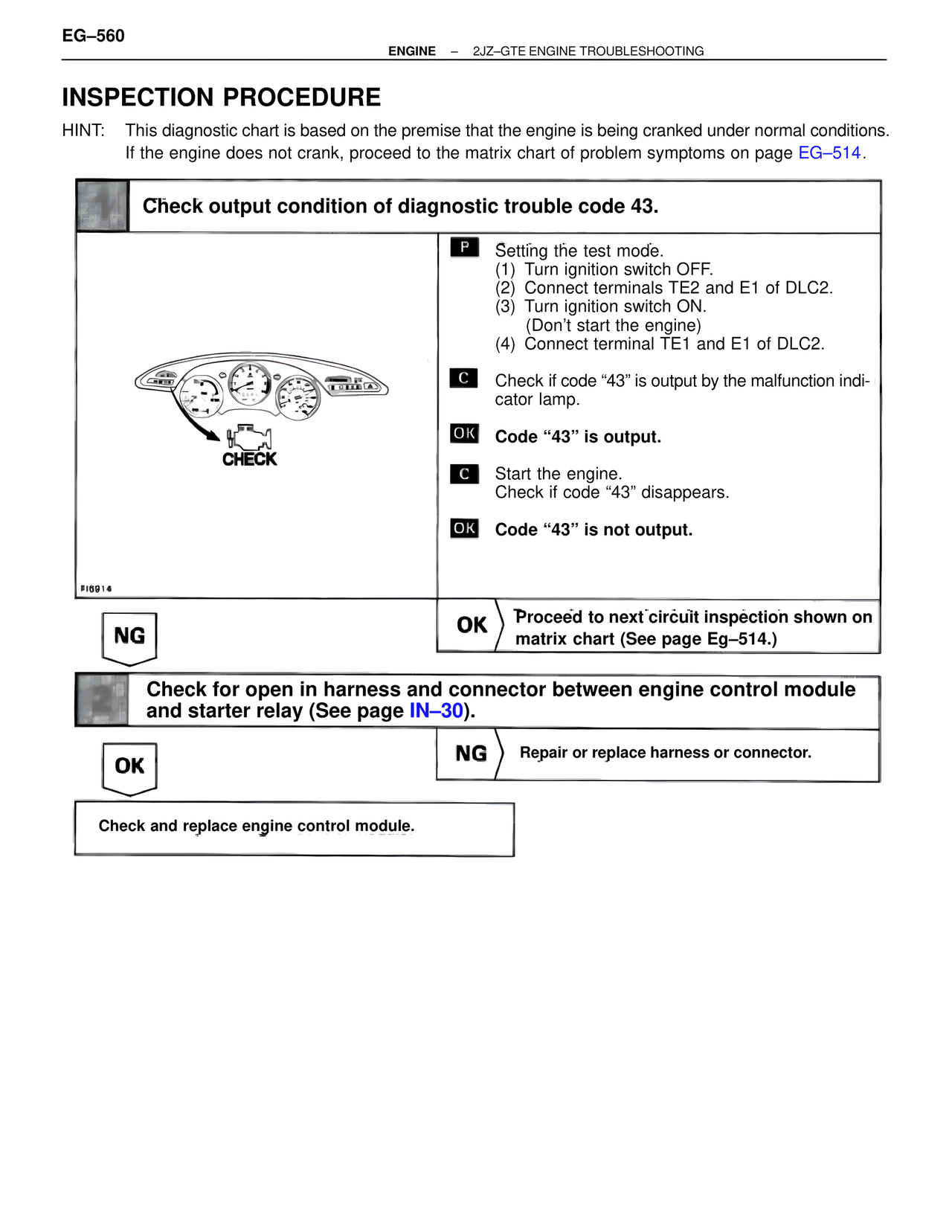

EG–560
ENGINE – 2JZ–GTE ENGINE TROUBLESHOOTING
INSPECTION PROCEDURE
HINT: This diagnostic chart is based on the premise that the engine is being cranked under normal conditions.
If the engine does not crank, proceed to the matrix chart of problem symptoms on page EG–514.
Check output condition of diagnostic trouble code 43.
P Setting the test mode.
(1) Turn ignition switch OFF.
(2) Connect terminals TE2 and E1 of DLC2.
(3) Turn ignition switch ON.
(Don't start the engine)
(4) Connect terminal TE1 and E1 of DLC2.
C Check if code "43" is output by the malfunction indicator lamp.
OK Code "43" is output.
C Start the engine.
Check if code "43" disappears.
OK Code "43" is not output.
FI6914
CHECK
NG
OK Proceed to next circuit inspection shown on matrix chart (See page Eg–514.)
Check for open in harness and connector between engine control module and starter relay (See page IN–30).
OK
NG Repair or replace harness or connector.
Check and replace engine control module.
