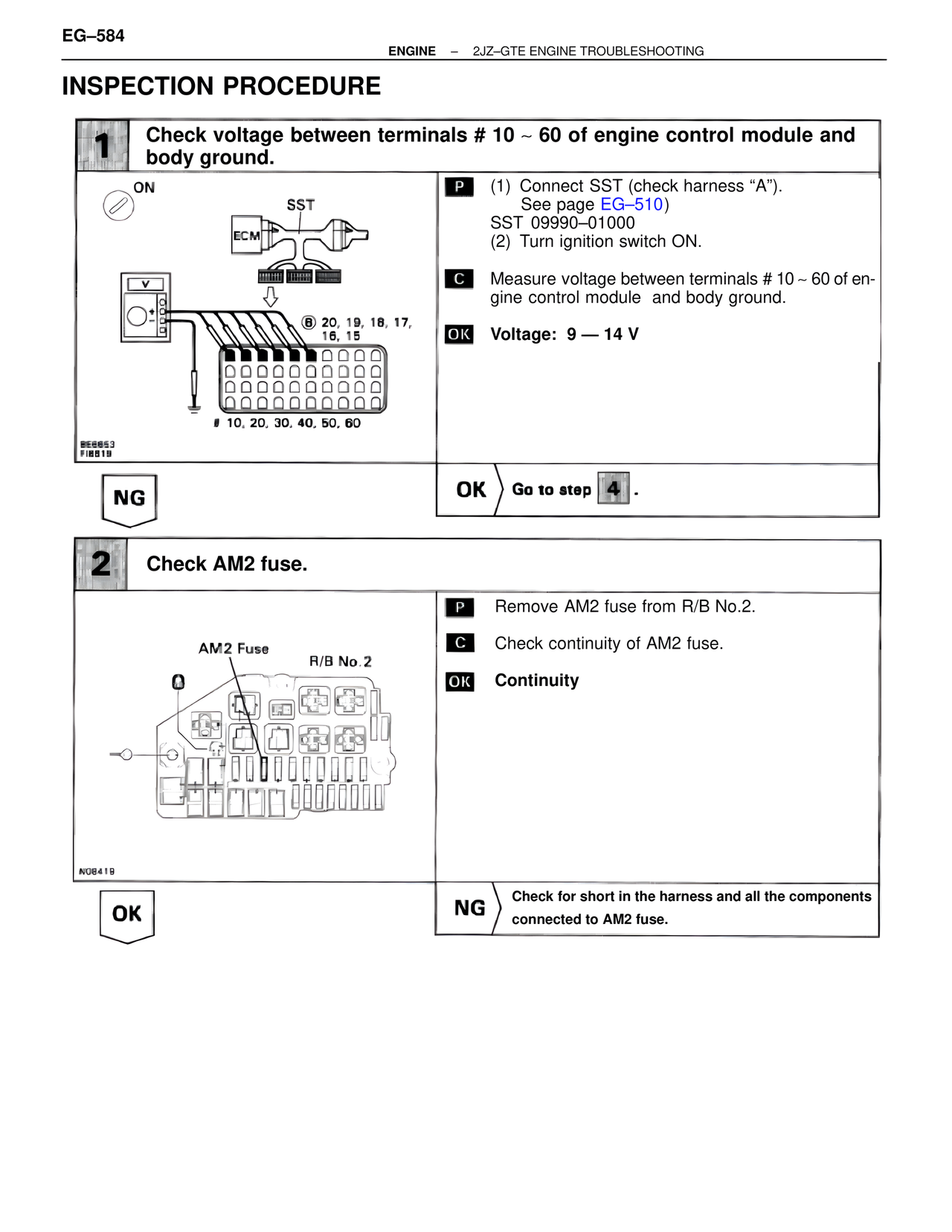

EG–584 ENGINE – 2JZ–GTE ENGINE TROUBLESHOOTING INSPECTION PROCEDURE 1 Check voltage between terminals # 10 ~ 60 of engine control module and body ground. ON SST ECM (B) 20, 19, 18, 17, 16, 15 # 10, 20, 30, 40, 50, 60 8E6653 FI8819 P (1) Connect SST (check harness "A"). See page EG–510) SST 09990–01000 (2) Turn ignition switch ON. C Measure voltage between terminals # 10 ~ 60 of engine control module and body ground. OK Voltage: 9 — 14 V NG OK Go to step 4 . 2 Check AM2 fuse. AM2 Fuse R/B No.2 N08419 P Remove AM2 fuse from R/B No.2. C Check continuity of AM2 fuse. OK Continuity OK NG Check for short in the harness and all the components connected to AM2 fuse.
