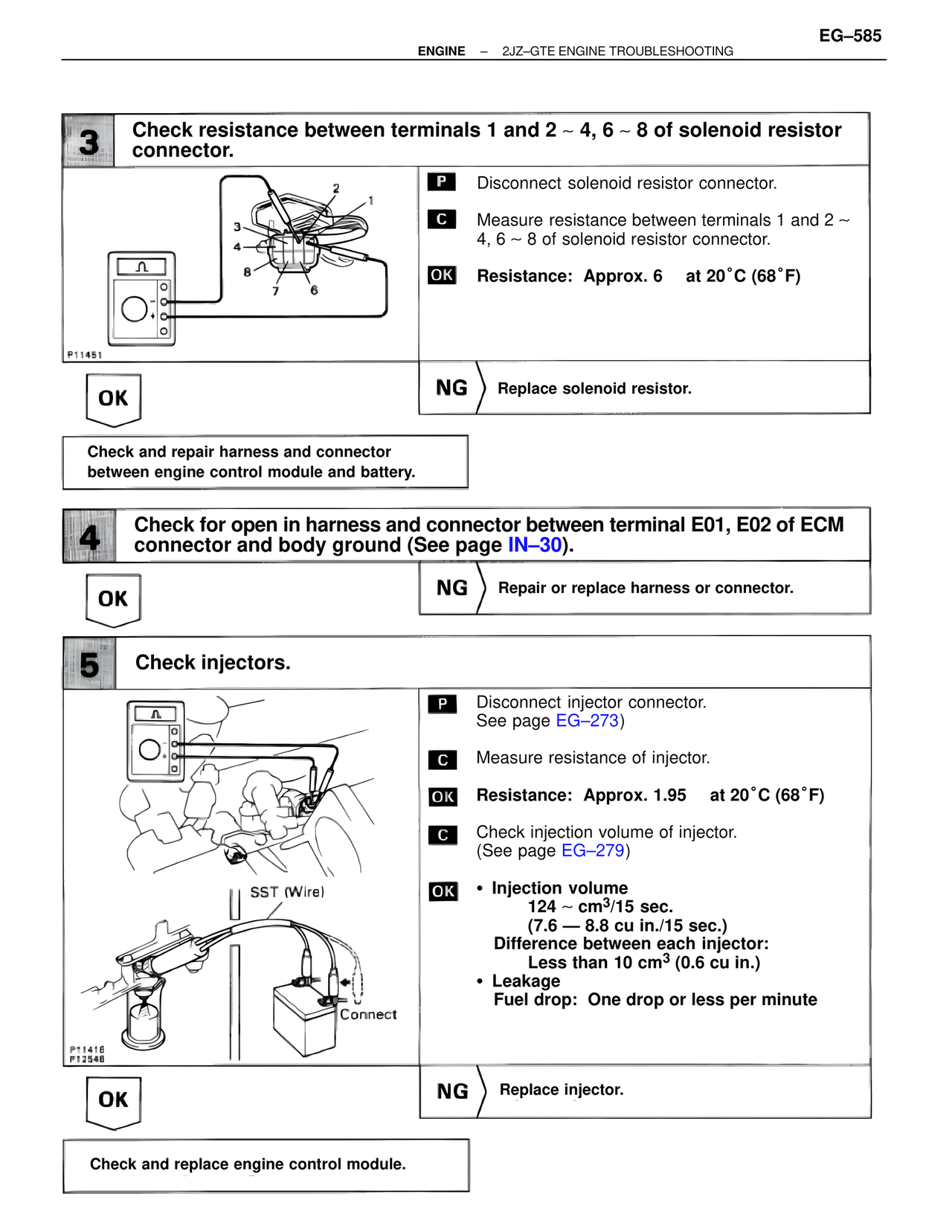

EG–585
ENGINE – 2JZ–GTE ENGINE TROUBLESHOOTING
3 Check resistance between terminals 1 and 2 ~ 4, 6 ~ 8 of solenoid resistor connector.
P Disconnect solenoid resistor connector.
C Measure resistance between terminals 1 and 2 ~ 4, 6 ~ 8 of solenoid resistor connector.
OK Resistance: Approx. 6 at 20°C (68°F)
P11451
OK
NG Replace solenoid resistor.
Check and repair harness and connector between engine control module and battery.
4 Check for open in harness and connector between terminal E01, E02 of ECM connector and body ground (See page IN–30).
OK
NG Repair or replace harness or connector.
5 Check injectors.
P Disconnect injector connector.
See page EG–273)
C Measure resistance of injector.
OK Resistance: Approx. 1.95 at 20°C (68°F)
C Check injection volume of injector.
(See page EG–279)
OK • Injection volume
124 ~ cm³/15 sec.
(7.6 — 8.8 cu in./15 sec.)
Difference between each injector:
Less than 10 cm³ (0.6 cu in.)
• Leakage
Fuel drop: One drop or less per minute
SST (Wire)
Connect
P11416
P12548
OK
NG Replace injector.
Check and replace engine control module.
