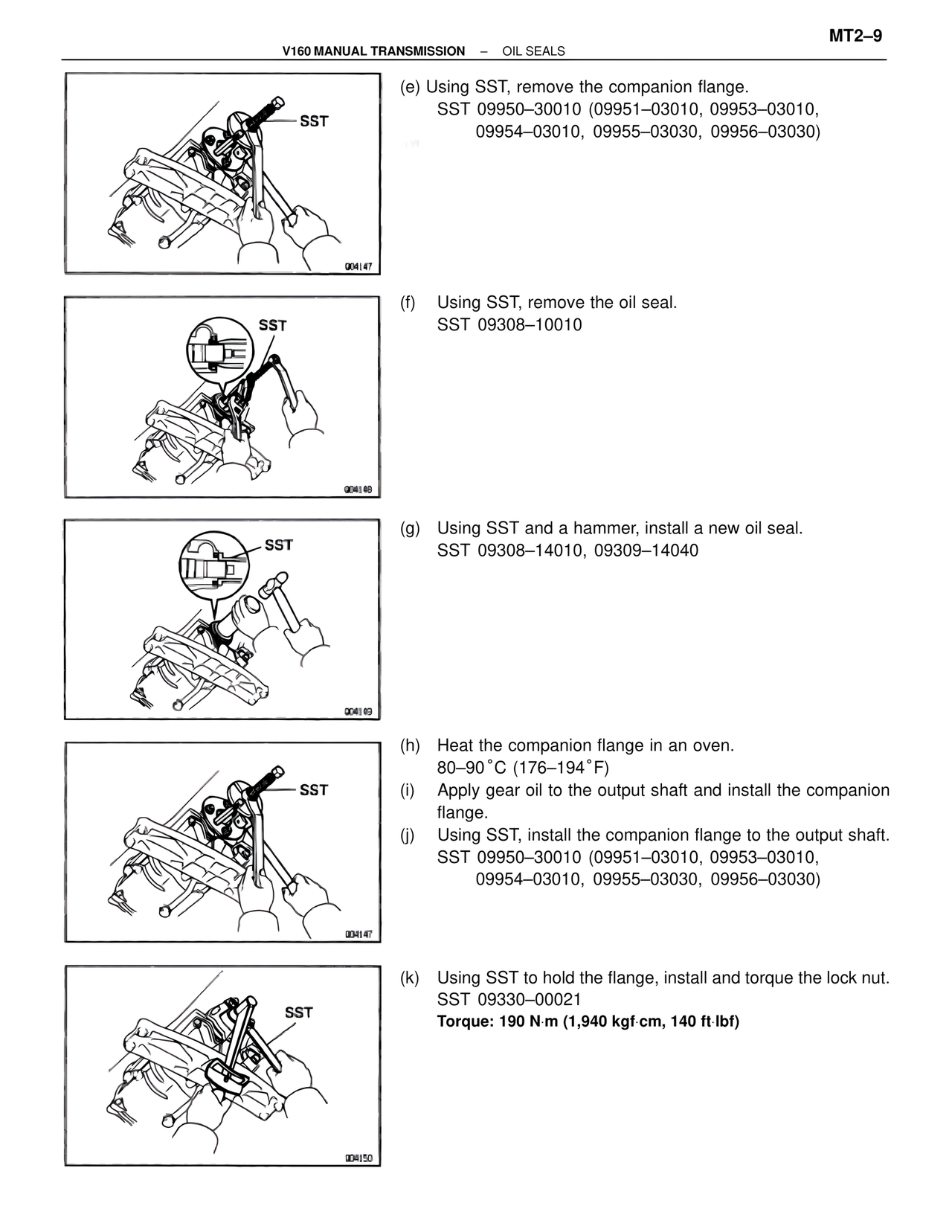

MT2–9 V160 MANUAL TRANSMISSION – OIL SEALS SST 004147 (e) Using SST, remove the companion flange. SST 09950–30010 (09951–03010, 09953–03010, 09954–03010, 09955–03030, 09956–03030) SST 004148 (f) Using SST, remove the oil seal. SST 09308–10010 SST 004149 (g) Using SST and a hammer, install a new oil seal. SST 09308–14010, 09309–14040 SST 004147 (h) Heat the companion flange in an oven. 80–90°C (176–194°F) (i) Apply gear oil to the output shaft and install the companion flange. (j) Using SST, install the companion flange to the output shaft. SST 09950–30010 (09951–03010, 09953–03010, 09954–03010, 09955–03030, 09956–03030) SST 004150 (k) Using SST to hold the flange, install and torque the lock nut. SST 09330–00021 Torque: 190 N·m (1,940 kgf·cm, 140 ft·lbf)
