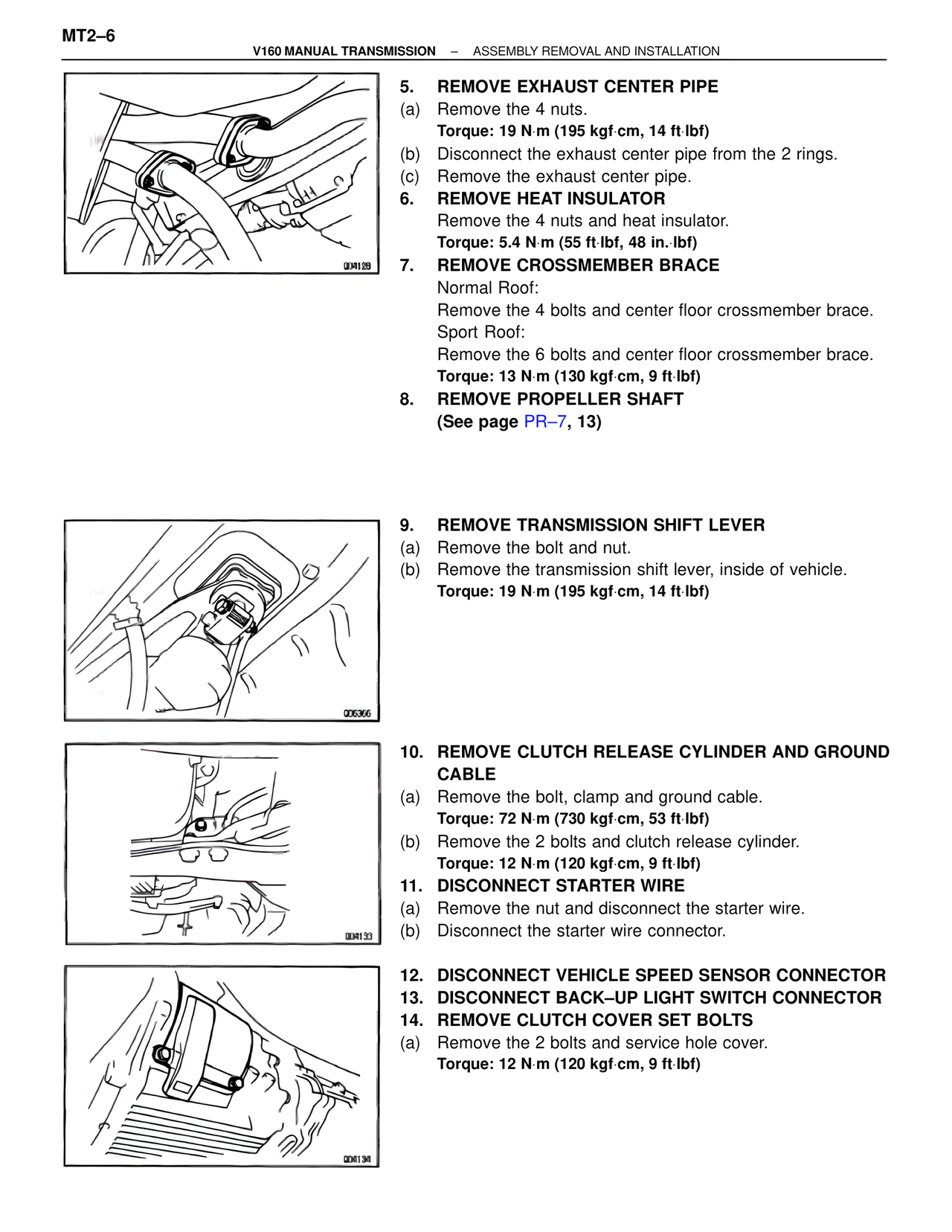

MT2–6 V160 MANUAL TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION 5. REMOVE EXHAUST CENTER PIPE (a) Remove the 4 nuts. Torque: 19 N·m (195 kgf·cm, 14 ft·lbf) (b) Disconnect the exhaust center pipe from the 2 rings. (c) Remove the exhaust center pipe. 6. REMOVE HEAT INSULATOR Remove the 4 nuts and heat insulator. Torque: 5.4 N·m (55 ft·lbf, 48 in.·lbf) 7. REMOVE CROSSMEMBER BRACE Normal Roof: Remove the 4 bolts and center floor crossmember brace. Sport Roof: Remove the 6 bolts and center floor crossmember brace. Torque: 13 N·m (130 kgf·cm, 9 ft·lbf) 8. REMOVE PROPELLER SHAFT (See page PR–7, 13) 9. REMOVE TRANSMISSION SHIFT LEVER (a) Remove the bolt and nut. (b) Remove the transmission shift lever, inside of vehicle. Torque: 19 N·m (195 kgf·cm, 14 ft·lbf) 10. REMOVE CLUTCH RELEASE CYLINDER AND GROUND CABLE (a) Remove the bolt, clamp and ground cable. Torque: 72 N·m (730 kgf·cm, 53 ft·lbf) (b) Remove the 2 bolts and clutch release cylinder. Torque: 12 N·m (120 kgf·cm, 9 ft·lbf) 11. DISCONNECT STARTER WIRE (a) Remove the nut and disconnect the starter wire. (b) Disconnect the starter wire connector. 12. DISCONNECT VEHICLE SPEED SENSOR CONNECTOR 13. DISCONNECT BACK–UP LIGHT SWITCH CONNECTOR 14. REMOVE CLUTCH COVER SET BOLTS (a) Remove the 2 bolts and service hole cover. Torque: 12 N·m (120 kgf·cm, 9 ft·lbf) 004129 005366 004133 004130
