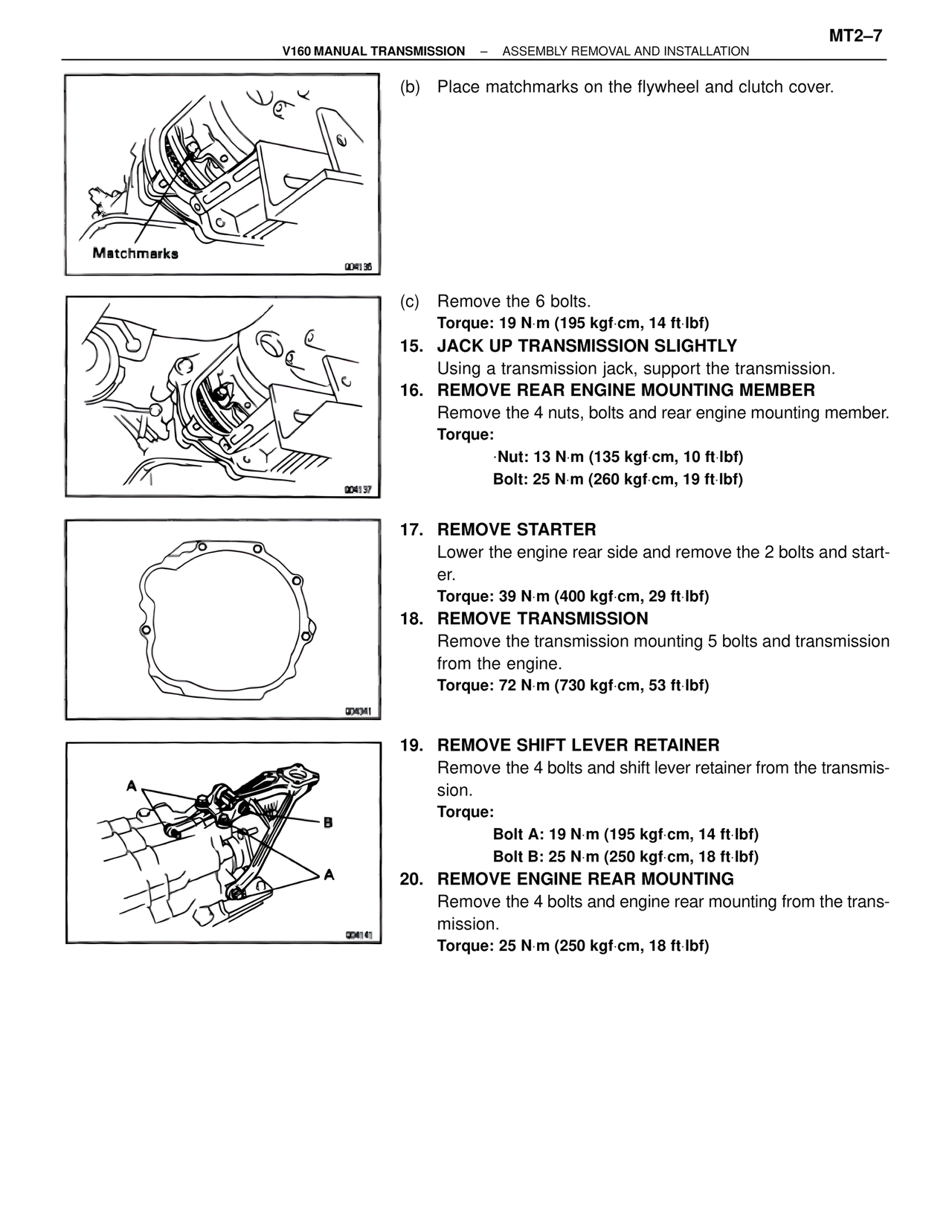

V160 MANUAL TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION
Matchmarks
(b) Place matchmarks on the flywheel and clutch cover.
(c) Remove the 6 bolts.
Torque: 19 N·m (195 kgf·cm, 14 ft·lbf)
15. JACK UP TRANSMISSION SLIGHTLY
Using a transmission jack, support the transmission.
16. REMOVE REAR ENGINE MOUNTING MEMBER
Remove the 4 nuts, bolts and rear engine mounting member.
Torque:
·Nut: 13 N·m (135 kgf·cm, 10 ft·lbf)
Bolt: 25 N·m (260 kgf·cm, 19 ft·lbf)
17. REMOVE STARTER
Lower the engine rear side and remove the 2 bolts and starter.
Torque: 39 N·m (400 kgf·cm, 29 ft·lbf)
18. REMOVE TRANSMISSION
Remove the transmission mounting 5 bolts and transmission from the engine.
Torque: 72 N·m (730 kgf·cm, 53 ft·lbf)
A
B
A
19. REMOVE SHIFT LEVER RETAINER
Remove the 4 bolts and shift lever retainer from the transmission.
Torque:
Bolt A: 19 N·m (195 kgf·cm, 14 ft·lbf)
Bolt B: 25 N·m (250 kgf·cm, 18 ft·lbf)
20. REMOVE ENGINE REAR MOUNTING
Remove the 4 bolts and engine rear mounting from the transmission.
Torque: 25 N·m (250 kgf·cm, 18 ft·lbf)
