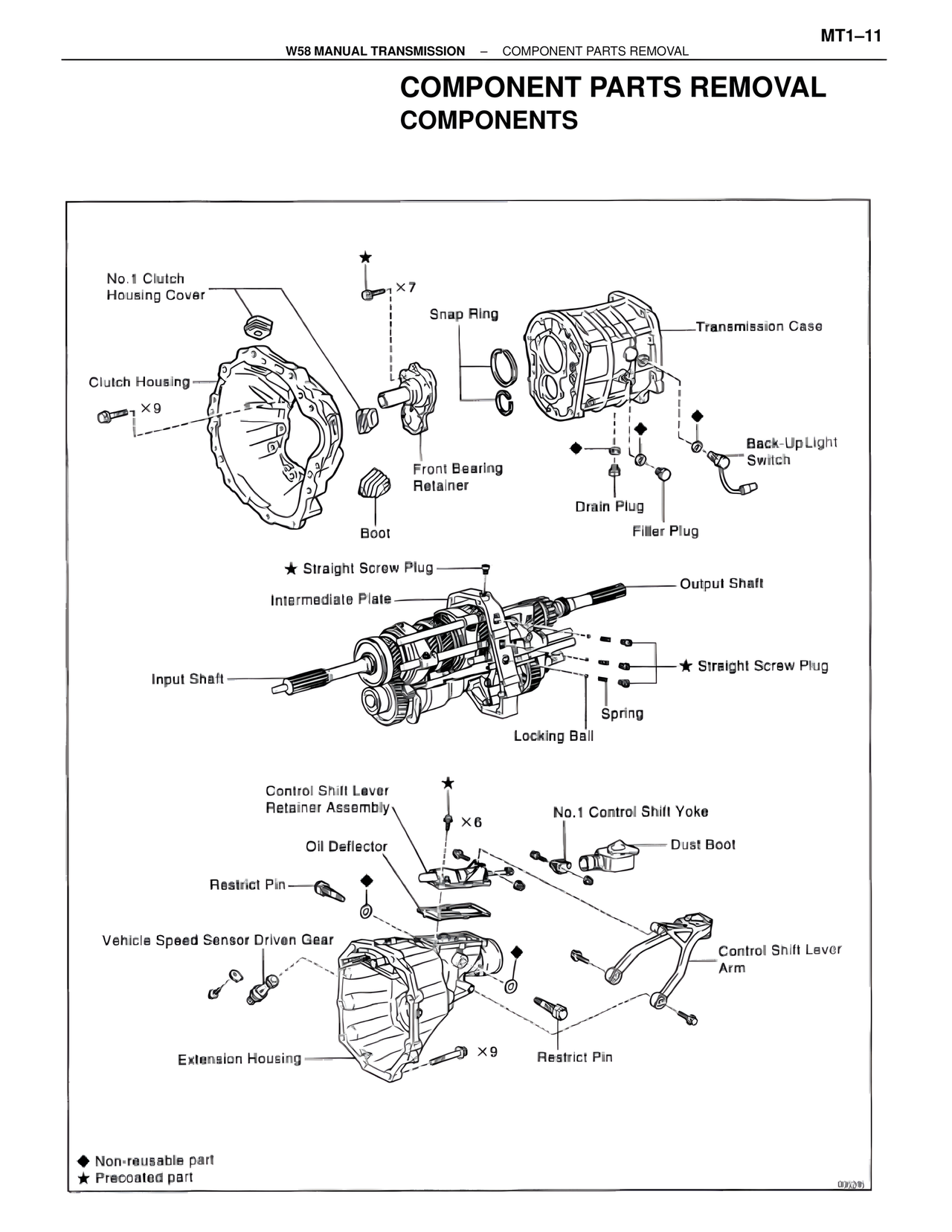

MT1–11 W58 MANUAL TRANSMISSION – COMPONENT PARTS REMOVAL COMPONENT PARTS REMOVAL COMPONENTS No.1 Clutch Housing Cover ★ ×7 Snap Ring Transmission Case Clutch Housing ◆ ×9 Back-Up Light Switch Front Bearing Retainer Drain Plug Boot Filler Plug ★ Straight Screw Plug Output Shaft Intermediate Plate ★ Straight Screw Plug Input Shaft Spring Locking Ball Control Shift Lever Retainer Assembly ★ ×6 No.1 Control Shift Yoke Oil Deflector Dust Boot Restrict Pin ◆ Control Shift Lever Arm Vehicle Speed Sensor Driven Gear ◆ Extension Housing ×9 Restrict Pin ◆ Non-reusable part ★ Precoated part 005245
