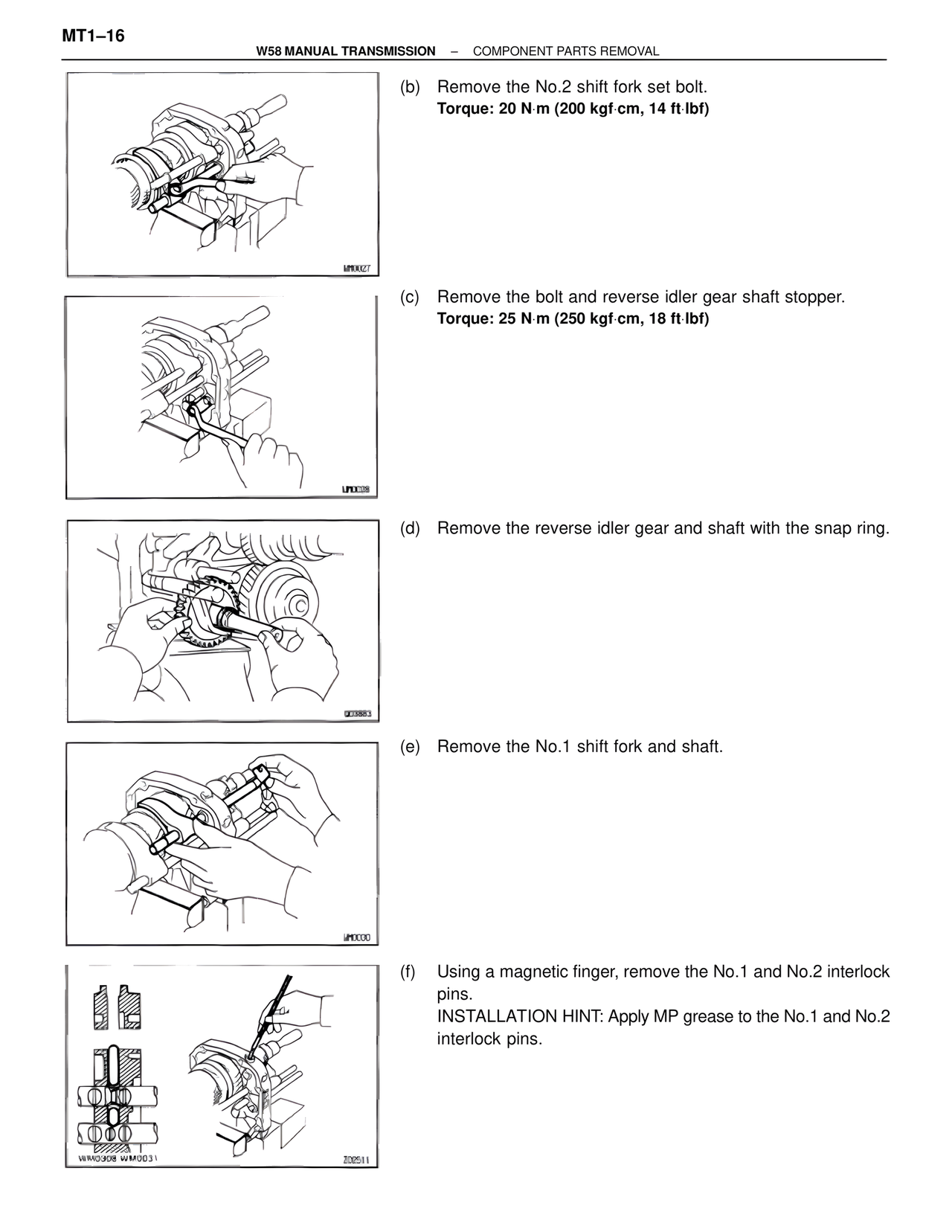

MT1–16
W58 MANUAL TRANSMISSION – COMPONENT PARTS REMOVAL
(b) Remove the No.2 shift fork set bolt.
Torque: 20 N·m (200 kgf·cm, 14 ft·lbf)
MP0027
(c) Remove the bolt and reverse idler gear shaft stopper.
Torque: 25 N·m (250 kgf·cm, 18 ft·lbf)
MP0028
(d) Remove the reverse idler gear and shaft with the snap ring.
G03883
(e) Remove the No.1 shift fork and shaft.
MP0030
(f) Using a magnetic finger, remove the No.1 and No.2 interlock pins.
INSTALLATION HINT: Apply MP grease to the No.1 and No.2 interlock pins.
WM0308 WM0031
Z02511
