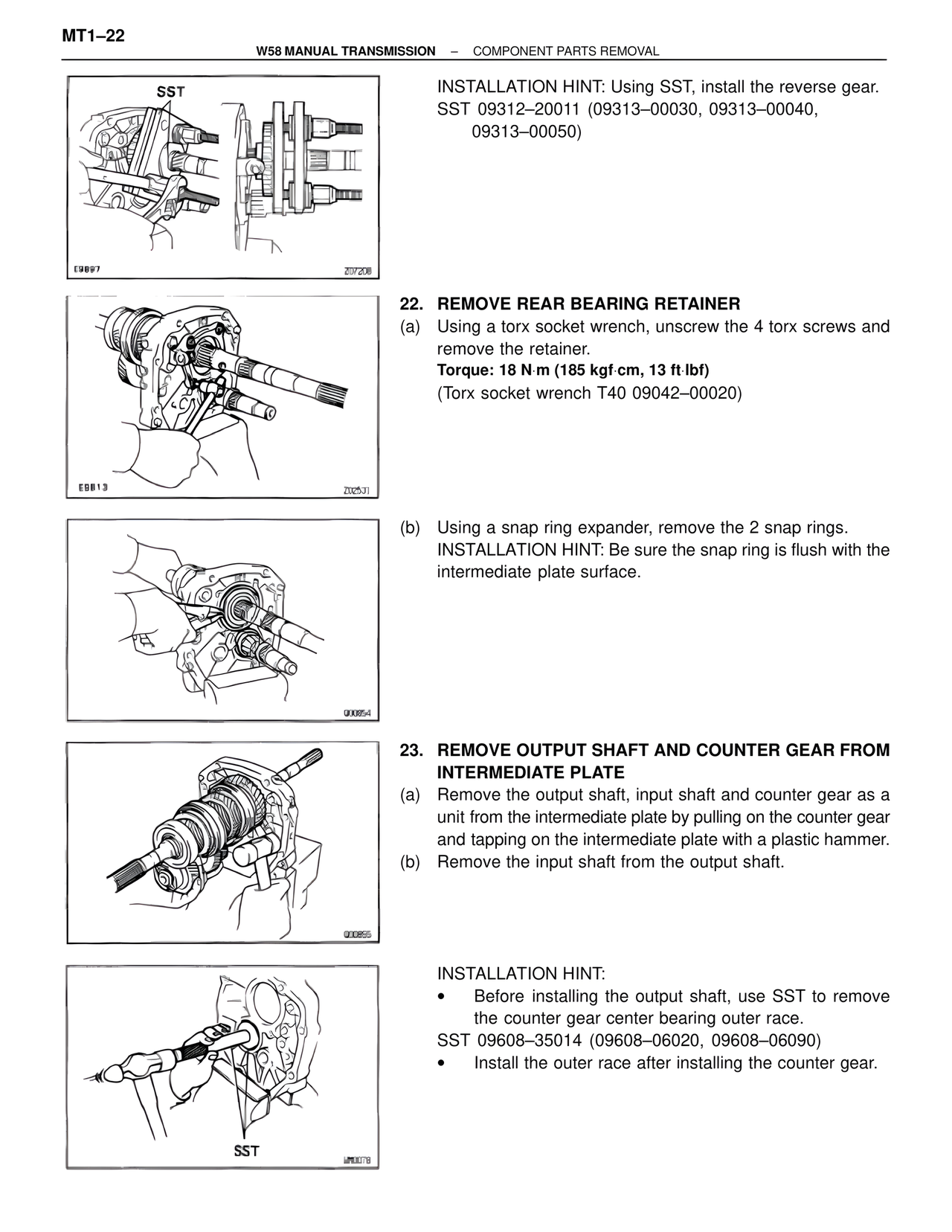

MT1–22 W58 MANUAL TRANSMISSION – COMPONENT PARTS REMOVAL INSTALLATION HINT: Using SST, install the reverse gear. SST 09312–20011 (09313–00030, 09313–00040, 09313–00050) SST E9897 Z07208 22. REMOVE REAR BEARING RETAINER (a) Using a torx socket wrench, unscrew the 4 torx screws and remove the retainer. Torque: 18 N·m (185 kgf·cm, 13 ft·lbf) (Torx socket wrench T40 09042–00020) E6B13 Z02531 (b) Using a snap ring expander, remove the 2 snap rings. INSTALLATION HINT: Be sure the snap ring is flush with the intermediate plate surface. 000854 23. REMOVE OUTPUT SHAFT AND COUNTER GEAR FROM INTERMEDIATE PLATE (a) Remove the output shaft, input shaft and counter gear as a unit from the intermediate plate by pulling on the counter gear and tapping on the intermediate plate with a plastic hammer. (b) Remove the input shaft from the output shaft. 000855 INSTALLATION HINT: • Before installing the output shaft, use SST to remove the counter gear center bearing outer race. SST 09608–35014 (09608–06020, 09608–06090) • Install the outer race after installing the counter gear. SST JP00079
