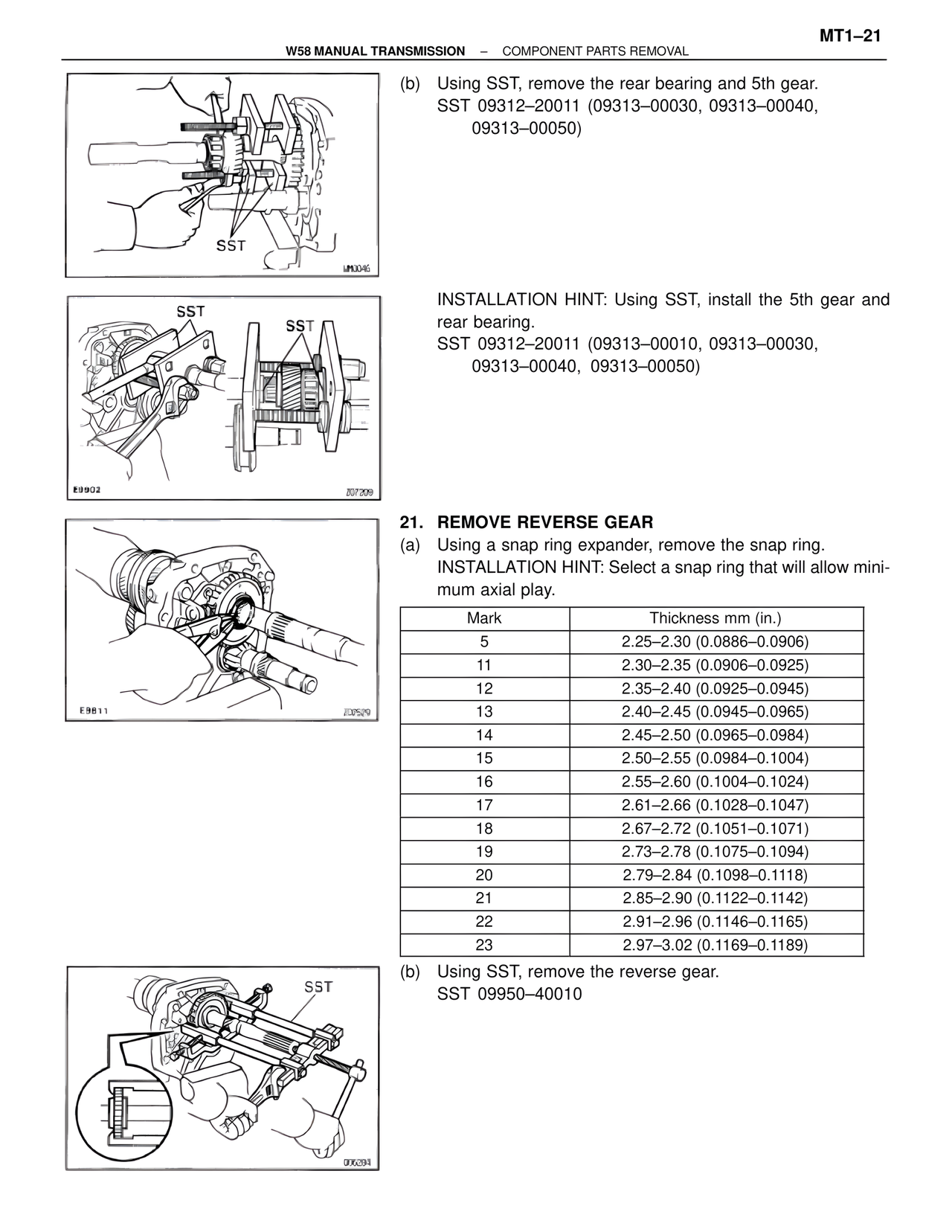

W58 MANUAL TRANSMISSION – COMPONENT PARTS REMOVAL MT1–21 (b) Using SST, remove the rear bearing and 5th gear. SST 09312–20011 (09313–00030, 09313–00040, 09313–00050) INSTALLATION HINT: Using SST, install the 5th gear and rear bearing. SST 09312–20011 (09313–00010, 09313–00030, 09313–00040, 09313–00050) 21. REMOVE REVERSE GEAR (a) Using a snap ring expander, remove the snap ring. INSTALLATION HINT: Select a snap ring that will allow mini- mum axial play. Mark | Thickness mm (in.) 5 | 2.25–2.30 (0.0886–0.0906) 11 | 2.30–2.35 (0.0906–0.0925) 12 | 2.35–2.40 (0.0925–0.0945) 13 | 2.40–2.45 (0.0945–0.0965) 14 | 2.45–2.50 (0.0965–0.0984) 15 | 2.50–2.55 (0.0984–0.1004) 16 | 2.55–2.60 (0.1004–0.1024) 17 | 2.61–2.66 (0.1028–0.1047) 18 | 2.67–2.72 (0.1051–0.1071) 19 | 2.73–2.78 (0.1075–0.1094) 20 | 2.79–2.84 (0.1098–0.1118) 21 | 2.85–2.90 (0.1122–0.1142) 22 | 2.91–2.96 (0.1146–0.1165) 23 | 2.97–3.02 (0.1169–0.1189) (b) Using SST, remove the reverse gear. SST 09950–40010
