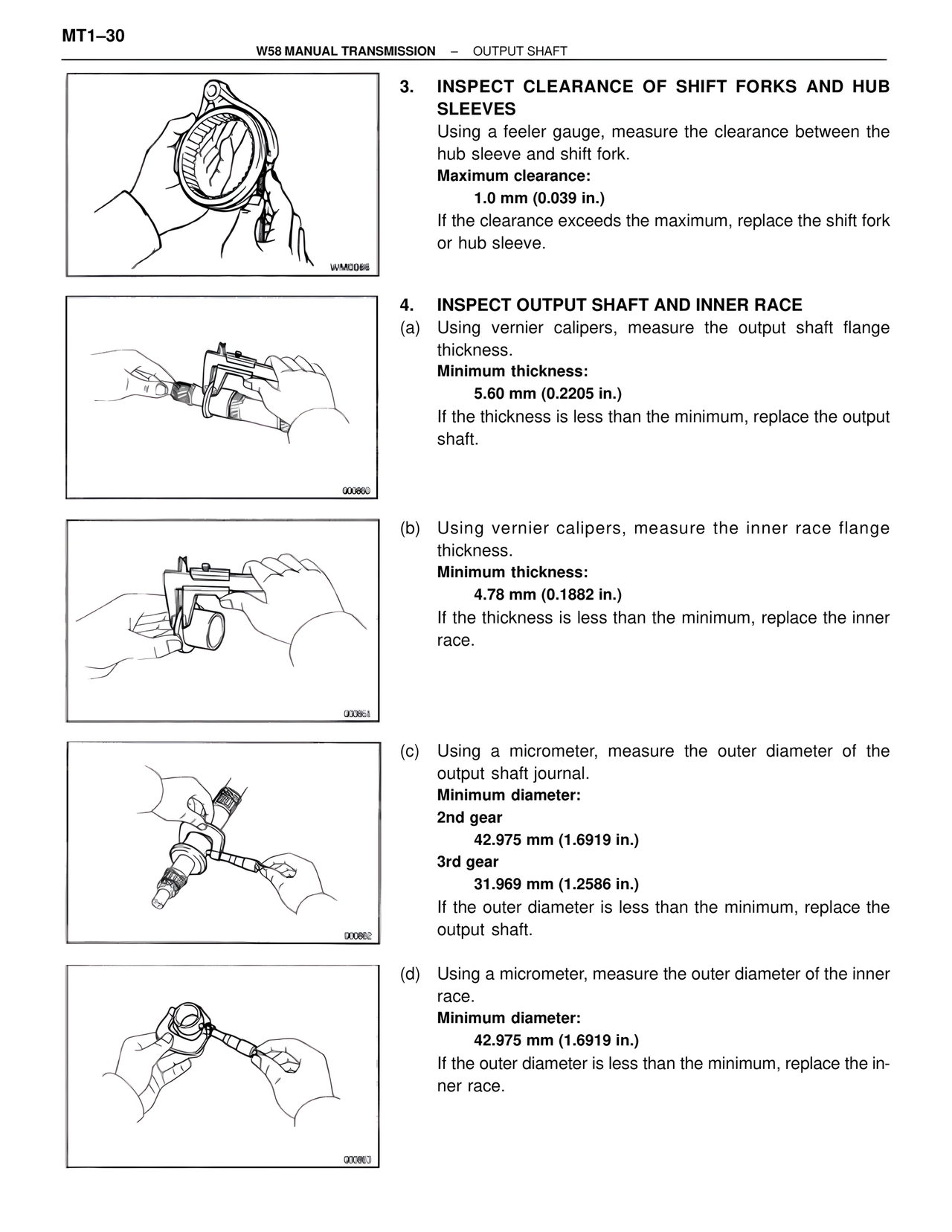

MT1–30 W58 MANUAL TRANSMISSION – OUTPUT SHAFT 3. INSPECT CLEARANCE OF SHIFT FORKS AND HUB SLEEVES Using a feeler gauge, measure the clearance between the hub sleeve and shift fork. Maximum clearance: 1.0 mm (0.039 in.) If the clearance exceeds the maximum, replace the shift fork or hub sleeve. 4. INSPECT OUTPUT SHAFT AND INNER RACE (a) Using vernier calipers, measure the output shaft flange thickness. Minimum thickness: 5.60 mm (0.2205 in.) If the thickness is less than the minimum, replace the output shaft. (b) Using vernier calipers, measure the inner race flange thickness. Minimum thickness: 4.78 mm (0.1882 in.) If the thickness is less than the minimum, replace the inner race. (c) Using a micrometer, measure the outer diameter of the output shaft journal. Minimum diameter: 2nd gear 42.975 mm (1.6919 in.) 3rd gear 31.969 mm (1.2586 in.) If the outer diameter is less than the minimum, replace the output shaft. (d) Using a micrometer, measure the outer diameter of the inner race. Minimum diameter: 42.975 mm (1.6919 in.) If the outer diameter is less than the minimum, replace the inner race.
