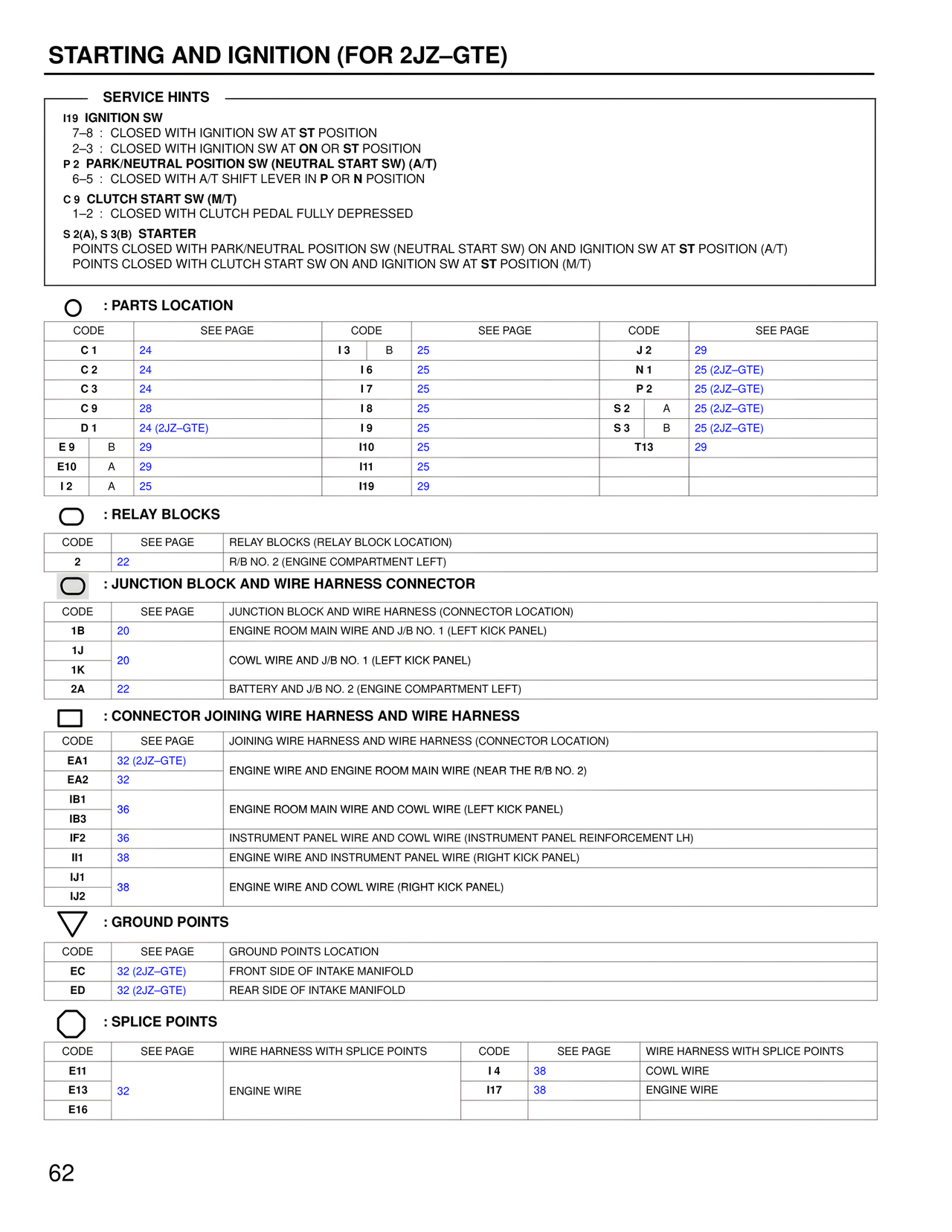

STARTING AND IGNITION (FOR 2JZ–GTE) SERVICE HINTS I19 IGNITION SW 7–8 : CLOSED WITH IGNITION SW AT ST POSITION 2–3 : CLOSED WITH IGNITION SW AT ON OR ST POSITION P 2 PARK/NEUTRAL POSITION SW (NEUTRAL START SW) (A/T) 6–5 : CLOSED WITH A/T SHIFT LEVER IN P OR N POSITION C 9 CLUTCH START SW (M/T) 1–2 : CLOSED WITH CLUTCH PEDAL FULLY DEPRESSED S 2(A), S 3(B) STARTER POINTS CLOSED WITH PARK/NEUTRAL POSITION SW (NEUTRAL START SW) ON AND IGNITION SW AT ST POSITION (A/T) POINTS CLOSED WITH CLUTCH START SW ON AND IGNITION SW AT ST POSITION (M/T) : PARTS LOCATION CODE SEE PAGE C 1 24 C 2 24 C 3 24 C 9 28 D 1 24 (2JZ–GTE) E 9 B 29 E10 A 29 I 2 A 25 CODE SEE PAGE I 3 B 25 I 6 25 I 7 25 I 8 25 I 9 25 I10 25 I11 25 I19 29 CODE SEE PAGE J 2 29 N 1 25 (2JZ–GTE) P 2 25 (2JZ–GTE) S 2 A 25 (2JZ–GTE) S 3 B 25 (2JZ–GTE) T13 29 : RELAY BLOCKS CODE SEE PAGE RELAY BLOCKS (RELAY BLOCK LOCATION) 2 22 R/B NO. 2 (ENGINE COMPARTMENT LEFT) : JUNCTION BLOCK AND WIRE HARNESS CONNECTOR CODE SEE PAGE JUNCTION BLOCK AND WIRE HARNESS (CONNECTOR LOCATION) 1B 20 ENGINE ROOM MAIN WIRE AND J/B NO. 1 (LEFT KICK PANEL) 1J 20 COWL WIRE AND J/B NO. 1 (LEFT KICK PANEL) 1K 2A 22 BATTERY AND J/B NO. 2 (ENGINE COMPARTMENT LEFT) : CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS CODE SEE PAGE JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION) EA1 32 (2JZ–GTE) ENGINE WIRE AND ENGINE ROOM MAIN WIRE (NEAR THE R/B NO. 2) EA2 32 IB1 36 ENGINE ROOM MAIN WIRE AND COWL WIRE (LEFT KICK PANEL) IB3 IF2 36 INSTRUMENT PANEL WIRE AND COWL WIRE (INSTRUMENT PANEL REINFORCEMENT LH) II1 38 ENGINE WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL) IJ1 38 ENGINE WIRE AND COWL WIRE (RIGHT KICK PANEL) IJ2 : GROUND POINTS CODE SEE PAGE GROUND POINTS LOCATION EC 32 (2JZ–GTE) FRONT SIDE OF INTAKE MANIFOLD ED 32 (2JZ–GTE) REAR SIDE OF INTAKE MANIFOLD : SPLICE POINTS CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS E11 ENGINE WIRE E13 32 E16 CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS I 4 38 COWL WIRE I17 38 ENGINE WIRE 62
