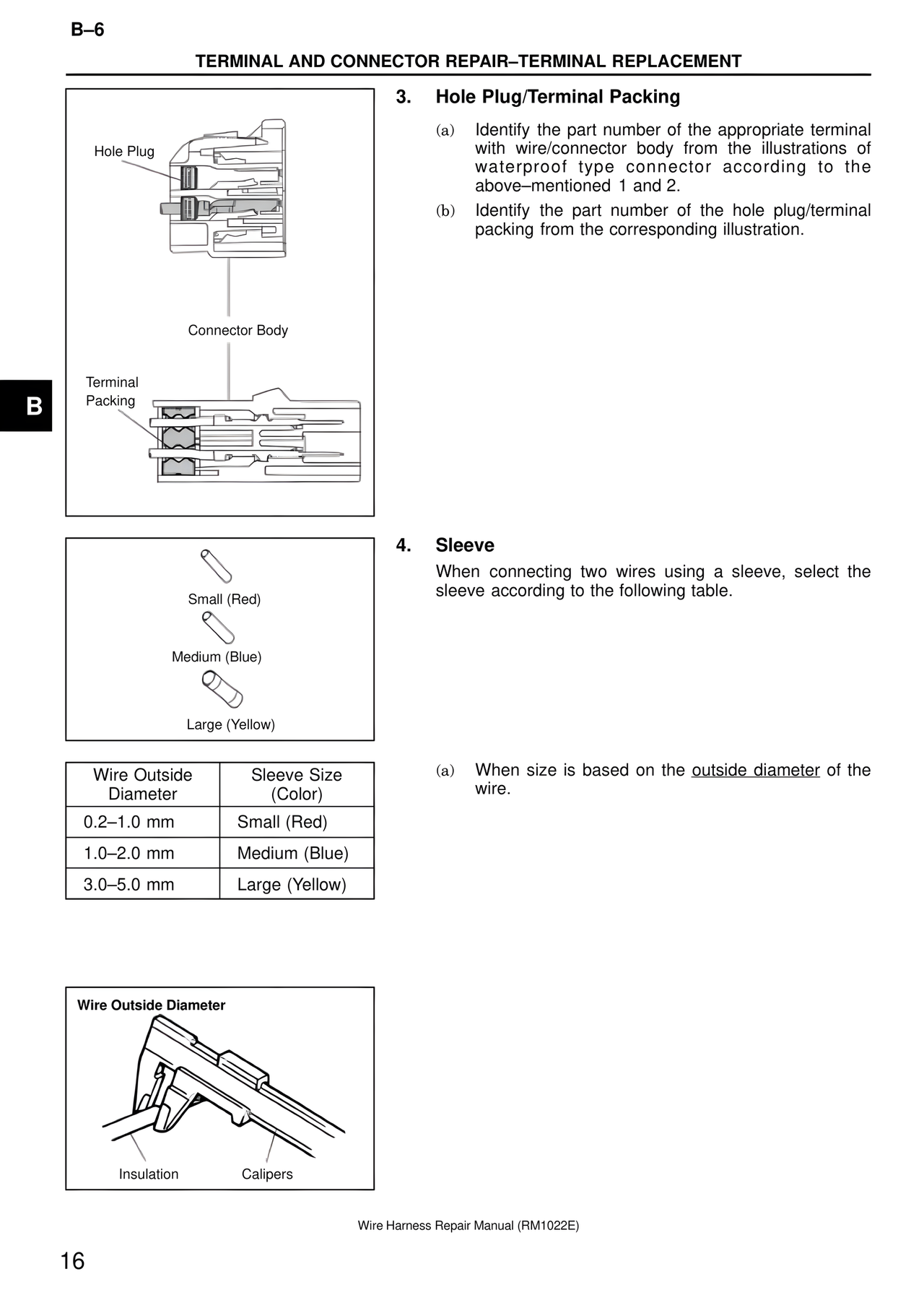

B–6 TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT Hole Plug Connector Body Terminal Packing 3. Hole Plug/Terminal Packing (a) Identify the part number of the appropriate terminal with wire/connector body from the illustrations of waterproof type connector according to the above–mentioned 1 and 2. (b) Identify the part number of the hole plug/terminal packing from the corresponding illustration. Small (Red) Medium (Blue) Large (Yellow) 4. Sleeve When connecting two wires using a sleeve, select the sleeve according to the following table. Wire Outside Diameter Sleeve Size (Color) 0.2–1.0 mm Small (Red) 1.0–2.0 mm Medium (Blue) 3.0–5.0 mm Large (Yellow) (a) When size is based on the outside diameter of the wire. Wire Outside Diameter Insulation Calipers Wire Harness Repair Manual (RM1022E) 16
