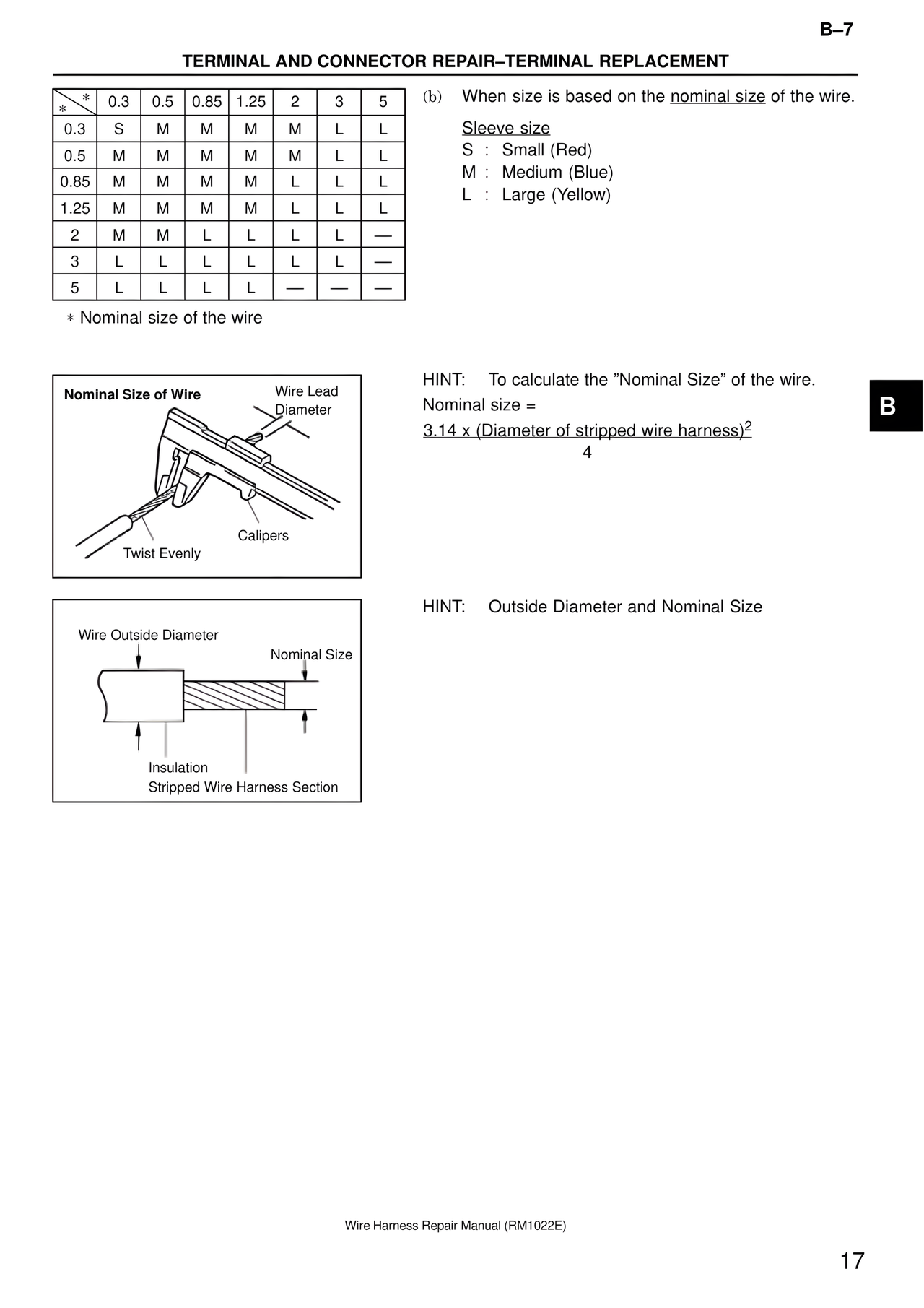

B–7 TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT * | 0.3 | 0.5 | 0.85 | 1.25 | 2 | 3 | 5 0.3 | S | M | M | M | M | L | L 0.5 | M | M | M | M | M | L | L 0.85 | M | M | M | M | L | L | L 1.25 | M | M | M | M | L | L | L 2 | M | M | L | L | L | L | — 3 | L | L | L | L | L | L | — 5 | L | L | L | L | — | — | — * Nominal size of the wire (b) When size is based on the nominal size of the wire. Sleeve size S : Small (Red) M : Medium (Blue) L : Large (Yellow) Nominal Size of Wire Wire Lead Diameter Twist Evenly Calipers HINT: To calculate the "Nominal Size" of the wire. Nominal size = 3.14 x (Diameter of stripped wire harness)² 4 Wire Outside Diameter Nominal Size Insulation Stripped Wire Harness Section HINT: Outside Diameter and Nominal Size B Wire Harness Repair Manual (RM1022E) 17
