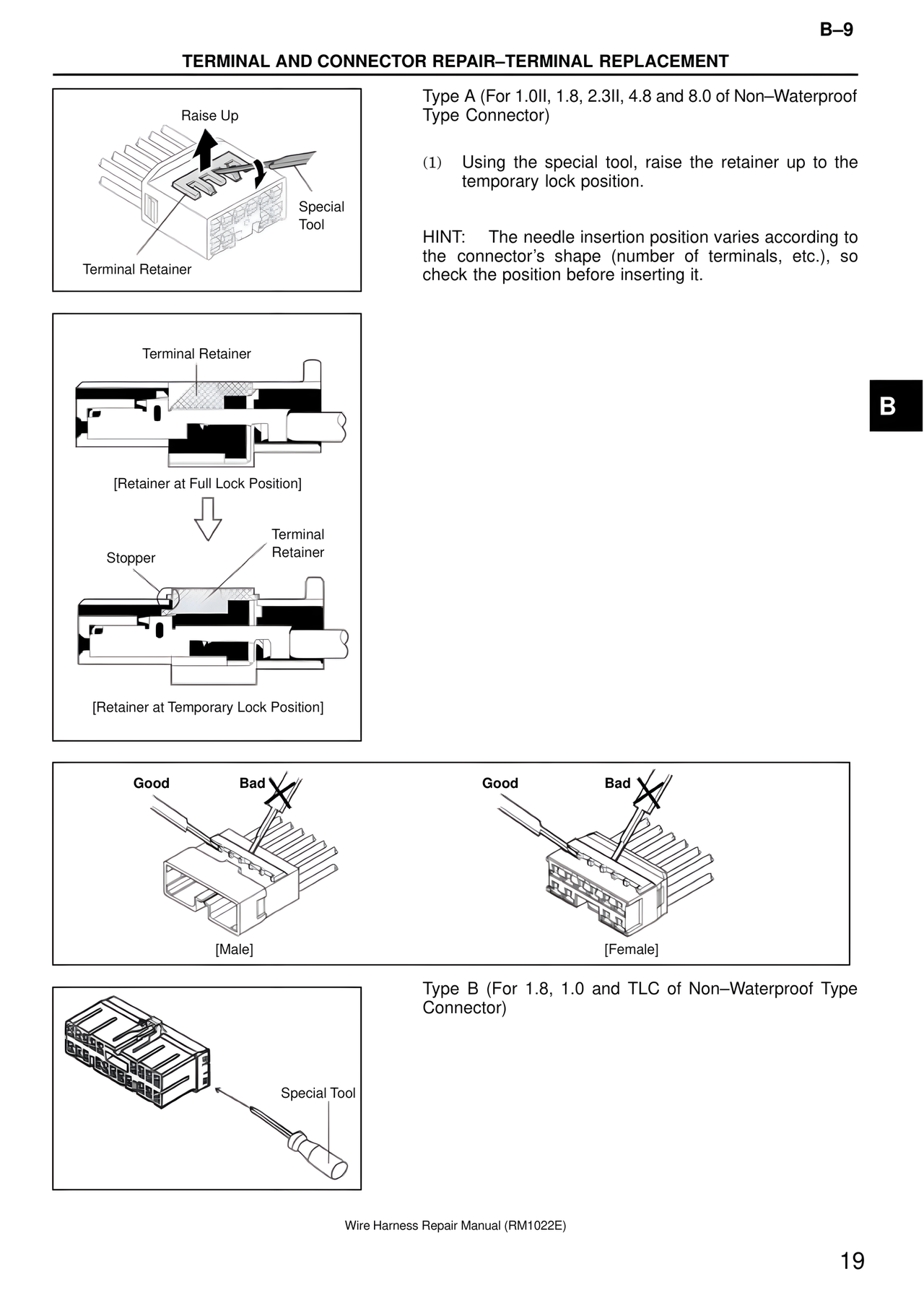

B–9 TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT Raise Up Special Tool Terminal Retainer Type A (For 1.0II, 1.8, 2.3II, 4.8 and 8.0 of Non–Waterproof Type Connector) (1) Using the special tool, raise the retainer up to the temporary lock position. HINT: The needle insertion position varies according to the connector's shape (number of terminals, etc.), so check the position before inserting it. Terminal Retainer [Retainer at Full Lock Position] Stopper Terminal Retainer [Retainer at Temporary Lock Position] Good Bad [Male] Good Bad [Female] Type B (For 1.8, 1.0 and TLC of Non–Waterproof Type Connector) Special Tool Wire Harness Repair Manual (RM1022E) 19 B
