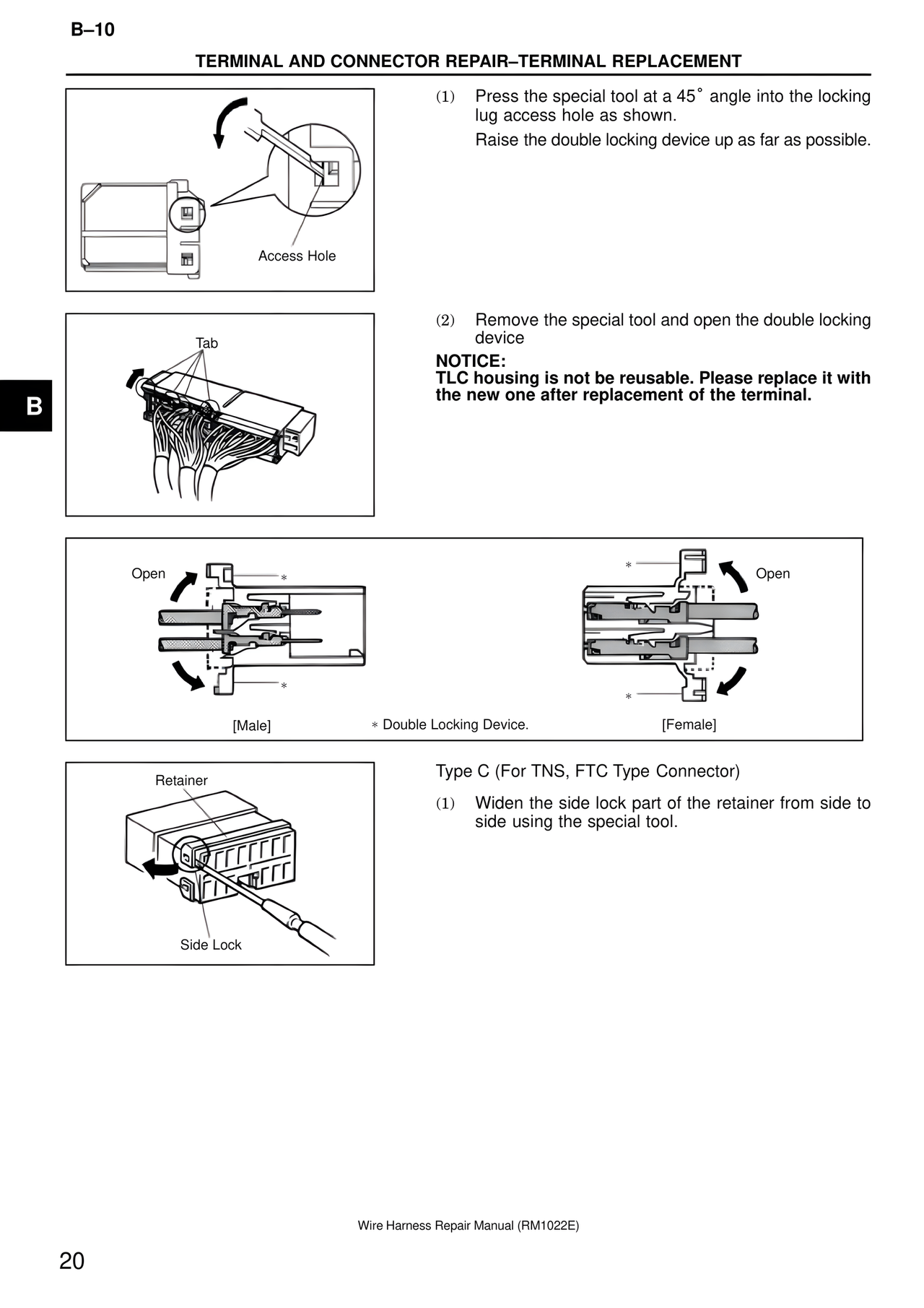

B–10 TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT Access Hole (1) Press the special tool at a 45° angle into the locking lug access hole as shown. Raise the double locking device up as far as possible. Tab (2) Remove the special tool and open the double locking device NOTICE: TLC housing is not be reusable. Please replace it with the new one after replacement of the terminal. Open [Male] * Double Locking Device. Open [Female] Retainer Side Lock Type C (For TNS, FTC Type Connector) (1) Widen the side lock part of the retainer from side to side using the special tool. Wire Harness Repair Manual (RM1022E) 20
