D–138

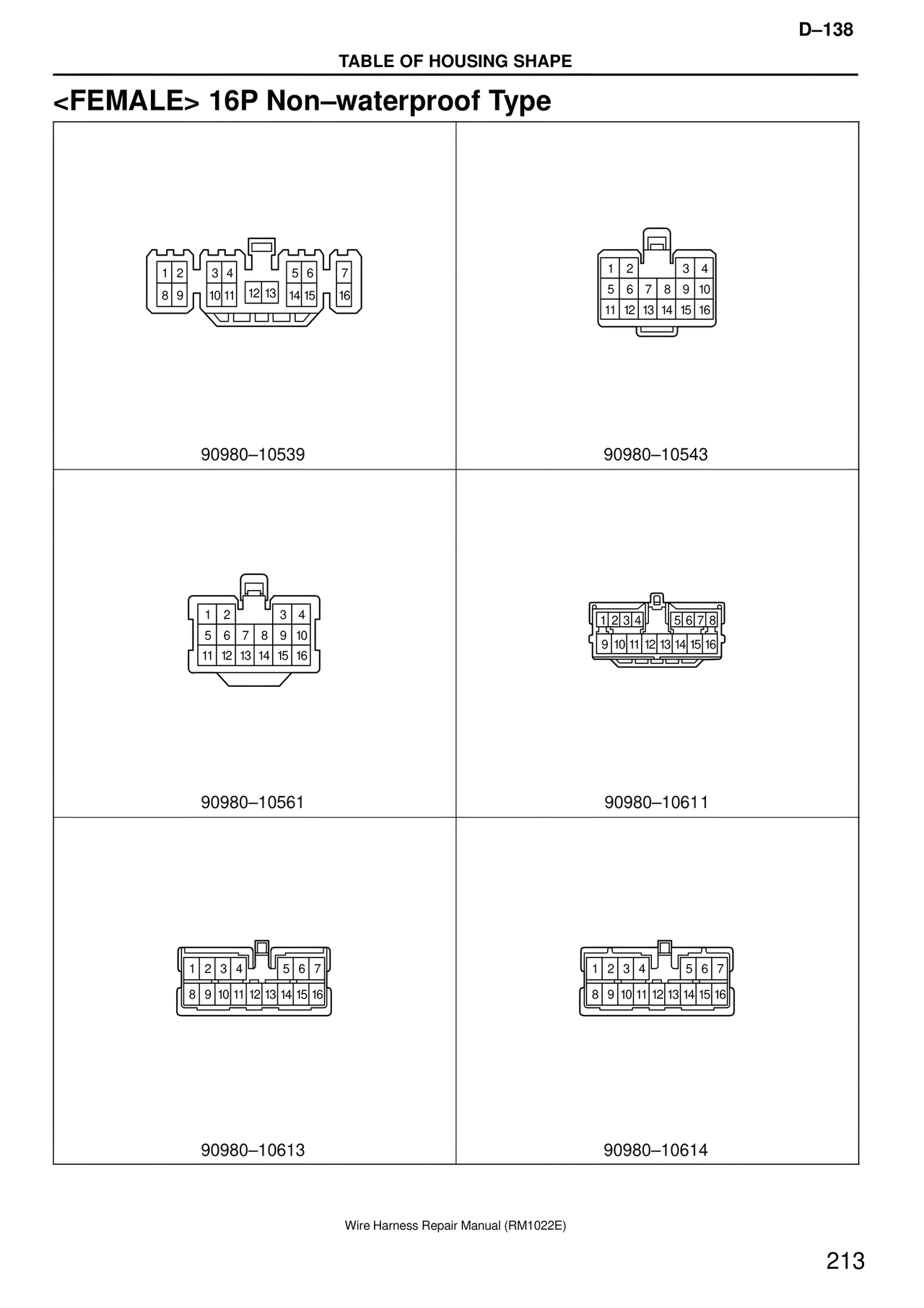

TABLE OF HOUSING SHAPE
<FEMALE> 16P Non–waterproof Type
1 2 3 4 5 6 7
8 9 10 11 12 13 14 15 16
90980–10539
1 2 3 4
5 6 7 8 9 10
11 12 13 14 15 16
90980–10543
1 2 3 4
5 6 7 8 9 10
11 12 13 14 15 16
90980–10561
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
90980–10611
1 2 3 4 5 6 7
8 9 10 11 12 13 14 15 16
90980–10613
1 2 3 4 5 6 7
8 9 10 11 12 13 14 15 16
90980–10614
Wire Harness Repair Manual (RM1022E)
213
