D–139

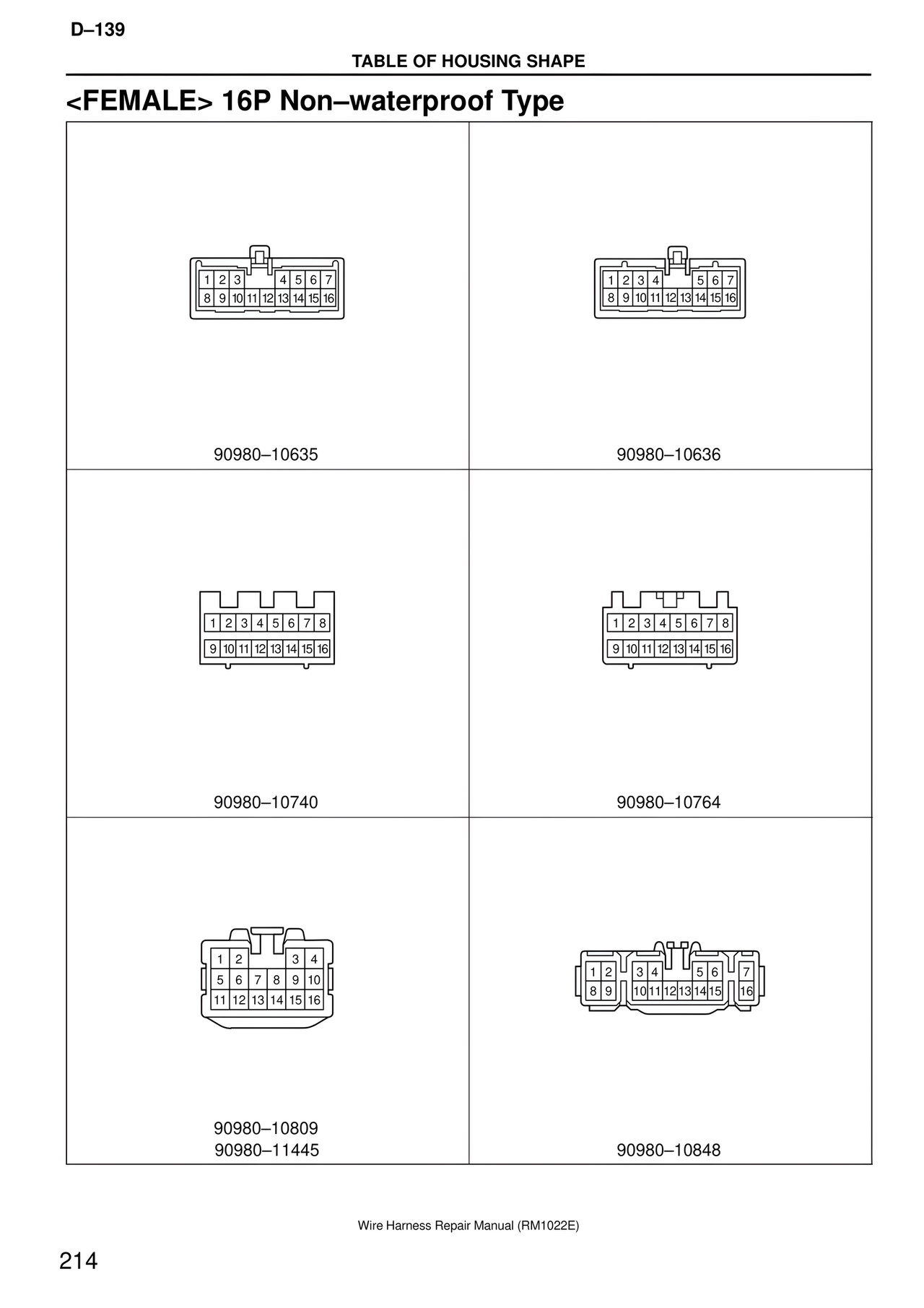

TABLE OF HOUSING SHAPE
<FEMALE> 16P Non–waterproof Type
1 2 3 4 5 6 7
8 9 10 11 12 13 14 15 16
90980–10635
1 2 3 4 5 6 7
8 9 10 11 12 13 14 15 16
90980–10636
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
90980–10740
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
90980–10764
1 2 3 4
5 6 7 8 9 10
11 12 13 14 15 16
90980–10809
90980–11445
1 2 3 4 5 6 7
8 9 10 11 12 13 14 15 16
90980–10848
Wire Harness Repair Manual (RM1022E)
214
