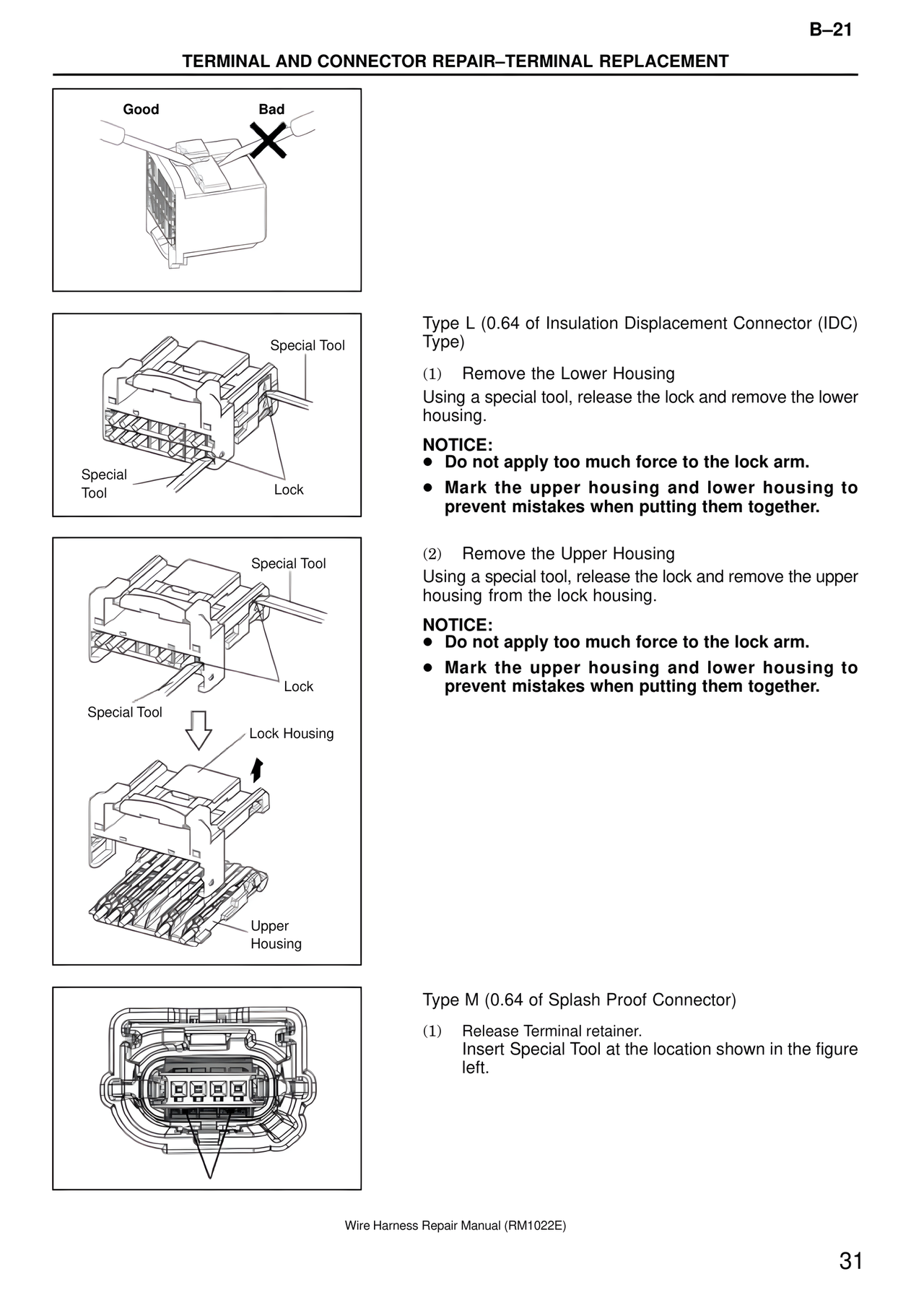

B–21
TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT
Good Bad
Special Tool
Special
Tool Lock
Special Tool
Lock
Special Tool
Lock Housing
Upper
Housing
Type L (0.64 of Insulation Displacement Connector (IDC)
Type)
(1) Remove the Lower Housing
Using a special tool, release the lock and remove the lower
housing.
NOTICE:
● Do not apply too much force to the lock arm.
● Mark the upper housing and lower housing to
prevent mistakes when putting them together.
(2) Remove the Upper Housing
Using a special tool, release the lock and remove the upper
housing from the lock housing.
NOTICE:
● Do not apply too much force to the lock arm.
● Mark the upper housing and lower housing to
prevent mistakes when putting them together.
Type M (0.64 of Splash Proof Connector)
(1) Release Terminal retainer.
Insert Special Tool at the location shown in the figure
left.
Wire Harness Repair Manual (RM1022E)
31
