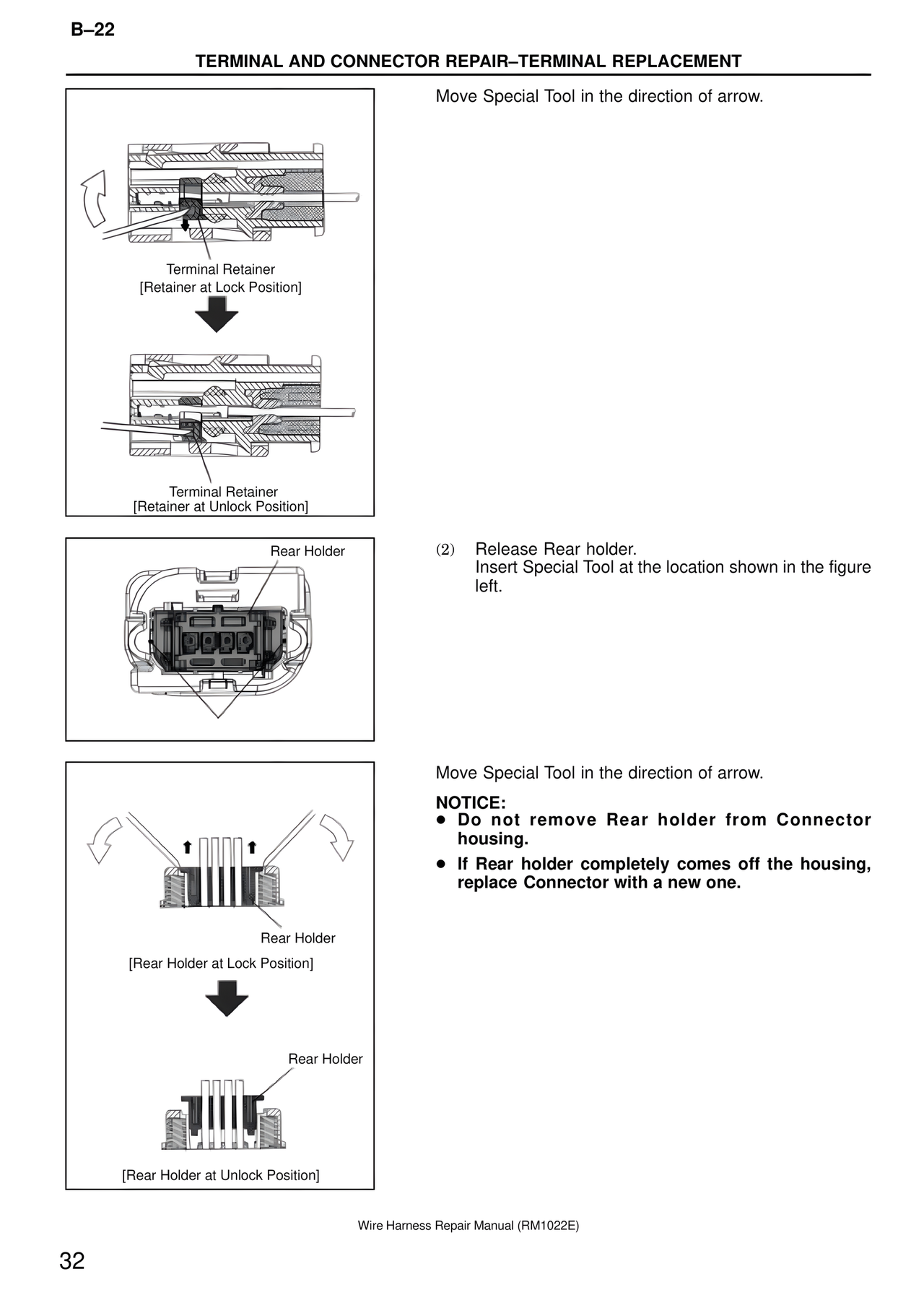

B–22 TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT Move Special Tool in the direction of arrow. Terminal Retainer [Retainer at Lock Position] Terminal Retainer [Retainer at Unlock Position] Rear Holder (2) Release Rear holder. Insert Special Tool at the location shown in the figure left. Move Special Tool in the direction of arrow. NOTICE: ● Do not remove Rear holder from Connector housing. ● If Rear holder completely comes off the housing, replace Connector with a new one. Rear Holder [Rear Holder at Lock Position] Rear Holder [Rear Holder at Unlock Position] Wire Harness Repair Manual (RM1022E) 32
