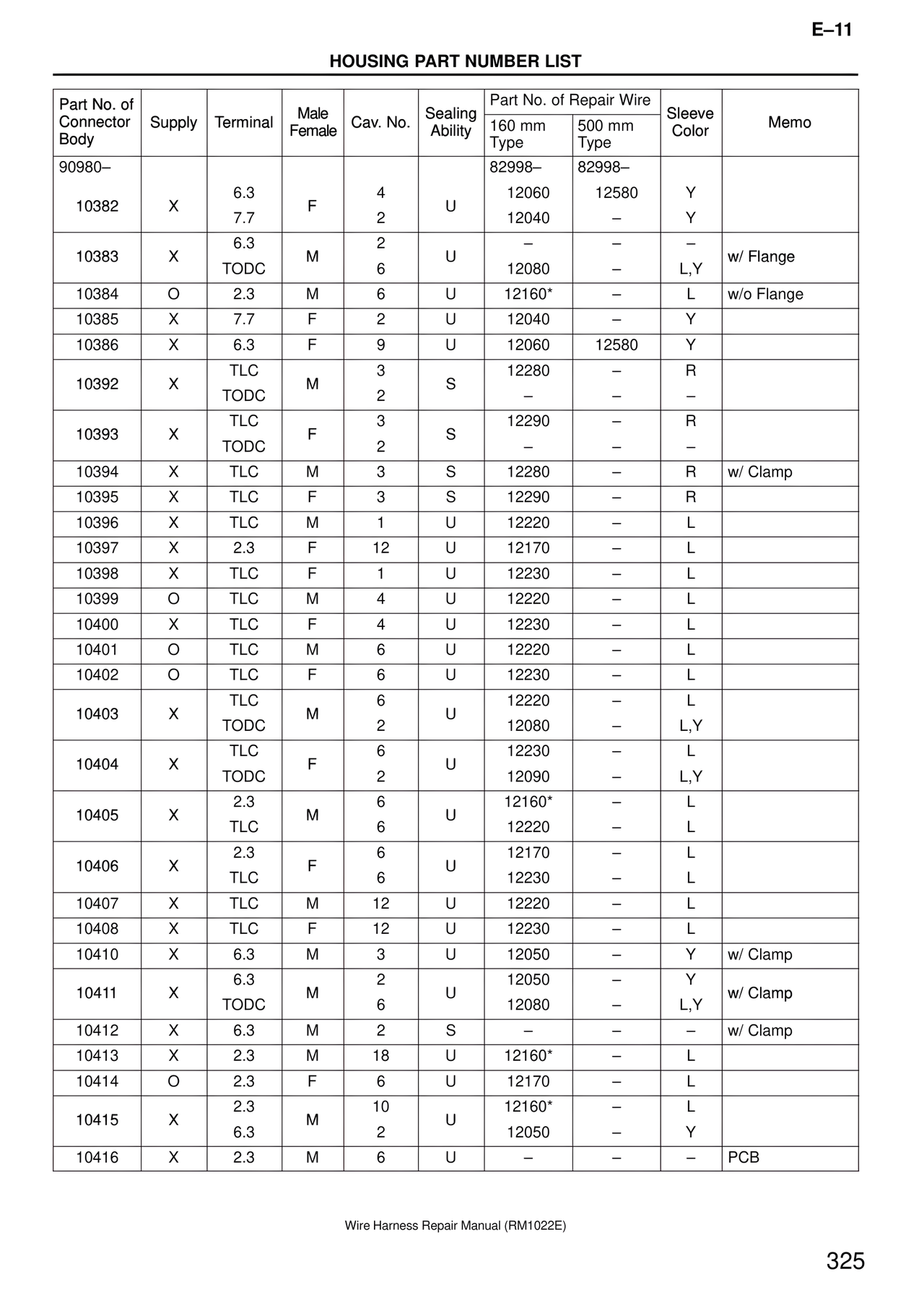

E–11 HOUSING PART NUMBER LIST Part No. of Connector Body | Supply | Terminal | Male Female | Cav. No. | Sealing Ability | Part No. of Repair Wire 160 mm Type | Part No. of Repair Wire 500 mm Type | Sleeve Color | Memo 90980– 10382 | X | 6.3 | F | 4 | U | 82998–12060 | 82998–12580 | Y | | 7.7 | F | 2 | U | 82998–12040 | – | Y 10383 | X | 6.3 | M | 2 | U | – | – | – | w/ Flange | | TODC | M | 6 | U | 12080 | – | L,Y 10384 | O | 2.3 | M | 6 | U | 12160* | – | L | w/o Flange 10385 | X | 7.7 | F | 2 | U | 12040 | – | Y 10386 | X | 6.3 | F | 9 | U | 12060 | 12580 | Y 10392 | X | TLC | M | 3 | S | 12280 | – | R | | TODC | M | 2 | S | – | – | – 10393 | X | TLC | F | 3 | S | 12290 | – | R | | TODC | F | 2 | S | – | – | – 10394 | X | TLC | M | 3 | S | 12280 | – | R | w/ Clamp 10395 | X | TLC | F | 3 | S | 12290 | – | R 10396 | X | TLC | M | 1 | U | 12220 | – | L 10397 | X | 2.3 | F | 12 | U | 12170 | – | L 10398 | X | TLC | F | 1 | U | 12230 | – | L 10399 | O | TLC | M | 4 | U | 12220 | – | L 10400 | X | TLC | F | 4 | U | 12230 | – | L 10401 | O | TLC | M | 6 | U | 12220 | – | L 10402 | O | TLC | F | 6 | U | 12230 | – | L 10403 | X | TLC | M | 6 | U | 12220 | – | L | | TODC | M | 2 | U | 12080 | – | L,Y 10404 | X | TLC | F | 6 | U | 12230 | – | L | | TODC | F | 2 | U | 12090 | – | L,Y 10405 | X | 2.3 | M | 6 | U | 12160* | – | L | | TLC | M | 6 | U | 12220 | – | L 10406 | X | 2.3 | F | 6 | U | 12170 | – | L | | TLC | F | 6 | U | 12230 | – | L 10407 | X | TLC | M | 12 | U | 12220 | – | L 10408 | X | TLC | F | 12 | U | 12230 | – | L 10410 | X | 6.3 | M | 3 | U | 12050 | – | Y | w/ Clamp 10411 | X | 6.3 | M | 2 | U | 12050 | – | Y | w/ Clamp | | TODC | M | 6 | U | 12080 | – | L,Y 10412 | X | 6.3 | M | 2 | S | – | – | – | w/ Clamp 10413 | X | 2.3 | M | 18 | U | 12160* | – | L 10414 | O | 2.3 | F | 6 | U | 12170 | – | L 10415 | X | 2.3 | M | 10 | U | 12160* | – | L | | 6.3 | M | 2 | U | 12050 | – | Y 10416 | X | 2.3 | M | 6 | U | – | – | – | PCB Wire Harness Repair Manual (RM1022E) 325
