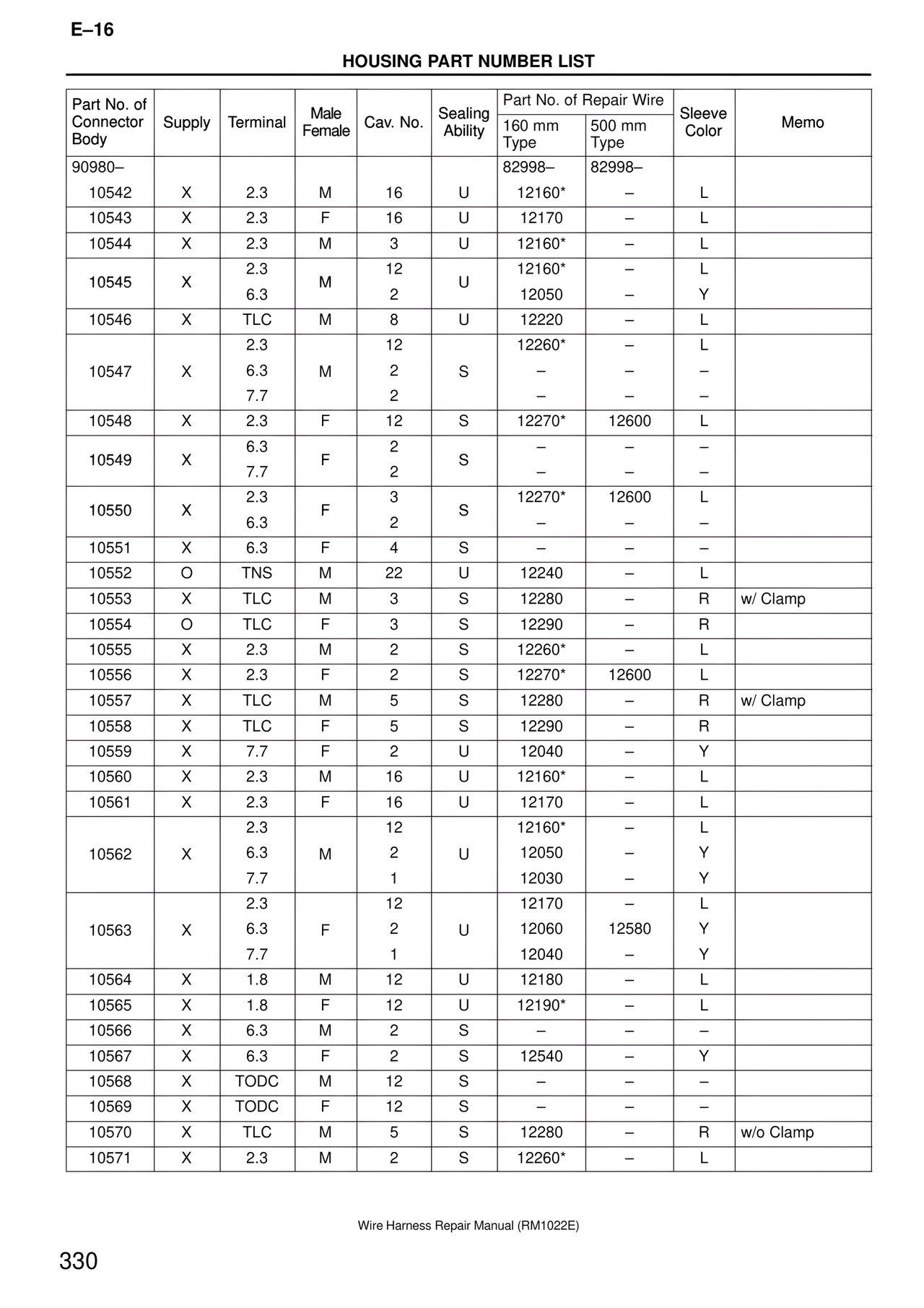

E–16 HOUSING PART NUMBER LIST Part No. of Connector Body | Supply | Terminal | Male Female | Cav. No. | Sealing Ability | Part No. of Repair Wire 160 mm Type | Part No. of Repair Wire 500 mm Type | Sleeve Color | Memo 90980– 82998– 82998– 10542 | X | 2.3 | M | 16 | U | 12160* | – | L 10543 | X | 2.3 | F | 16 | U | 12170 | – | L 10544 | X | 2.3 | M | 3 | U | 12160* | – | L 10545 | X | 2.3 | M | 12 | U | 12160* | – | L | | 6.3 | | 2 | | 12050 | – | Y 10546 | X | TLC | M | 8 | U | 12220 | – | L 10547 | X | 2.3 | M | 12 | S | 12260* | – | L | | 6.3 | | 2 | | – | – | – | | 7.7 | | 2 | | – | – | – 10548 | X | 2.3 | F | 12 | S | 12270* | 12600 | L 10549 | X | 6.3 | F | 2 | S | – | – | – | | 7.7 | | 2 | | – | – | – 10550 | X | 2.3 | F | 3 | S | 12270* | 12600 | L | | 6.3 | | 2 | | – | – | – 10551 | X | 6.3 | F | 4 | S | – | – | – 10552 | O | TNS | M | 22 | U | 12240 | – | L 10553 | X | TLC | M | 3 | S | 12280 | – | R | w/ Clamp 10554 | O | TLC | F | 3 | S | 12290 | – | R 10555 | X | 2.3 | M | 2 | S | 12260* | – | L 10556 | X | 2.3 | F | 2 | S | 12270* | 12600 | L 10557 | X | TLC | M | 5 | S | 12280 | – | R | w/ Clamp 10558 | X | TLC | F | 5 | S | 12290 | – | R 10559 | X | 7.7 | F | 2 | U | 12040 | – | Y 10560 | X | 2.3 | M | 16 | U | 12160* | – | L 10561 | X | 2.3 | F | 16 | U | 12170 | – | L 10562 | X | 2.3 | M | 12 | U | 12160* | – | L | | 6.3 | | 2 | | 12050 | – | Y | | 7.7 | | 1 | | 12030 | – | Y 10563 | X | 2.3 | F | 12 | U | 12170 | – | L | | 6.3 | | 2 | | 12060 | 12580 | Y | | 7.7 | | 1 | | 12040 | – | Y 10564 | X | 1.8 | M | 12 | U | 12180 | – | L 10565 | X | 1.8 | F | 12 | U | 12190* | – | L 10566 | X | 6.3 | M | 2 | S | – | – | – 10567 | X | 6.3 | F | 2 | S | 12540 | – | Y 10568 | X | TODC | M | 12 | S | – | – | – 10569 | X | TODC | F | 12 | S | – | – | – 10570 | X | TLC | M | 5 | S | 12280 | – | R | w/o Clamp 10571 | X | 2.3 | M | 2 | S | 12260* | – | L Wire Harness Repair Manual (RM1022E) 330
