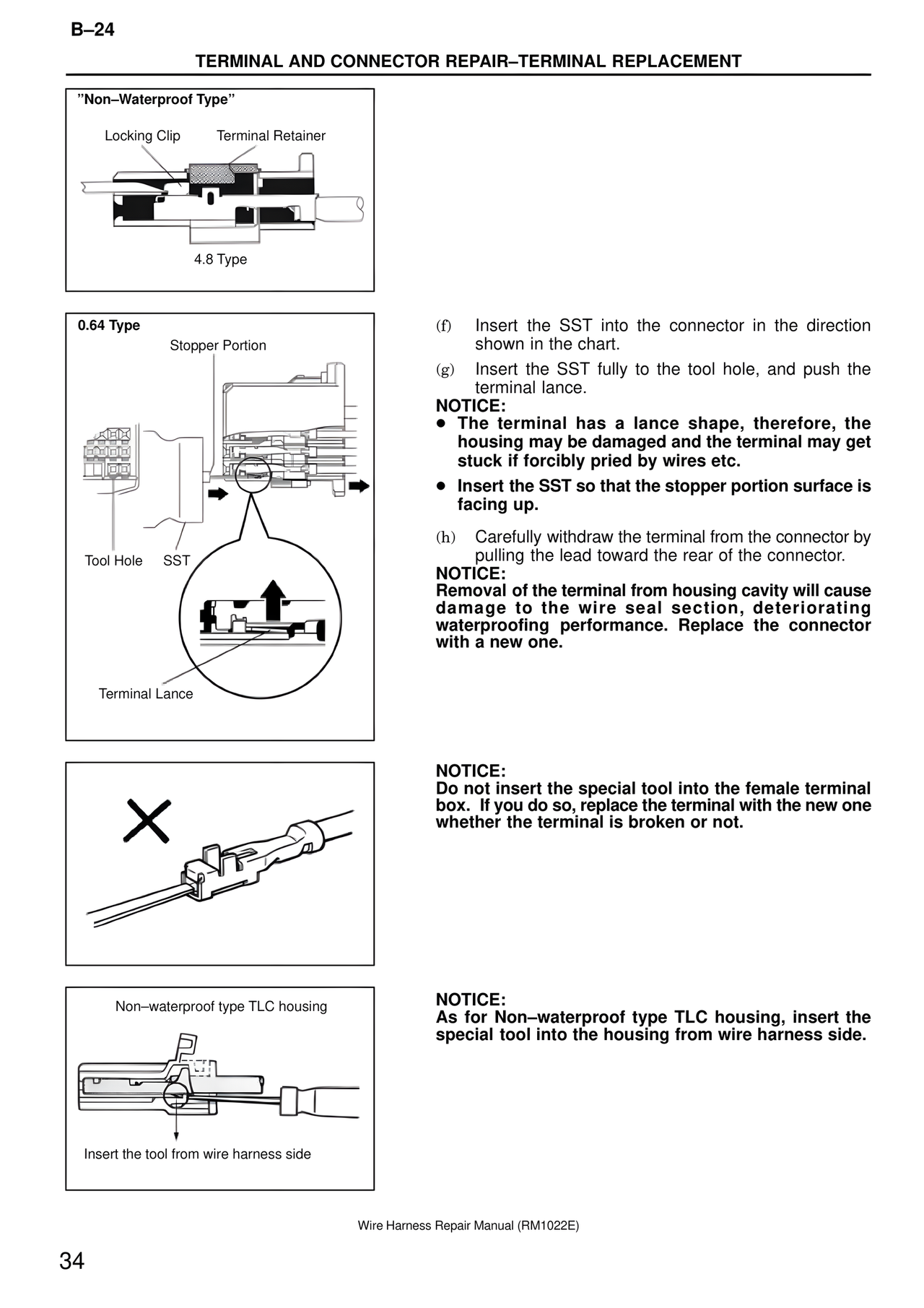

B–24 TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT "Non–Waterproof Type" Locking Clip Terminal Retainer 4.8 Type 0.64 Type Stopper Portion Tool Hole SST Terminal Lance (f) Insert the SST into the connector in the direction shown in the chart. (g) Insert the SST fully to the tool hole, and push the terminal lance. NOTICE: ● The terminal has a lance shape, therefore, the housing may be damaged and the terminal may get stuck if forcibly pried by wires etc. ● Insert the SST so that the stopper portion surface is facing up. (h) Carefully withdraw the terminal from the connector by pulling the lead toward the rear of the connector. NOTICE: Removal of the terminal from housing cavity will cause damage to the wire seal section, deteriorating waterproofing performance. Replace the connector with a new one. NOTICE: Do not insert the special tool into the female terminal box. If you do so, replace the terminal with the new one whether the terminal is broken or not. Non–waterproof type TLC housing Insert the tool from wire harness side NOTICE: As for Non–waterproof type TLC housing, insert the special tool into the housing from wire harness side. Wire Harness Repair Manual (RM1022E) 34
