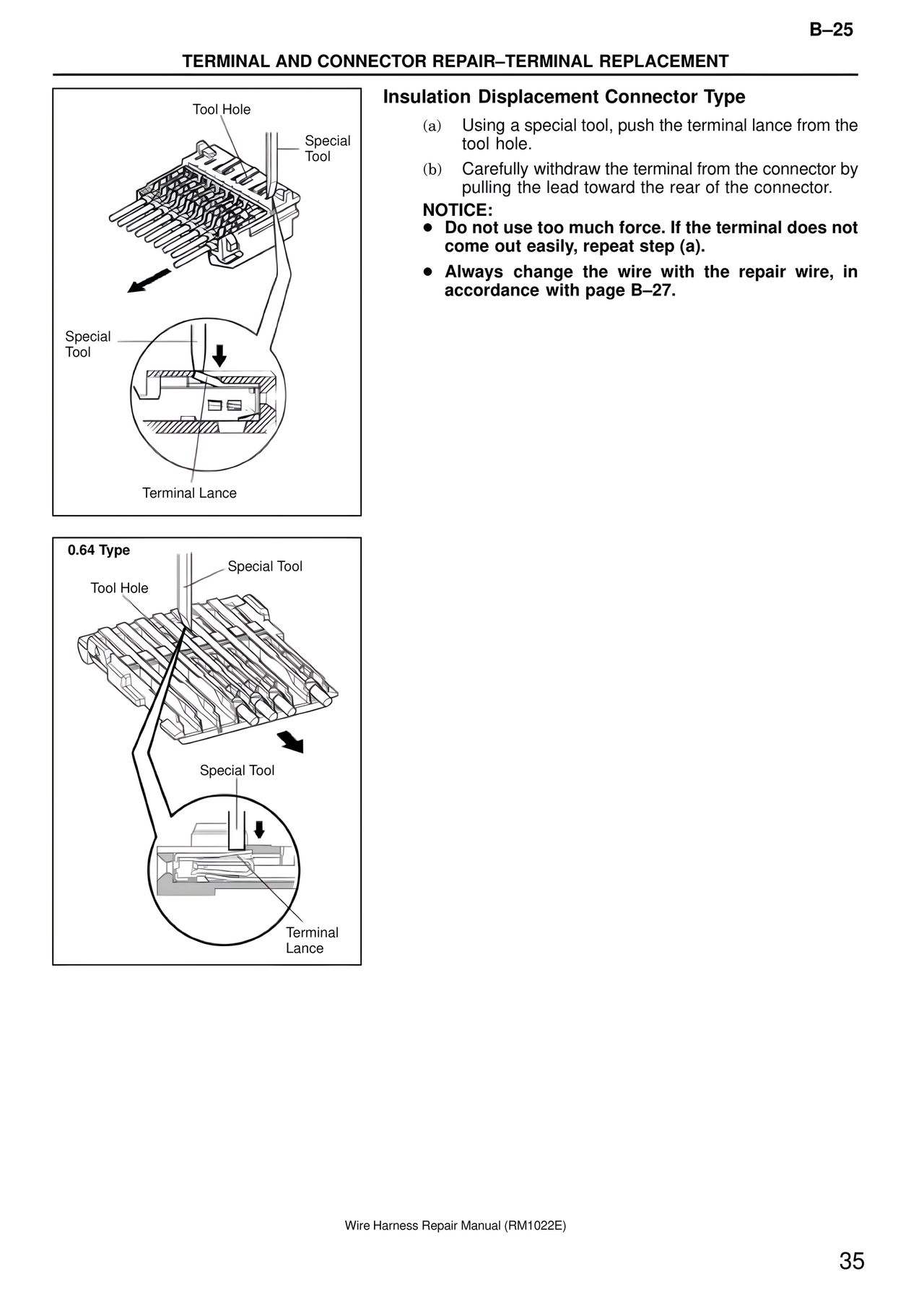

B–25 TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT Tool Hole Special Tool Special Tool Terminal Lance 0.64 Type Special Tool Tool Hole Special Tool Terminal Lance Insulation Displacement Connector Type (a) Using a special tool, push the terminal lance from the tool hole. (b) Carefully withdraw the terminal from the connector by pulling the lead toward the rear of the connector. NOTICE: ● Do not use too much force. If the terminal does not come out easily, repeat step (a). ● Always change the wire with the repair wire, in accordance with page B–27. Wire Harness Repair Manual (RM1022E) 35
