B–26
TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT

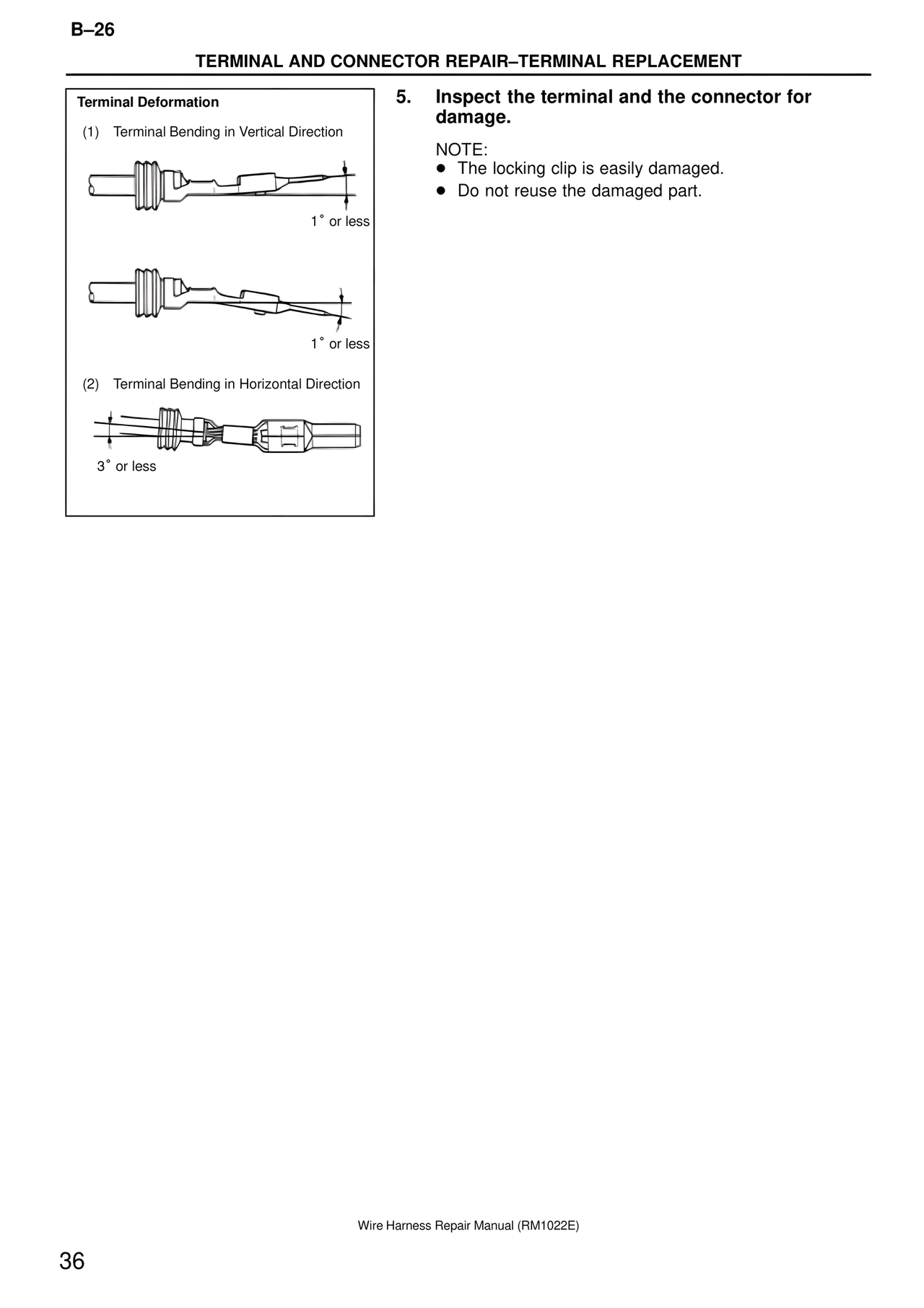

Terminal Deformation
(1) Terminal Bending in Vertical Direction
1˚ or less
1˚ or less
(2) Terminal Bending in Horizontal Direction
3˚ or less
5. Inspect the terminal and the connector for damage.
NOTE:
• The locking clip is easily damaged.
• Do not reuse the damaged part.
Wire Harness Repair Manual (RM1022E)
36
